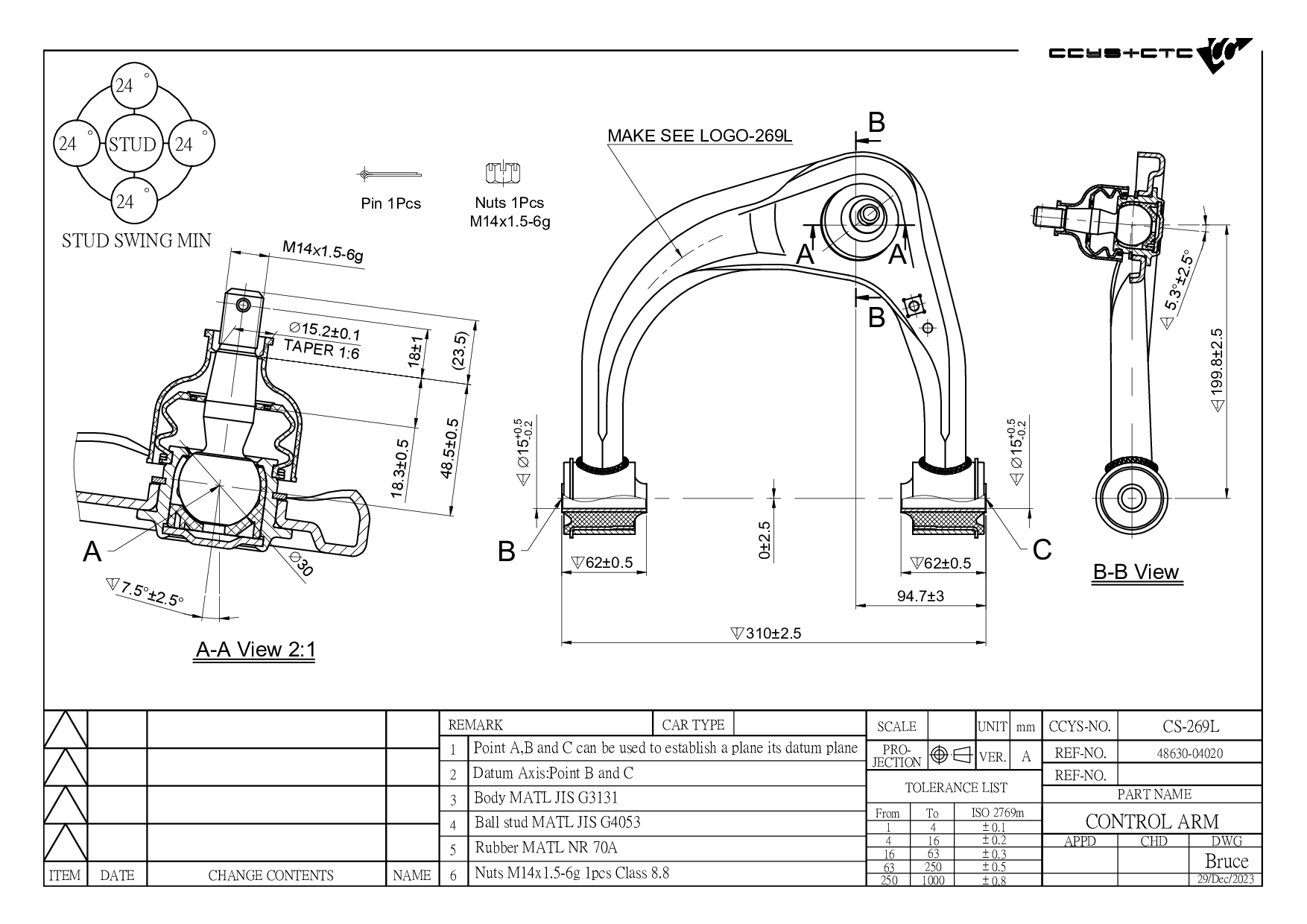

CS-269L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 48630-04020 / 48630-04021 / 48630-0K040 / 48630-0K050 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02084 | FRONT UPPER ARM INNER | 48610-04020 48610-04021 48610-0K040 48610-0K050 48630-04020 48630-04021 48630-0K040 48630-0K050 |
|
 |
CBH02085 | FRONT LOWER ARM | 48068-0K090 48069-0K090 |
|
|
CBH02086 | FRONT LOWER ARM | 48068-0K090 48069-0K090 |
|
|
CBJ02024 | FRONT LOWER LH/RH | 43330-09295 43330-09490 43330-09510 48068-04030 48068-04040 48068-04060 48068-0K090 48069-04030 48069-04040 48069-04060 48069-0K090 |
|
 |
CS-269L | FRONT UPPER LH | 48630-04020 48630-04021 48630-0K040 48630-0K050 |
|
 |
CS-269R | FRONT UPPER RH | 48610-04020 48610-04021 48610-0K040 48610-0K050 |
|
 |
CS-271L | FRONT LOWER LH | 48069-0K090 |
|
 |
CS-271R | FRONT LOWER RH | 48068-0K090 |
|
 |
CSL02070L | FRONT LH (A= 140MM) | 48810-04010 48810-0K010 48810-0K020 48810-60040 |
|
 |
CSL02070R | FRONT RH (A= 140MM) | 48820-04020 48820-0K030 48820-0K040 48820-60050 |
| Model (Year) |
|---|
|
FORTUNER (_N15_, _N16_) FORTUNER (_N5_, _N6_) HILUX VI Pickup (_N1_) | TACOMA | HILUX MIGHTY X / HILUX TIGER HILUX VII Pickup (_N1_, _N2_, _N3_) | HILUX VIGO HILUX VII Platform/Chassis (_N1_, _N2_) HILUX VIII Pickup (_N1_) | HILUX REVO HILUX VIII Platform/Chassis (_N1_) | HILUX REVO SW4 (_N15_, _N16_) TACOMA Pickup (_N2_) |
