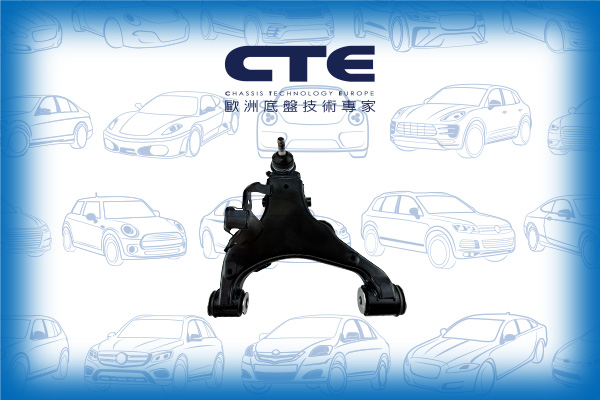

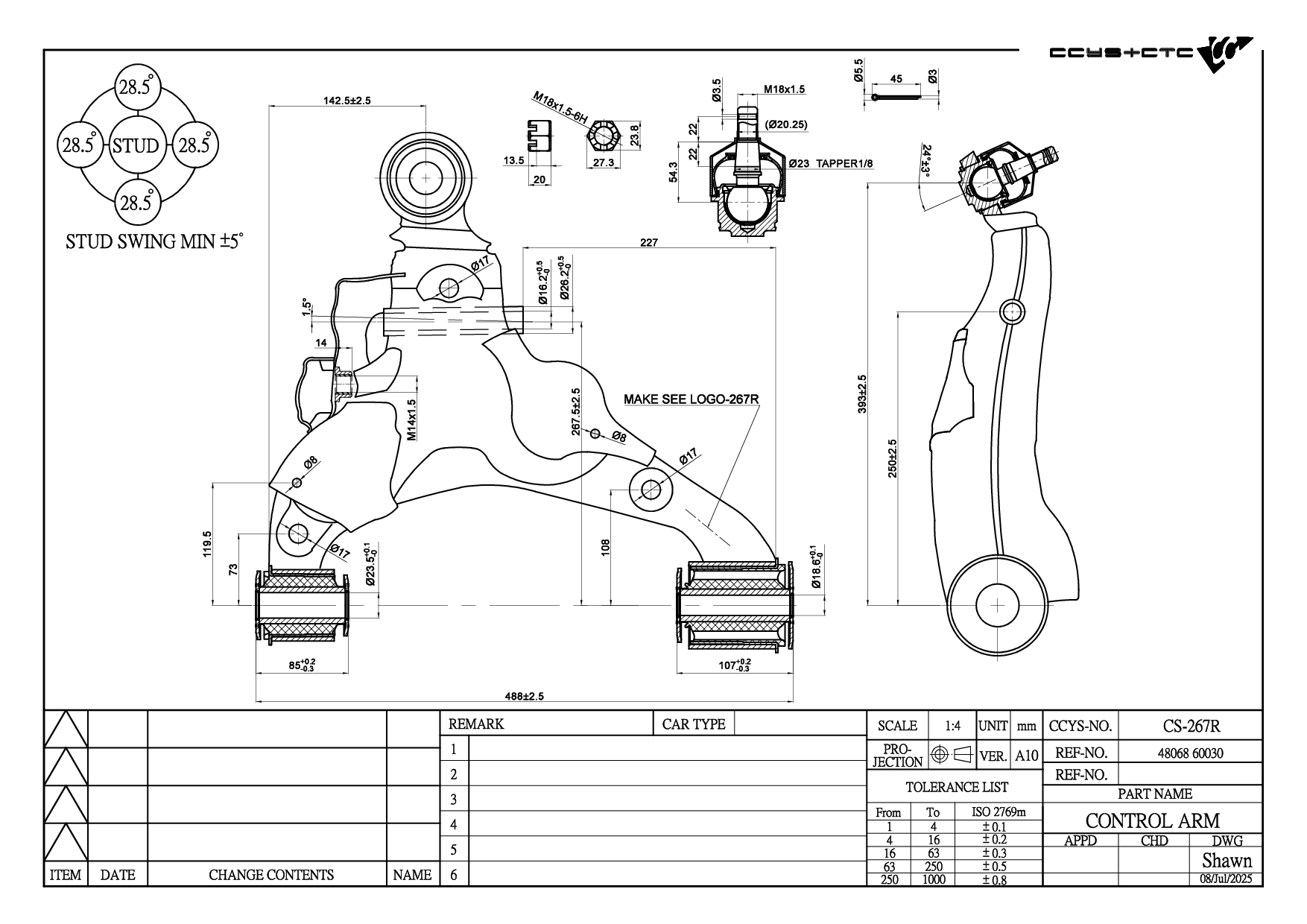

CS-267R
| Designation | Control Arm |
| Position | FRONT AXLE RH |
| OE No. | 48068-09090 / 48068-0C020 / 48068-60030 |
| Length | 488 mm |
| Width | 466 mm |
| Height | 135 mm |
| Net Weight | 12.75 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02099 | FRONT LOWER ARM INNER | 48655-60040 |
|
|
CBH02100 | FRONT LOWER ARM INNER | 48654-60040 |
|
 |

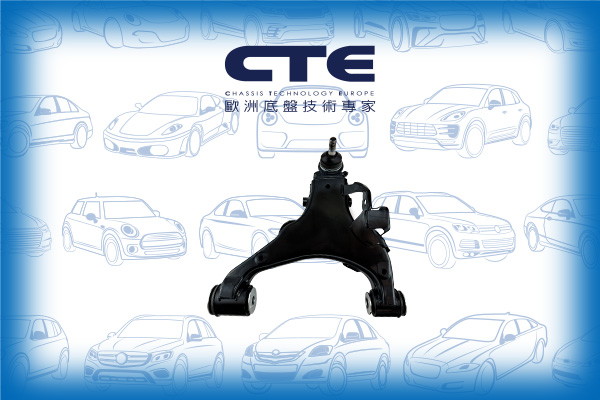

CS-267L | FRONT AXLE LH | 48069-09090 48069-0C020 48069-60030 |
|
 |
CS-267R | FRONT AXLE RH | 48068-09090 48068-0C020 48068-60030 |
|
|
CSL02074 | REAR AXLE LEFT/RIGHT | 48802-60100 |
| Model (Year) |
|---|
|
LX (_J2_) |
| Model (Year) |
|---|
|
LAND CRUISER 200 (_J2_) |
