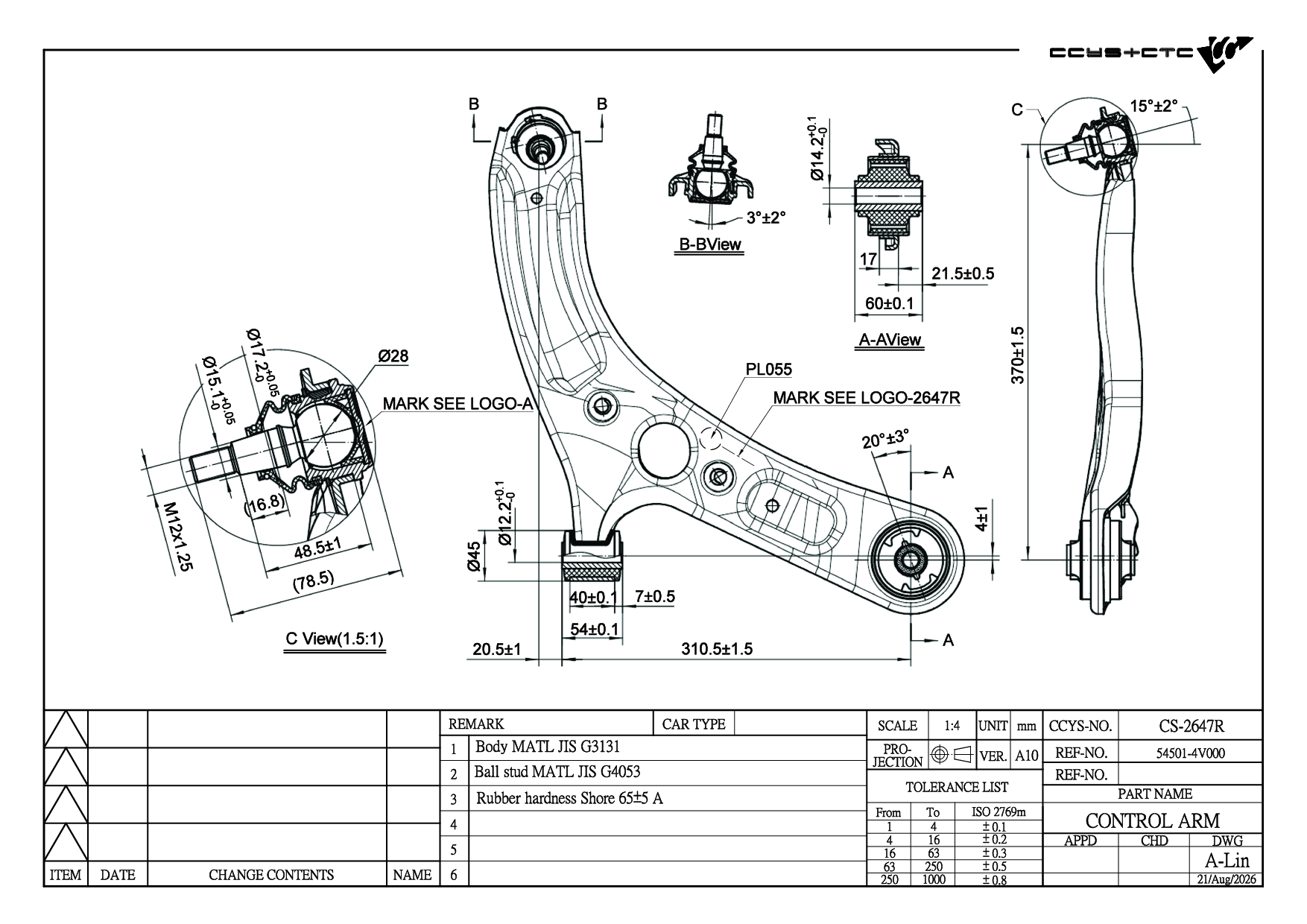

CS-2647R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54501-3X000 / 54501-4V000 / 54501-A7000 / 54501-A7100 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CRE26016 | FRONT AXLE LH/ RH | 57724-1M000 |
|
 |
CRE29006 | FRONT AXLE LH/ RH | 56540-A7000 |
|
 |
CS-2644L | FRONT LOWER LH | 54500-0Q000 |
|
 |
CS-2644R | FRONT LOWER RH | 54501-0Q000 |
|
 |
CS-2647L | FRONT LOWER LH | 54500-3X000 54500-4V000 54500-A7000 54500-A7100 |
|
 |
CS-2647R | FRONT LOWER RH | 54501-3X000 54501-4V000 54501-A7000 54501-A7100 |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
| Model (Year) |
|---|
|
CERATO III Saloon (YD) | FORTE | K3 CERATO KOUP III (YD) | K3 KOUP | FORTE5 |
