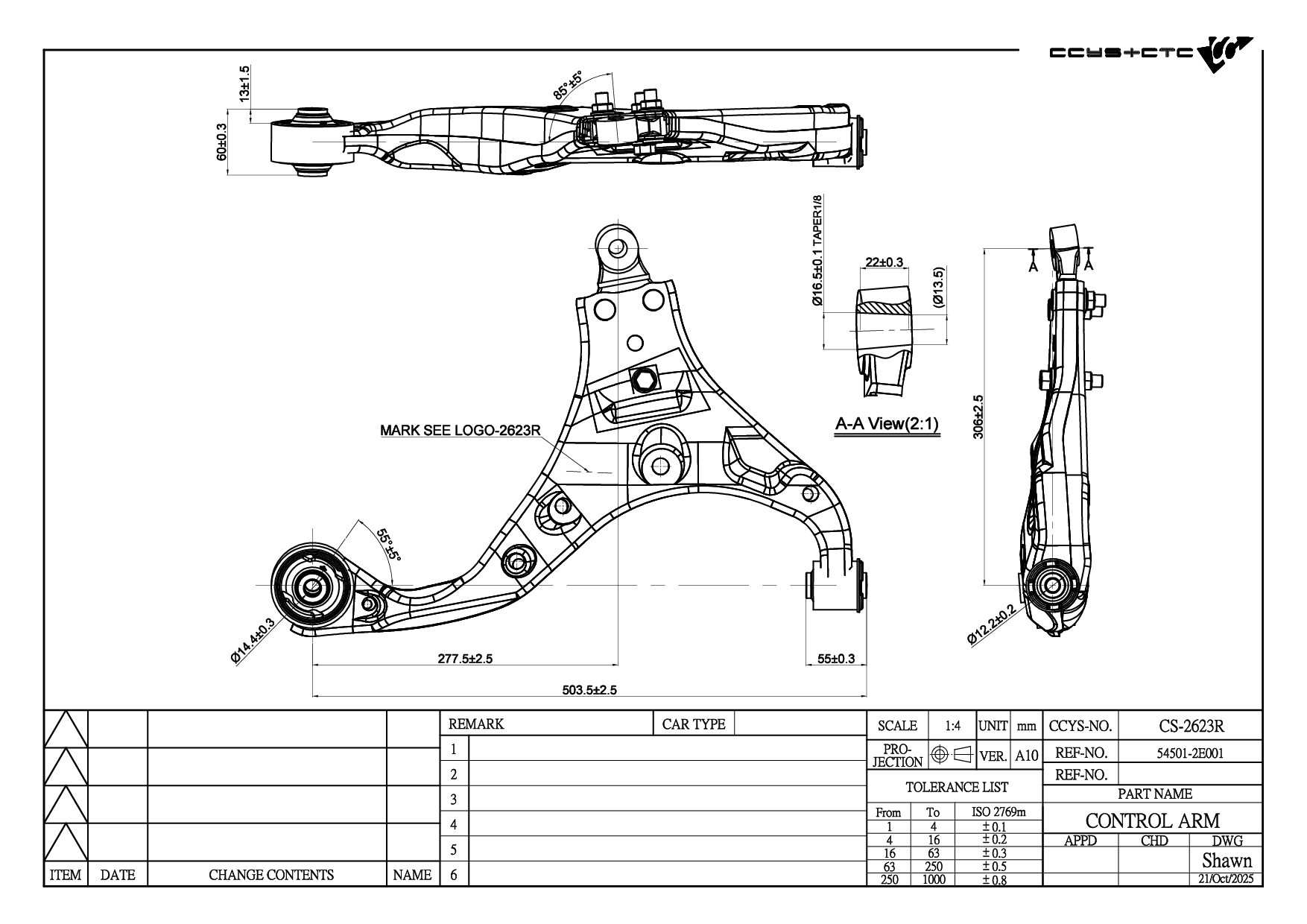

CS-2623R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54501-1F000 / 54501-2E000 / 54501-2E001 / 54501-2E010 / 54501-2E100 |
| Length | 512 mm |
| Width | 324 mm |
| Height | 60 mm |
| Net Weight | 4.74 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH26023 | FRONT LOWER ARM REAR | ||
 |
CBH26024 | FRONT LOWER ARM INNER | ||
 |
CS-2616L | FRONT LOWER LH | 54500-2E031 |
|
 |
CS-2616R | FRONT LOWER RH | 54501-2E031 |
|
 |
CS-2623L | FRONT LOWER LH | 54500-1F000 54500-2E000 54500-2E001 54500-2E010 54500-2E100 |
|
 |
CS-2623R | FRONT LOWER RH | 54501-1F000 54501-2E000 54501-2E001 54501-2E010 54501-2E100 |
|
 |
CSL26010 | FRONT (A= 238MM) | 54830-1F000 54830-2E000 54830-2E100 54830-2E200 |
|
 |
CSL26011 | REAR (A= 219.3MM) | 55530-1F000 55530-2E000 55530-2E100 55530-2E200 |
| Model (Year) |
|---|
|
TUCSON (JM) |
| Model (Year) |
|---|
|
SPORTAGE II (JE_, KM_) |
