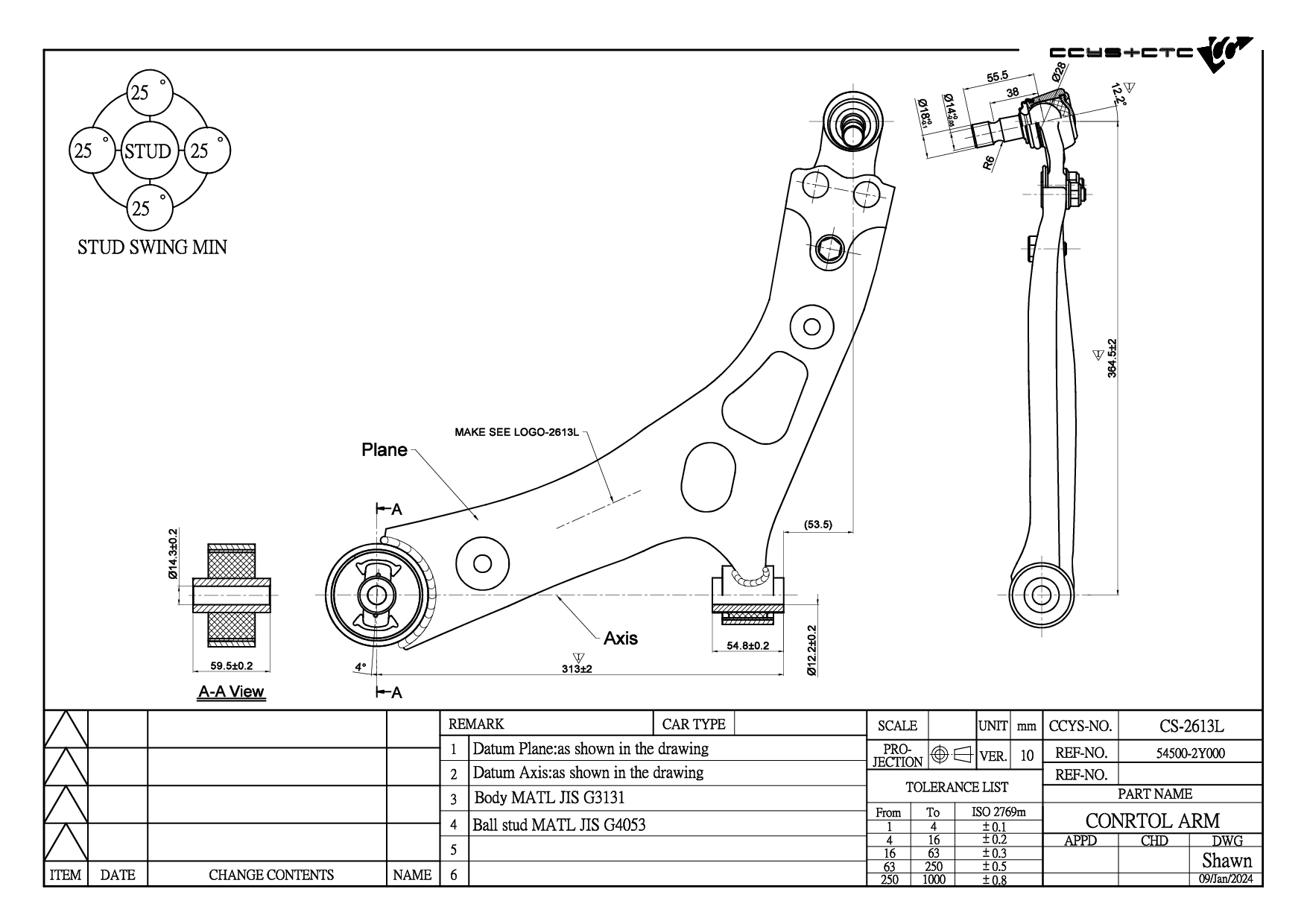

CS-2613L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 54500-2S000 / 54500-2S500 / 54500-2Y000 / 54500-2Y001 / 54500-2Y002 / 54500-2Y500 / 54500-3W102 / 54500-3W500 |
| Length | 438 mm |
| Width | 415 mm |
| Height | 59 mm |
| Net Weight | 4.3 kg |
Hyundai Tucson (JM) , ix35 (LM
EL
ELH) Construction year to 08.2013, Kia Sportage (SL) yr to 01.2014, Vin code KNA**
U5Y**
EL
ELH) Construction year to 08.2013, Kia Sportage (SL) yr to 01.2014, Vin code KNA**
U5Y**
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH26009 | FRONT LOWER ARM REAR | 54584-2S000 54584-2S100 54584-3S000 |
|
 |
CBH26010 | FRONT LOWER ARM INNER | 2904010001B111 54551-2S000 54551-2Y000 |
|
 |
CS-2613L | FRONT LOWER LH | 54500-2S000 54500-2S500 54500-2Y000 54500-2Y001 54500-2Y002 54500-2Y500 54500-3W102 54500-3W500 |
|
 |
CS-2613R | FRONT LOWER RH | 54501-2S000 54501-2S500 54501-2Y000 54501-2Y001 54501-2Y002 54501-2Y500 54501-3W102 54501-3W500 |
| Model (Year) |
|---|
|
ix35 (LM, EL, ELH) ix35 (LM, EL, ELH) | TUCSON ix35 (LM, EL, ELH) | TUCSON | TUCSON IX35 ix35 Van TUCSON (JM) |
| Model (Year) |
|---|
|
SPORTAGE III (SL) |
