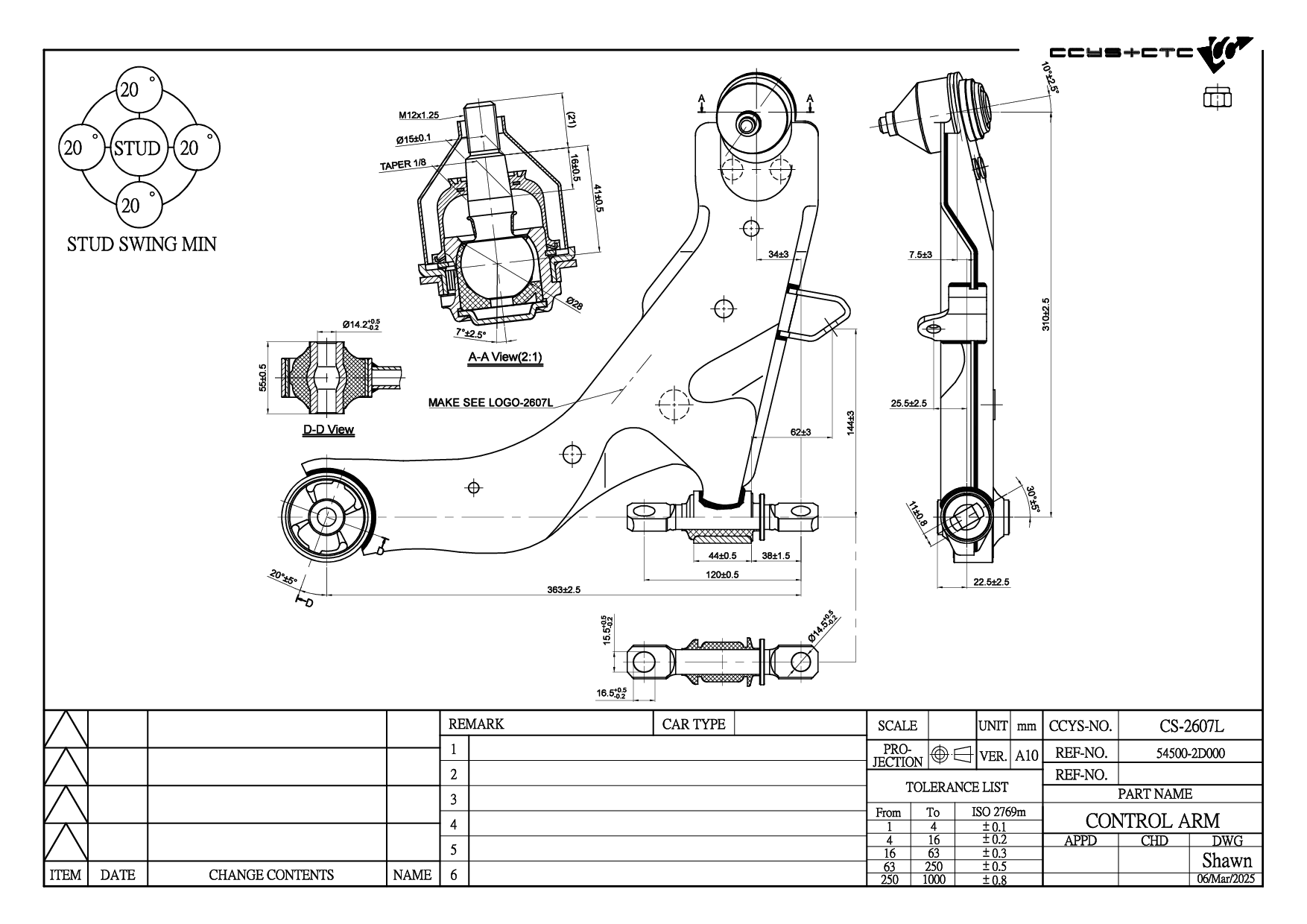

CS-2607L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 54500-08000 / 54500-08100 / 54500-2D000 / 54500-2D001 / 54500-2D002 / 54500-2D500 / 54500-2D501 |
| Length | 436 mm |
| Width | 375 mm |
| Height | 102 mm |
| Net Weight | 3.69 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH26013 | FRONT LOWER ARM REAR | ||
 |
CBH26014 | FRONT LOWER ARM INNER | ||
 |
CBJ05010 | FRONT LOWER LH/ RH | 4013A033 4013A034 4013A175 AW 311699 MB 133618 MB 241883 MB 349963 MB 349964 MB 518041 MB 518042 MB 518205 MB 518712 MB 518713 MB 518960 MB 518961 MB 573093 MB 573094 MB 573098 MB 860817 MB 860818 MB 891787 MB 891788 MN 133617 |
|
 |
CBJ26003 | FRONT LOWER LH/RH | 54503-22000 54503-22A00 54503-25A00 54503-31600 54503-38A00 54520-31600 54530-0U000 54530-25000 54530-25A00 54530-2F000 54530-31600 |
|
 |
CS-2607L | FRONT LOWER LH | 54500-08000 54500-08100 54500-2D000 54500-2D001 54500-2D002 54500-2D500 54500-2D501 |
|
 |
CS-2607R | FRONT LOWER RH | 54501-08000 54501-08100 54501-2D000 54501-2D001 54501-2D002 54501-2D500 54501-2D501 |
|
 |
CS-2617L | FRONT LOWER LH | 54500-2D002AS |
|
 |
CS-2617R | FRONT LOWER RH | 54501-2D002AS |
|
 |
CSL26003 | FRONT (A= 50MM) | 54830-2D000 54830-34000 54830-34500 |
|
 |
CTE26001 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820-22000 56820-25000 56820-28500 56820-28520 56820-29500 56820-2F000 56820-37000 56820-37010 56820-3B000 57780-3B000 |
| Model (Year) |
|---|
|
ELANTRA III (XD) | AVANTE ELANTRA III Saloon (XD) | AVANTE |
| Model (Year) |
|---|
|
ELANTRA Saloon (XD) |
