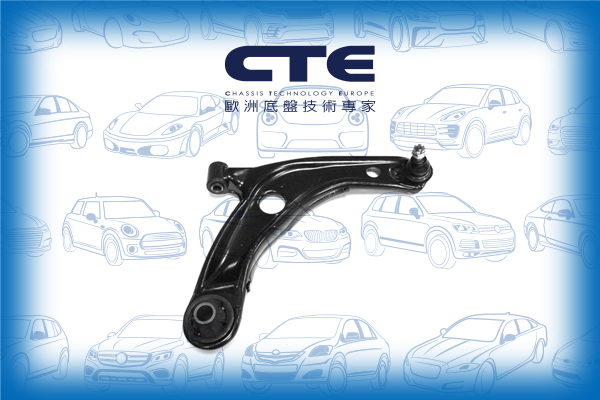

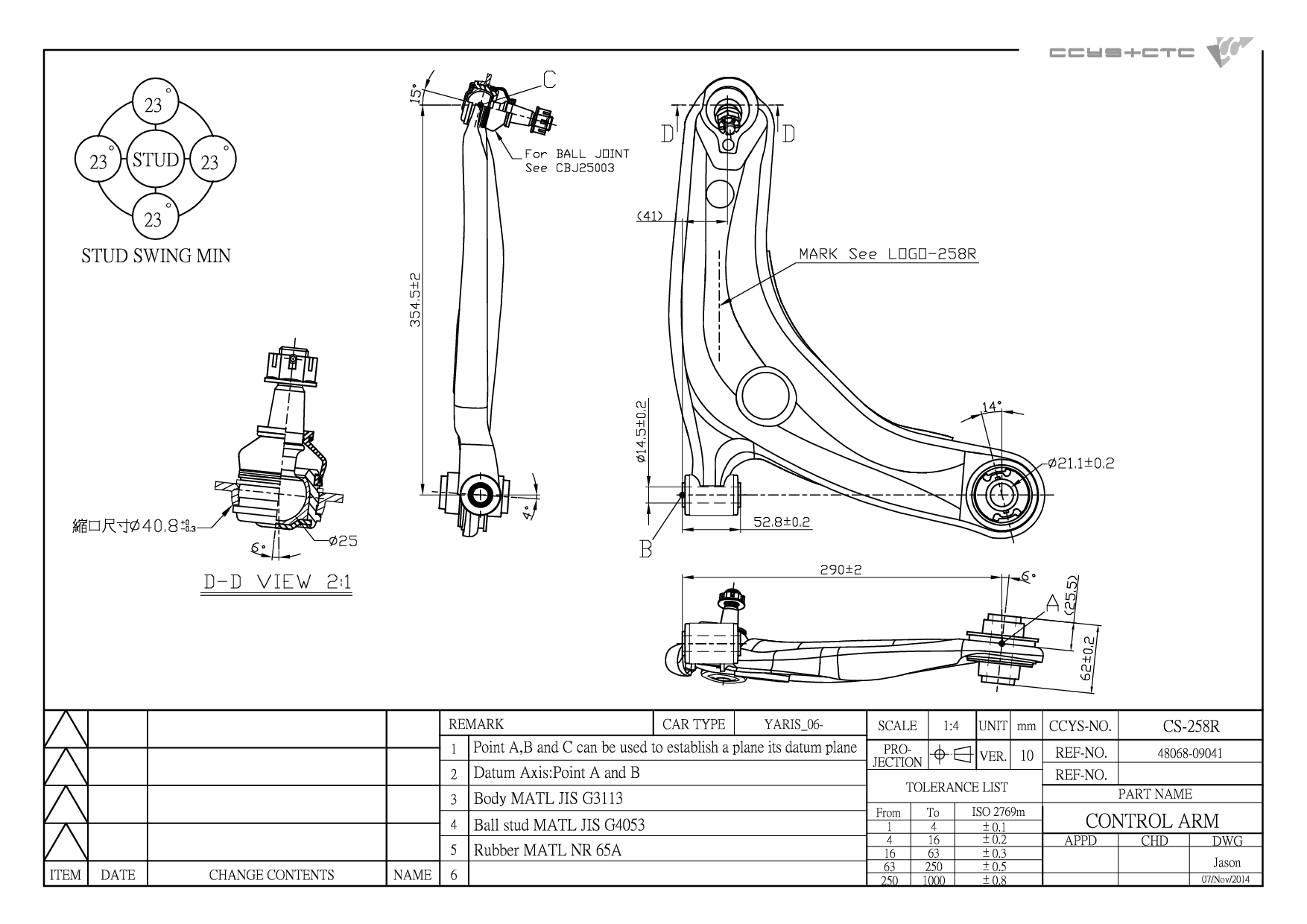

CS-258R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-09040 / 48068-09041 / 48068-09081 / 48068-09150 / 48068-59095 / 48068-59135 / 48068-59145 / 48068-W9005 |
| Length | 421 mm |
| Width | 324 mm |
| Height | 104 mm |
| Net Weight | 3.25 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

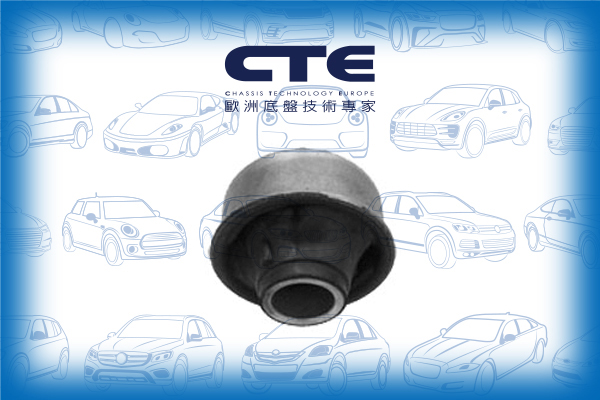

CBH02049 | FRONT LOWER ARM REAR | 48068-09040 48068-09041 48068-09150 48068-59095 48068-59135 48068-59145 48069-09040 48069-09041 48069-09140 48069-59095 48069-59125 48069-59135 |
|
 |

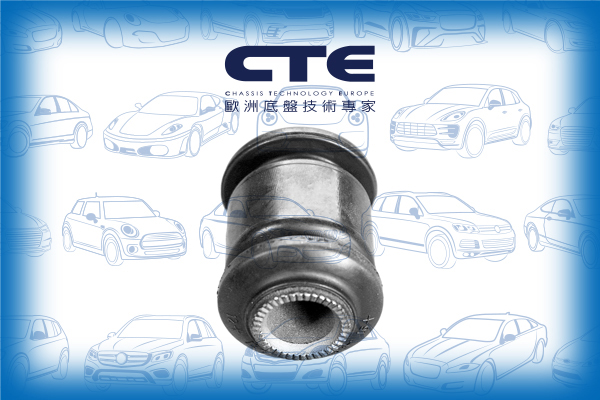

CBH02050 | FRONT LOWER ARM INNER | 48654-0D030 48654-0D060 48654-52050 48654-74011 |
|
 |

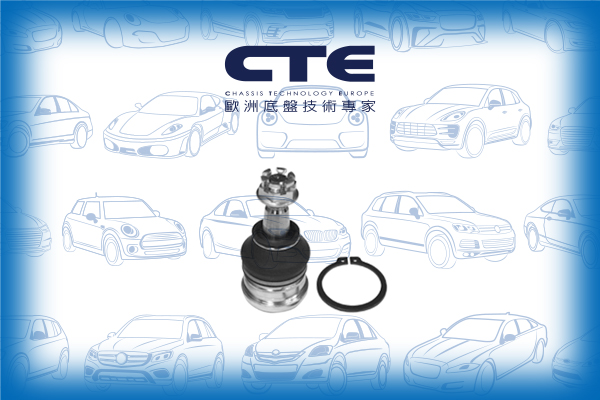

CBJ25003 | FRONT LOWER LH/ RH | 48068-09040 48068-09041 48068-09150 48068-59095 48068-59135 48068-59145 48069-09040 48069-09041 48069-09140 48069-59095 48069-59125 48069-59135 |
|
 |

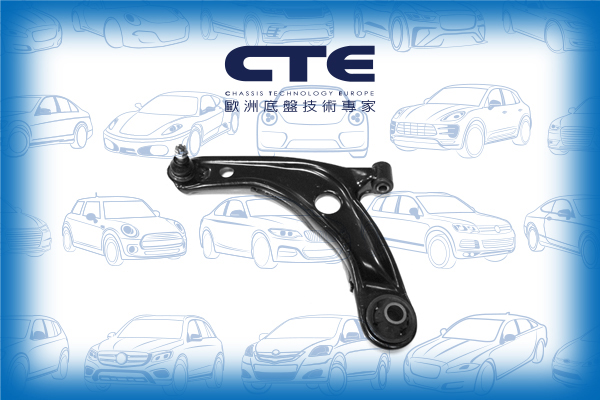

CS-258L | FRONT LOWER LH | 48069-09040 48069-09041 48069-09071 48069-09140 48069-59095 48069-59125 48069-59135 48069-W9005 |
|
 |
CS-258R | FRONT LOWER RH | 48068-09040 48068-09041 48068-09081 48068-09150 48068-59095 48068-59135 48068-59145 48068-W9005 |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
|
 |

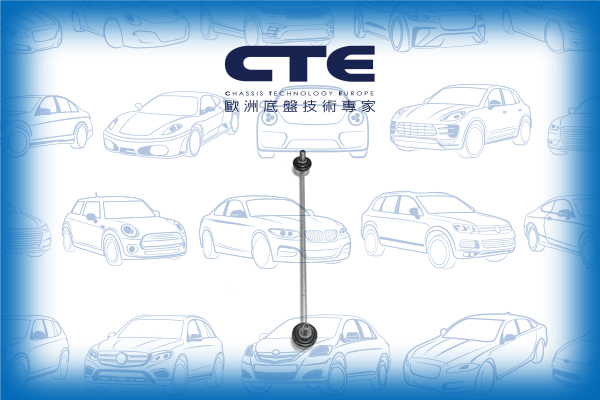

CSL02067 | FRONT (A= 360MM) | 48820-0D010 48820-0D020 48820-0D030 48820-0D080 48820-52030 48820-52030M 48820-52040 48820-52070 |
| Model (Year) |
|---|
|
CHARADE VIII |
| Model (Year) |
|---|
|
TREZIA |
| Model (Year) |
|---|
|
AQUA (_NHP1_) PRIUS C (NHP10_) RACTIS (_P10_) URBAN CRUISER (_P1_) | IST VERSO S (_P12_) | VERSO SPACE | RACTIS YARIS (_P13_) | YARIS/VITZ | VITZ YARIS (_P9_) | YARIS/VITZ | VITZ YARIS / VIOS Saloon (_P9_) | BELTA YARIS Hatchback Van (_P13_) |
