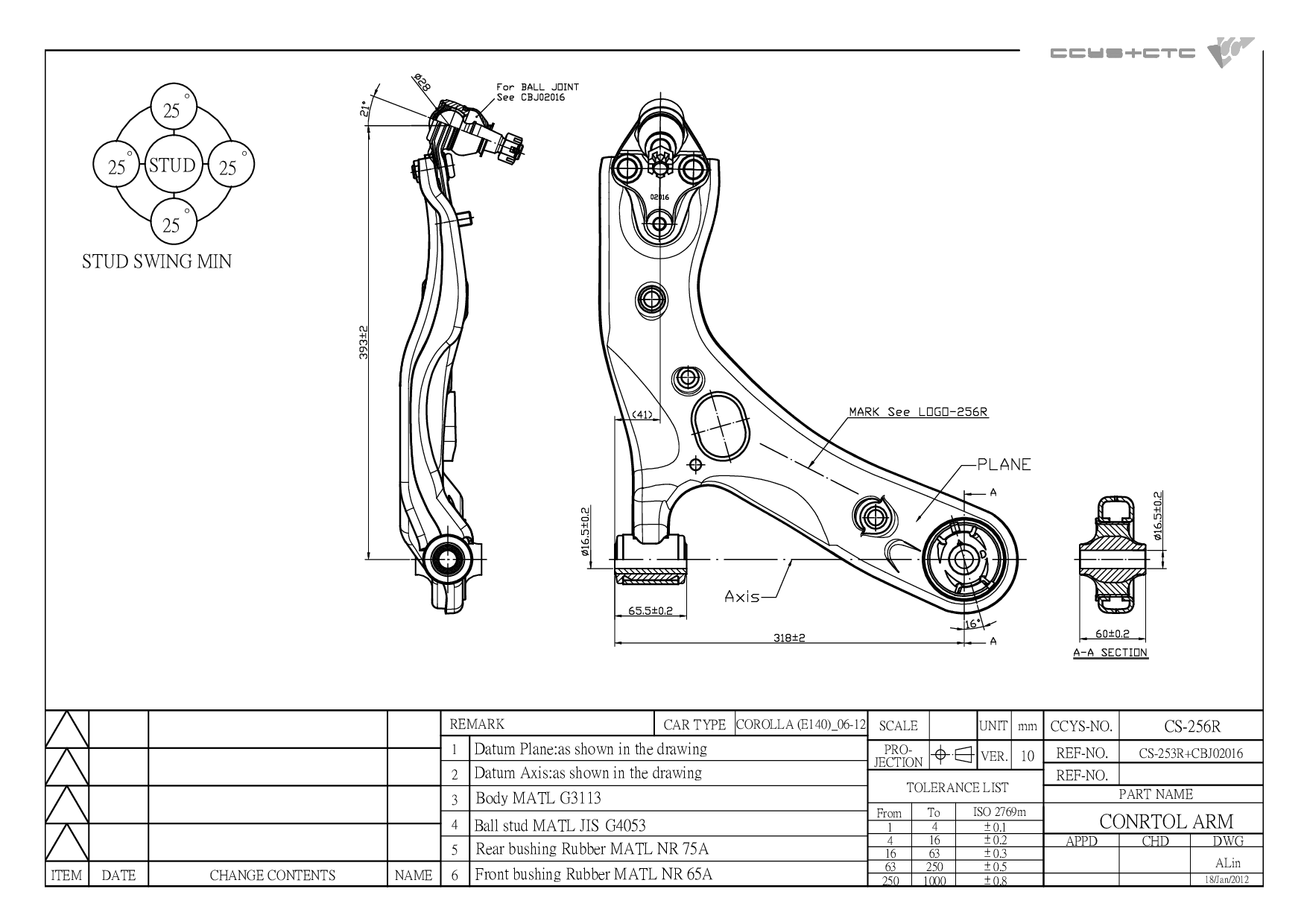

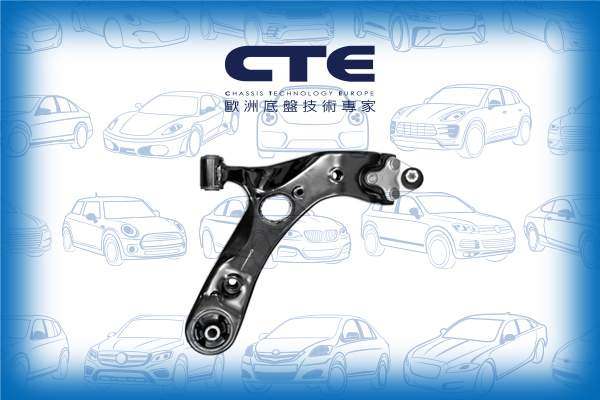

CS-256R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-02130 / 48068-02140 / 48068-05080 / 48068-0F030 / 48068-12300 / CS-253R+CBJ02016A |
| Length | 468 mm |
| Width | 378 mm |
| Height | 112 mm |
| Net Weight | 5.81 kg |
TOYOTA AURIS (E15) 1.4 D-4D (NDE150,NDE150R) (VIN) SB*, Hatchback Van (_E15_) 1.4 D-4D (NDE150) r (VIN) SB*
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

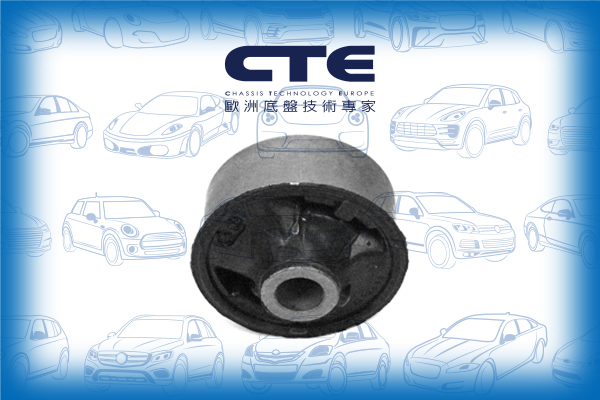

CBH02043 | FRONT LOWER ARM REAR | 48068-02130 48068-12300 48069-02130 48069-12300 |
|
 |
CBH02044 | FRONT LOWER ARM INNER | 48068-02130 48068-12300 48068-47050 48068-F4010 48069-02130 48069-12300 48069-47050 48069-F4010 48654-02040 48654-05060 48654-42030 48654-42040 48654-47030 48655-42050 |
|
 |
CBJ02016A | FRONT LOWER LH/RH | 43330-02111 43330-05040 43330-09630 43330-09631 43330-09720 43330-09770 43330-09A30 43330-09A40 43330-19245 43330-19255 43330-19275 43330-49095 43330-49195 43330-49215 |
|
 |

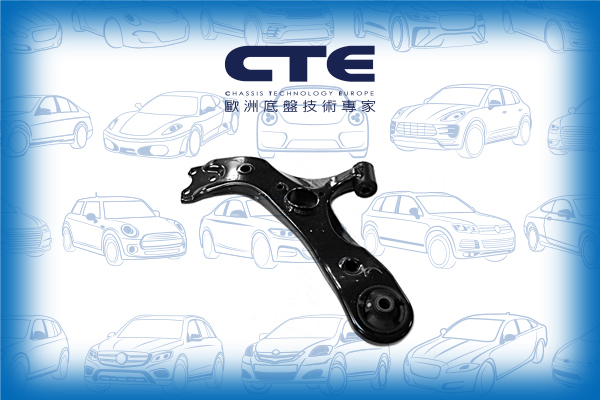

CS-253L | FRONT LOWER LH | 48069-02130 48069-02140 48069-05080 48069-0F030 48069-12300 |
|
 |

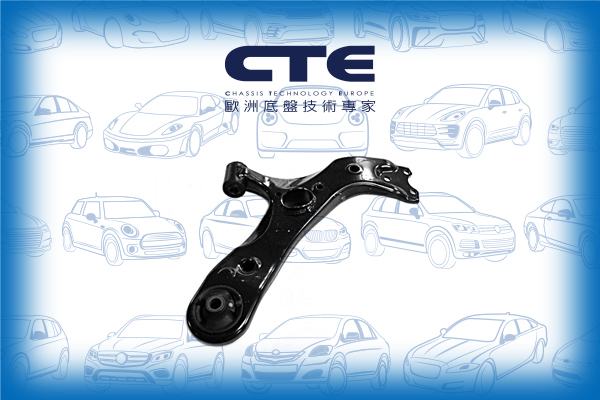

CS-253R | FRONT LOWER RH | 48068-02130 48068-02140 48068-05080 48068-0F030 48068-12300 |
|
 |

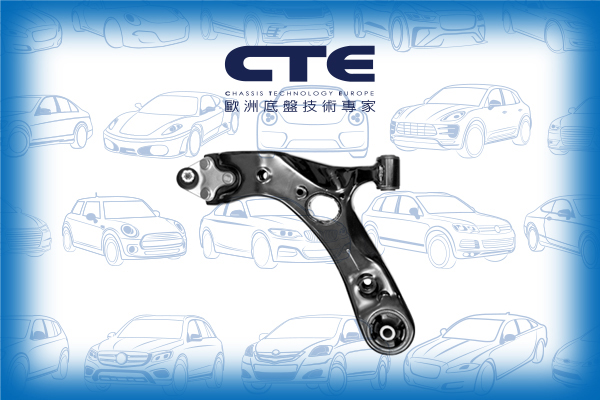

CS-256L | FRONT LOWER LH | 48069-02130 48069-02140 48069-05080 48069-0F030 48069-12300 CS-253L+CBJ02016A |
|
 |
CS-256R | FRONT LOWER RH | 48068-02130 48068-02140 48068-05080 48068-0F030 48068-12300 CS-253R+CBJ02016A |
|
 |
CSL02066 | FRONT (A= 360MM) | 48820-02070 48820-02080 48820-0R010 48820-42030 48820-47020 48820-47030 |
|
 |

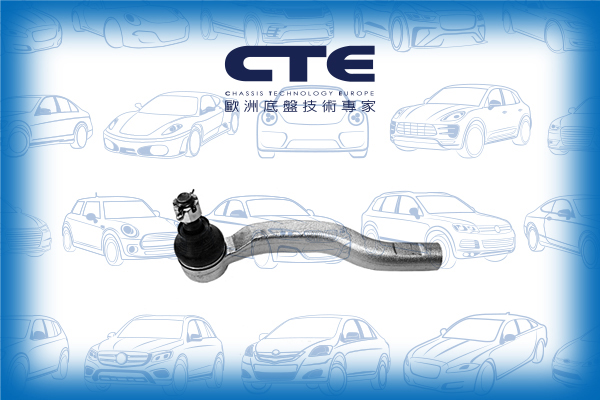

CTE02005L | FRONT AXLE LH (C= M15X1.5) | 45047-02050 45047-09270 45047-09570 45047-19205 45047-19215 |
|
 |

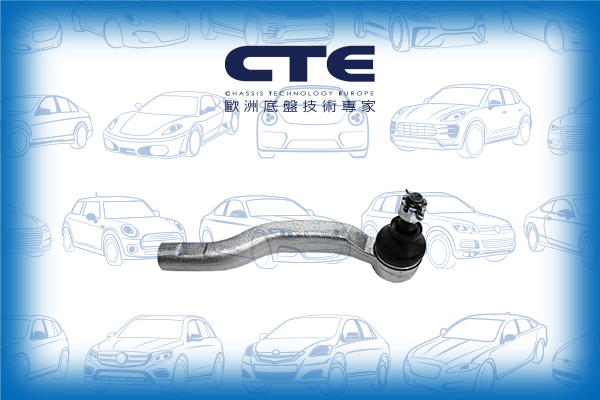

CTE02005R | FRONT AXLE RH (C= M15X1.5) | 45046-02080 45046-09570 45046-19405 45046-19415 |
| Model (Year) |
|---|
|
HS (ANF10) |
| Model (Year) |
|---|
|
AURIS (_E15_) | COROLLA | BLADE AURIS (_E18_) | COROLLA iM AURIS Estate (_E18_) AURIS Hatchback Van (_E15_) AURIS VAN Hatchback Van (_E18_) AVENSIS Estate (_T27_) AVENSIS Saloon (_T27_) COROLLA Saloon (_E15_) | COROLLA AXIO | COROLLA ALTIS | ALTIS COROLLA Saloon (_E18_, ZRE1_) | COROLLA ALTIS MIRAI (JPD1_) PRIUS PLUS (_W4_) | PRIUS ALPHA | GRAND PRIUS + | PRIUS V PRIUS PLUS VAN (_W4_) VERSO (_R2_) VERSO VAN (_R2_) |
