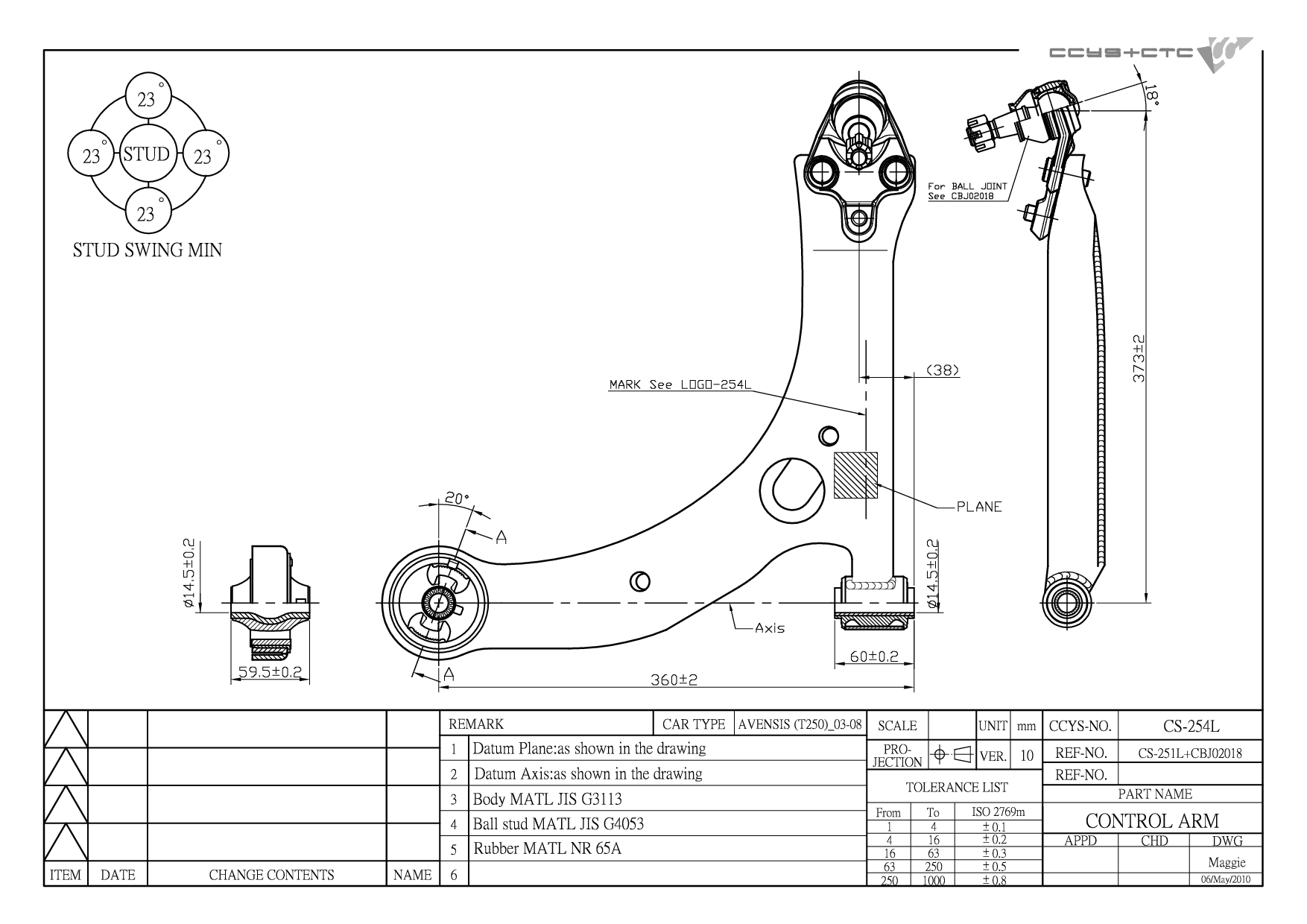

CS-254L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 48069-05070 / 48069-0F010 / CS-251L+CBJ02018A |
| Length | 438.8 mm |
| Width | 403.8 mm |
| Height | 104.6 mm |
| Net Weight | 4.22 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

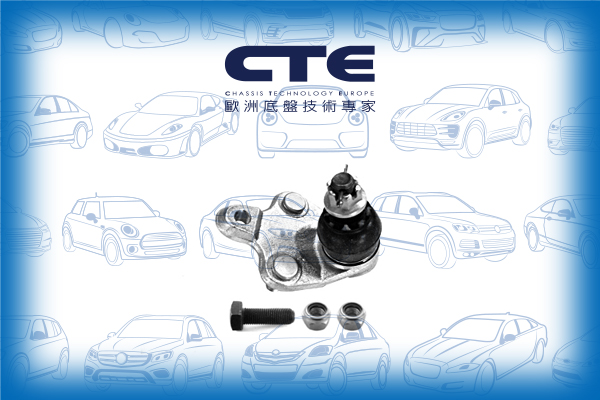

CBJ02018A | FRONT LOWER LH/ RH | 43330-05030 43330-09210 |
|
 |
CS-251L | FRONT LOWER LH | 48069-05070 48069-0F010 |
|
 |
CS-251R | FRONT LOWER RH | 48068-05070 48068-0F010 |
|
 |
CS-254L | FRONT LOWER LH | 48069-05070 48069-0F010 CS-251L+CBJ02018A |
|
 |
CS-254R | FRONT LOWER RH | 48068-05070 48068-0F010 CS-251R+CBJ02018A |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
|
 |

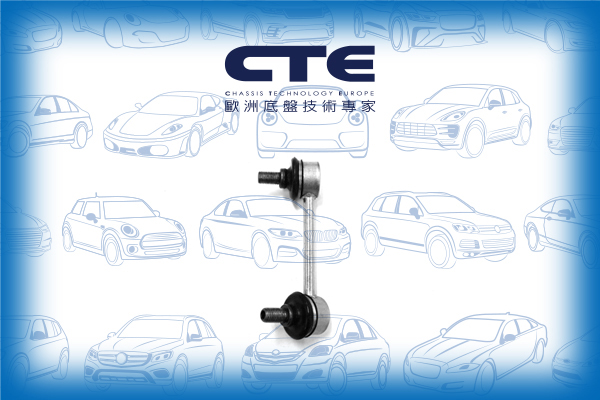

CSL02069L | REAR LH (A= 100MM) | 48840-21010 |
|
 |

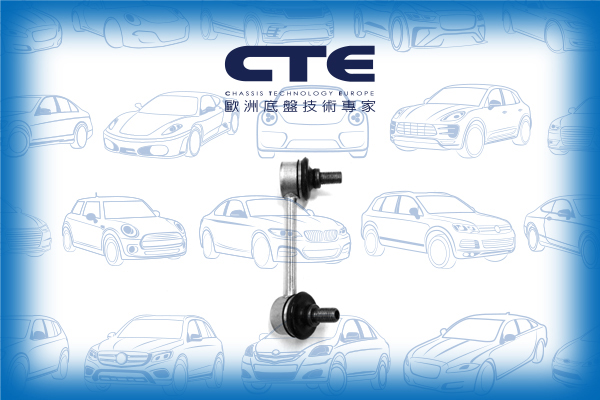

CSL02069R | REAR RH (A=100MM) | 48830-21020 |
| Model (Year) |
|---|
|
AVENSIS (_T25_) AVENSIS Estate (_T25_) AVENSIS Saloon (_T25_) COROLLA Saloon (_E15_) | COROLLA AXIO | COROLLA ALTIS | ALTIS COROLLA Verso (ZER_, ZZE12_, R1_) |
