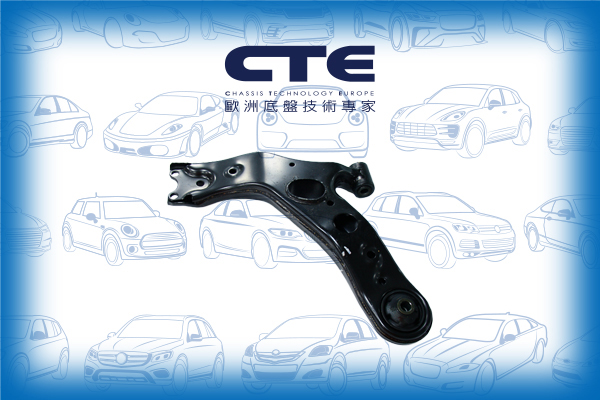

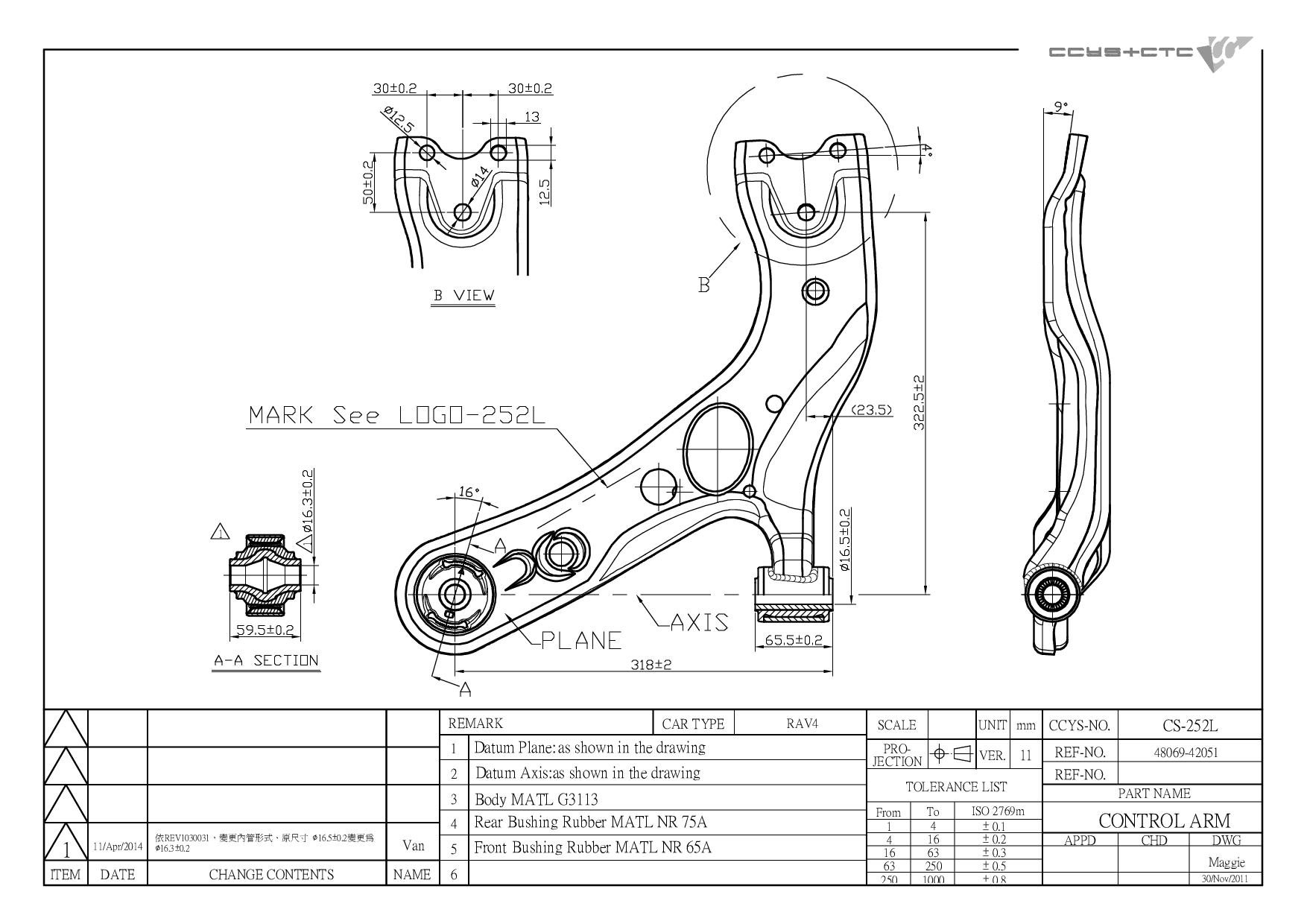

CS-252L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 10140-25100 / 40170-05500 / 48069-02180 / 48069-0R010 / 48069-0R020 / 48069-0R030 / 48069-42050 / 48069-42051 / 48069-42060 |
| Length | 437 mm |
| Width | 405 mm |
| Height | 73.5 mm |
| Net Weight | 5.29 kg |
TOYOTA ALPHARD (_H2_) Production date to 201110 (_H3_) Construction year to 01.2018
PREVUA III (_R2_,_R5_) year from 01.2006 to 05.2016 date to 200812
RAV4 III (_A3_) to 12.2012 VIN ZSA35
ACA30
ALA30 date from 200811 to 200801 JAPAN
NORTH AMERICA
PREVUA III (_R2_,_R5_) year from 01.2006 to 05.2016 date to 200812
RAV4 III (_A3_) to 12.2012 VIN ZSA35
ACA30
ALA30 date from 200811 to 200801 JAPAN
NORTH AMERICA
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

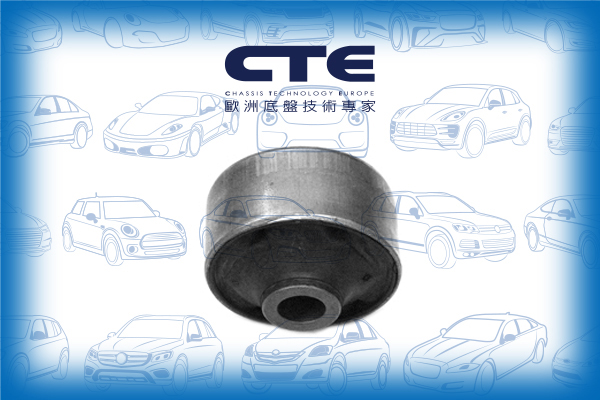

CBH02041 | FRONT LOWER ARM REAR | 48068-42051 48068-45050 48069-42050 48069-42051 |
|
 |
CBH02044 | FRONT LOWER ARM INNER | 48068-02130 48068-12300 48068-47050 48068-F4010 48069-02130 48069-12300 48069-47050 48069-F4010 48654-02040 48654-05060 48654-42030 48654-42040 48654-47030 48655-42050 |
|
 |

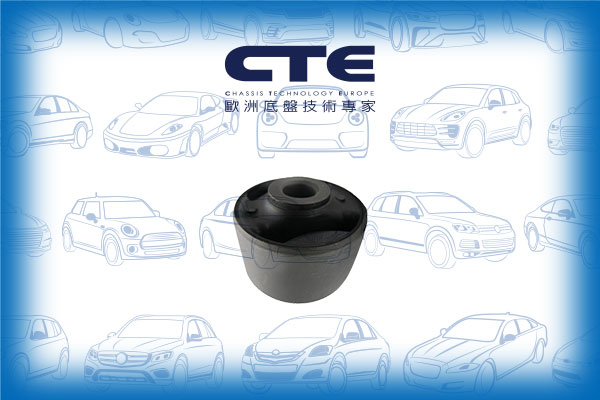

CBH02060 | REAR UPPER AXLE | 48725-78010 48760-0R010 48760-0R020 48760-0R030 48760-42010 48760-42020 48760-42030 48760-42040 48760-42060 48760-48110 48760-78010 48780-0R010 48780-0R020 48780-0R030 48780-42010 48780-42020 48780-42030 48780-42040 48780-42060 48780-48110 48780-78010 |
|
 |
CBJ02016A | FRONT LOWER LH/RH | 43330-02111 43330-05040 43330-09630 43330-09631 43330-09720 43330-09770 43330-09A30 43330-09A40 43330-19245 43330-19255 43330-19275 43330-49095 43330-49195 43330-49215 |
|
 |
COS02004 | FRONT | ||
 |

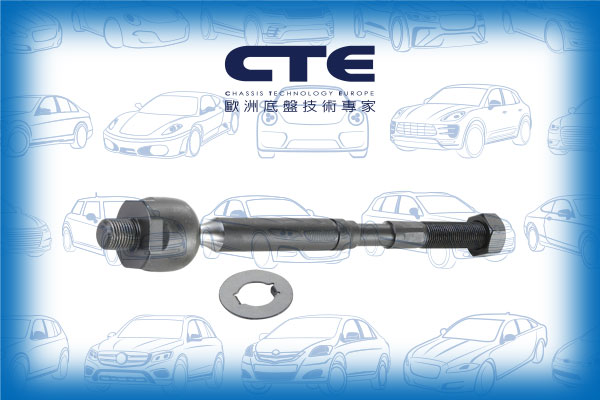

CRE02080 | FRONT AXLE LH/RH | 45503-42030 45510-0R070 45510-0R100 45510-42160 45510-42230 |
|
 |
CS-252L | FRONT LOWER LH | 10140-25100 40170-05500 48069-02180 48069-0R010 48069-0R020 48069-0R030 48069-42050 48069-42051 48069-42060 |
|
 |

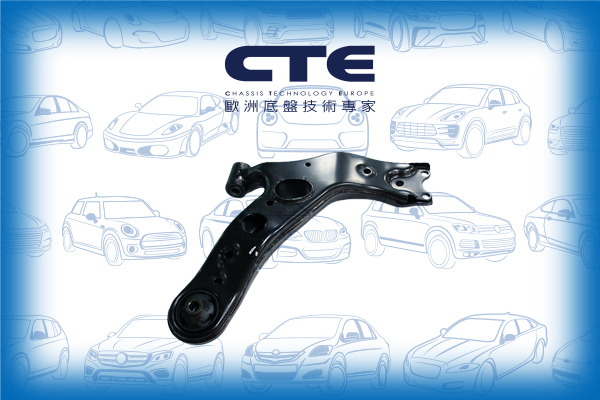

CS-252R | FRONT LOWER RH | 10140-25101 40170-05400 48068-02180 48068-0R010 48068-0R020 48068-0R030 48068-42050 48068-42051 48068-42060 |
|
 |

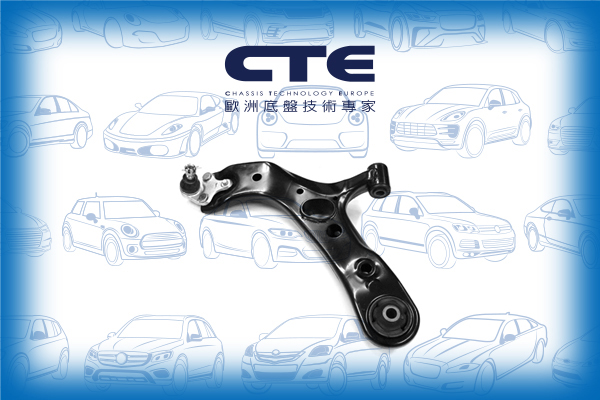

CS-255L | FRONT LOWER LH | 10140-25100 40170-05500 48069-02180 48069-0R010 48069-0R020 48069-0R030 48069-42050 48069-42051 48069-42060 CS-252L+CBJ02016A |
|
 |

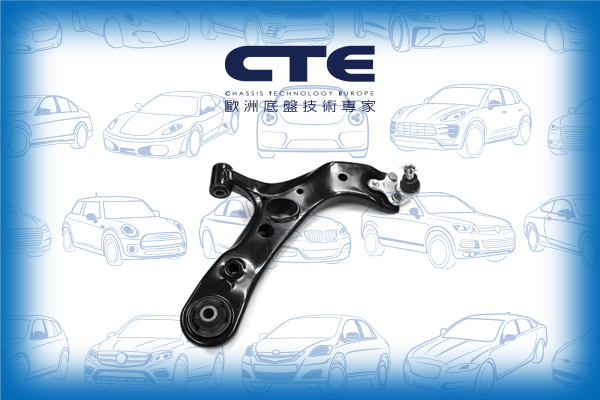

CS-255R | FRONT LOWER RH | 10140-25101 40170-05400 48068-02180 48068-0R010 48068-0R020 48068-0R030 48068-42050 48068-42051 48068-42060 CS-252R+CBJ02016A |
|
 |
CSL02066 | FRONT (A= 360MM) | 48820-02070 48820-02080 48820-0R010 48820-42030 48820-47020 48820-47030 |
|
 |
CSL02081 | REAR AXLE LH/RH | 48830-0R010 48830-42021 48830-42022 |
|
 |
CTE02004L | FRONT AXLE LH (C= M16X1.5) | 45047-09310 45047-49135 |
|
 |
CTE02004R | FRONT AXLE RH (C= M16X1.5) | 45046-09650 45046-49195 |
| Model (Year) |
|---|
|
NX (_Z1_) RX (_L1_) |
| Model (Year) |
|---|
|
ALPHARD / VELLFIRE (_H2_) ALPHARD / VELLFIRE (_H3_) PREVIA III (_R2_, _R5_) | ESTIMA RAV 4 III (_A3_) | RAV 4 / VANGUARD RAV 4 IV (_A4_) RAV 4 IV VAN (_A4_) |
| Model (Year) |
|---|
|
COROLLA (_E18_) RAV4 (_A3_) |
