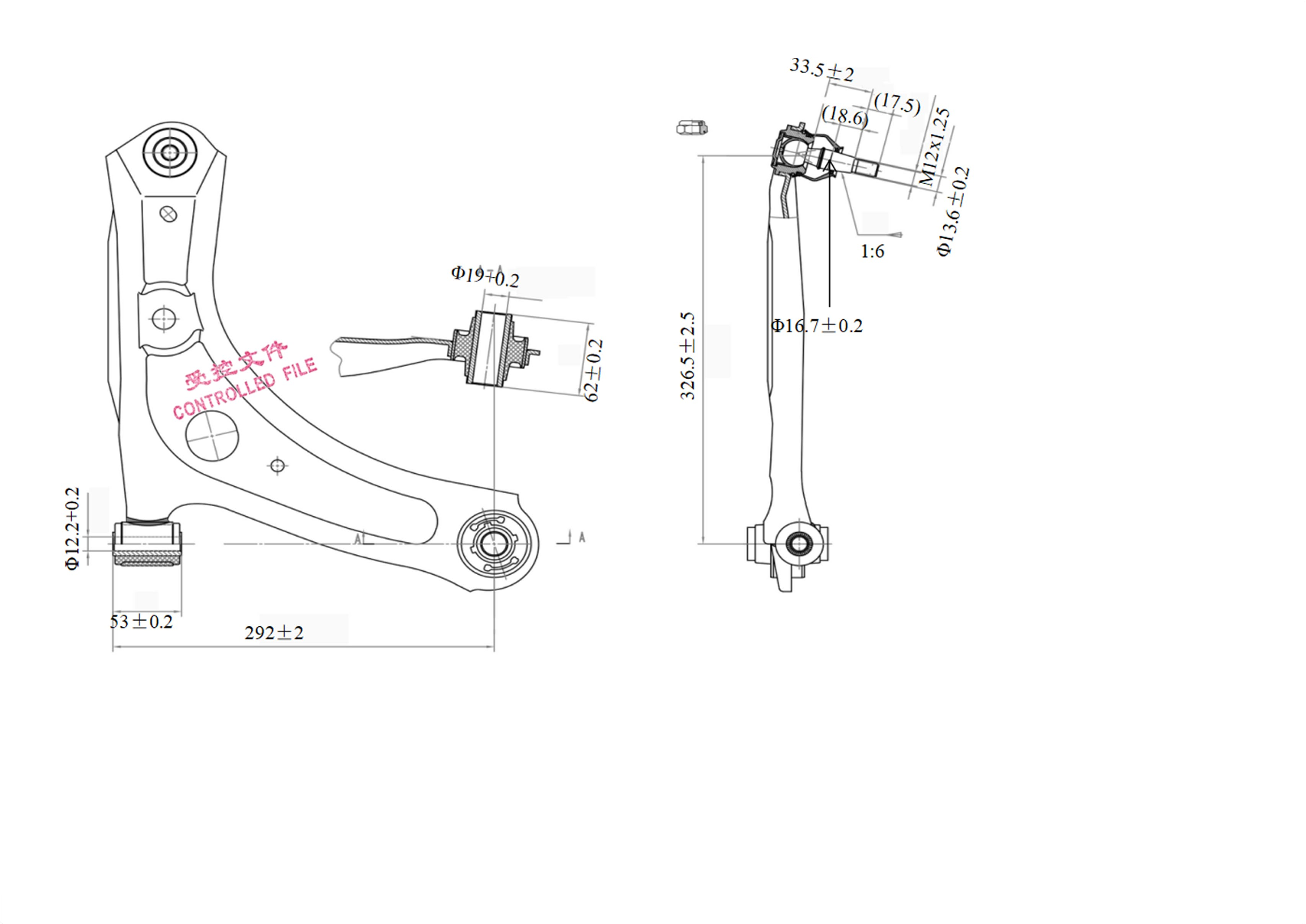

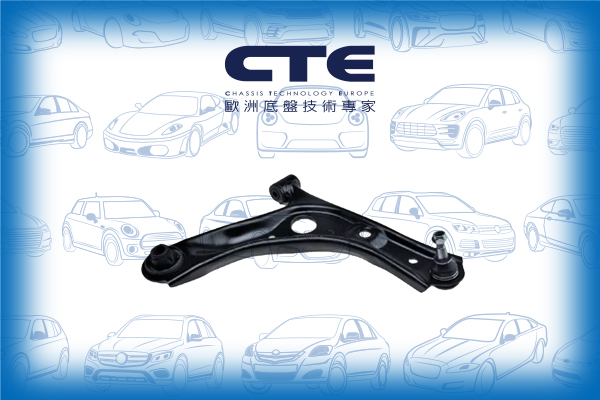

CS-2510R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 16 141 916 80 / 48068-0H020 / 48068-0H021 / B0 007 701 80 |
| Length | 380 mm |
| Width | 340 mm |
| Height | 80 mm |
| Net Weight | 2.64 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

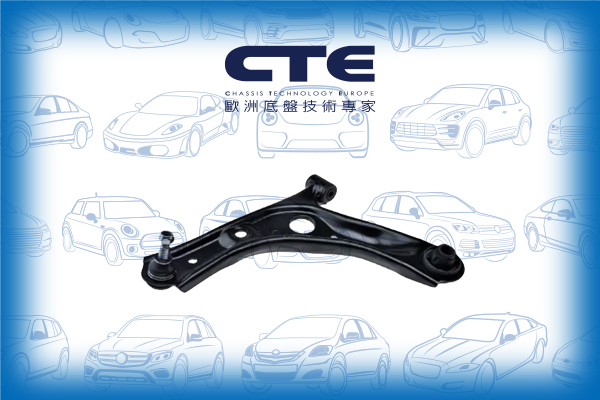

CS-2510L | FRONT LOWER LH | 16 141 914 80 48069-0H020 48069-0H021 B0 007 702 80 |
|
 |
CS-2510R | FRONT LOWER RH | 16 141 916 80 48068-0H020 48068-0H021 B0 007 701 80 |
|
 |
CSL02068 | FRONT | 48817-0D010 48817-52010 48817-52011 48819-52010 48819-52020 48819-70010 5091.1 5091.10 5094.A7 6822.R9 6822.S0 6822.TV 90948-02178 90948-02179 94182-10800 |
| Model (Year) |
|---|
|
C1 II (PA_, PS_) |
| Model (Year) |
|---|
|
108 |
| Model (Year) |
|---|
|
AYGO (_B4_) |
