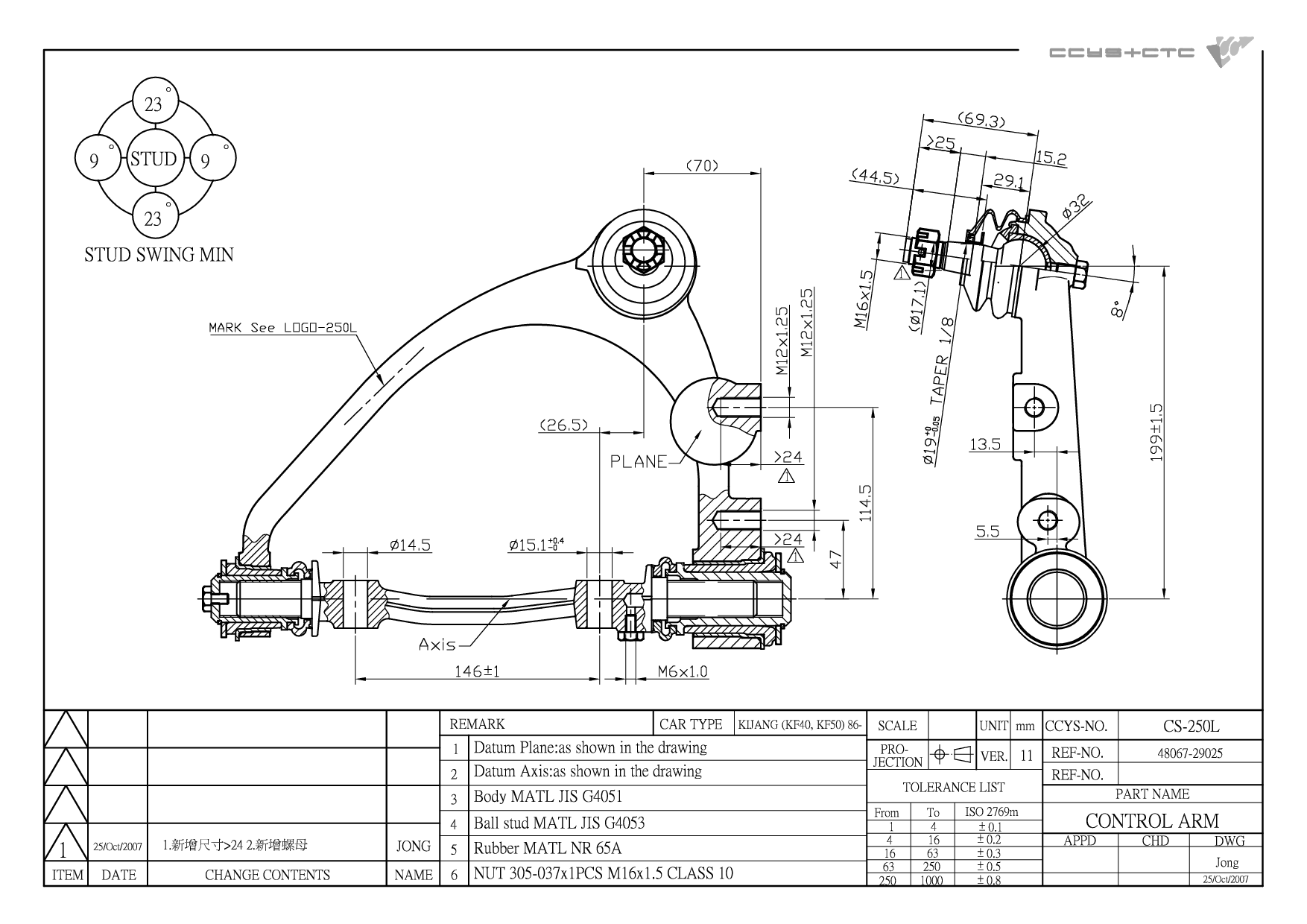

CS-250L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 48067-26050 / 48067-29025 / 48067-29035 / 48067-29155 |
| Length | 262.9 mm |
| Width | 351.7 mm |
| Height | 122.1 mm |
| Net Weight | 5.79 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CS-222L | FRONT LOWER LH | 48069-26020 48069-26H00 |
|
 |
CS-222R | FRONT LOWER RH | 48068-26020 48068-26H00 |
|
 |
CS-250L | FRONT UPPER LH | 48067-26050 48067-29025 48067-29035 48067-29155 |
|
 |
CS-250R | FRONT UPPER RH | 48066-26050 48066-29025 48066-29035 48066-29155 |
| Model (Year) |
|---|
|
DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) HIACE IV Bus (_H1_) | REGIUS | HIACE / COMMUTER HIACE IV Bus (__H1_, __H2_) HIACE IV Van (_H1_) HIACE IV Van (__H1_, __H2_) |
