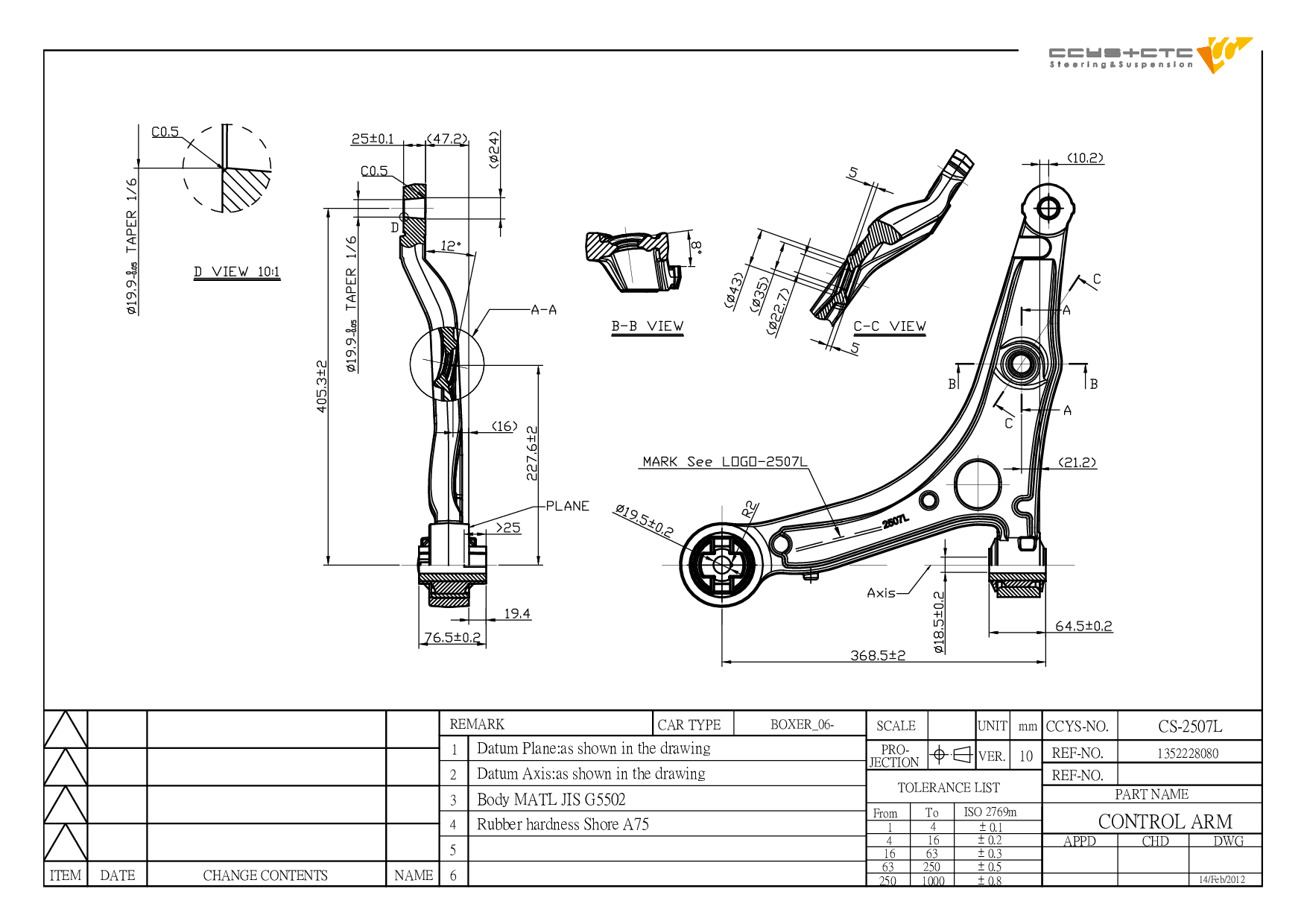

CS-2507L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1352228080 / 3520.S1 / 6001070758 |
| Length | 434 mm |
| Width | 481 mm |
| Height | 97.7 mm |
| Net Weight | 8.35 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH25005 | FRONT LOWER ARM REAR | 50705198 |
|
 |
CBH25006 | FRONT LOWER ARM INNER | 50705197 |
|
 |
CBJ25005 | FRONT AXLE LH/RH | 1635507580 3640.67 3640.76 50705629 53388173 |
|
 |
CS-2507L | FRONT LOWER LH | 1352228080 3520.S1 6001070758 |
|
 |
CS-2507R | FRONT LOWER RH | 1352226080 3521.P2 6001070756 |
|
 |
CS-2508L | FRONT LOWER LH | 1352227080 3520.S0 6001070757 |
|
 |
CS-2508R | FRONT LOWER RH | 1352225080 3521.P1 6001070755 |
|
|
CS-2511L | FRONT LOWER LH | 1374223080 1612735680 |
|
|
CS-2511R | FRONT LOWER RH | 1374222080 1612735580 |
| Model (Year) |
|---|
|
JUMPER II Bus | RELAY JUMPER II Platform/Chassis | RELAY JUMPER II Van | RELAY |
| Model (Year) |
|---|
|
DUCATO Bus (250_) DUCATO Platform/Chassis (250_) DUCATO Van (250_) |
| Model (Year) |
|---|
|
BOXER Bus BOXER Platform/Chassis BOXER Van (244) BOXER Van | MANAGER |
