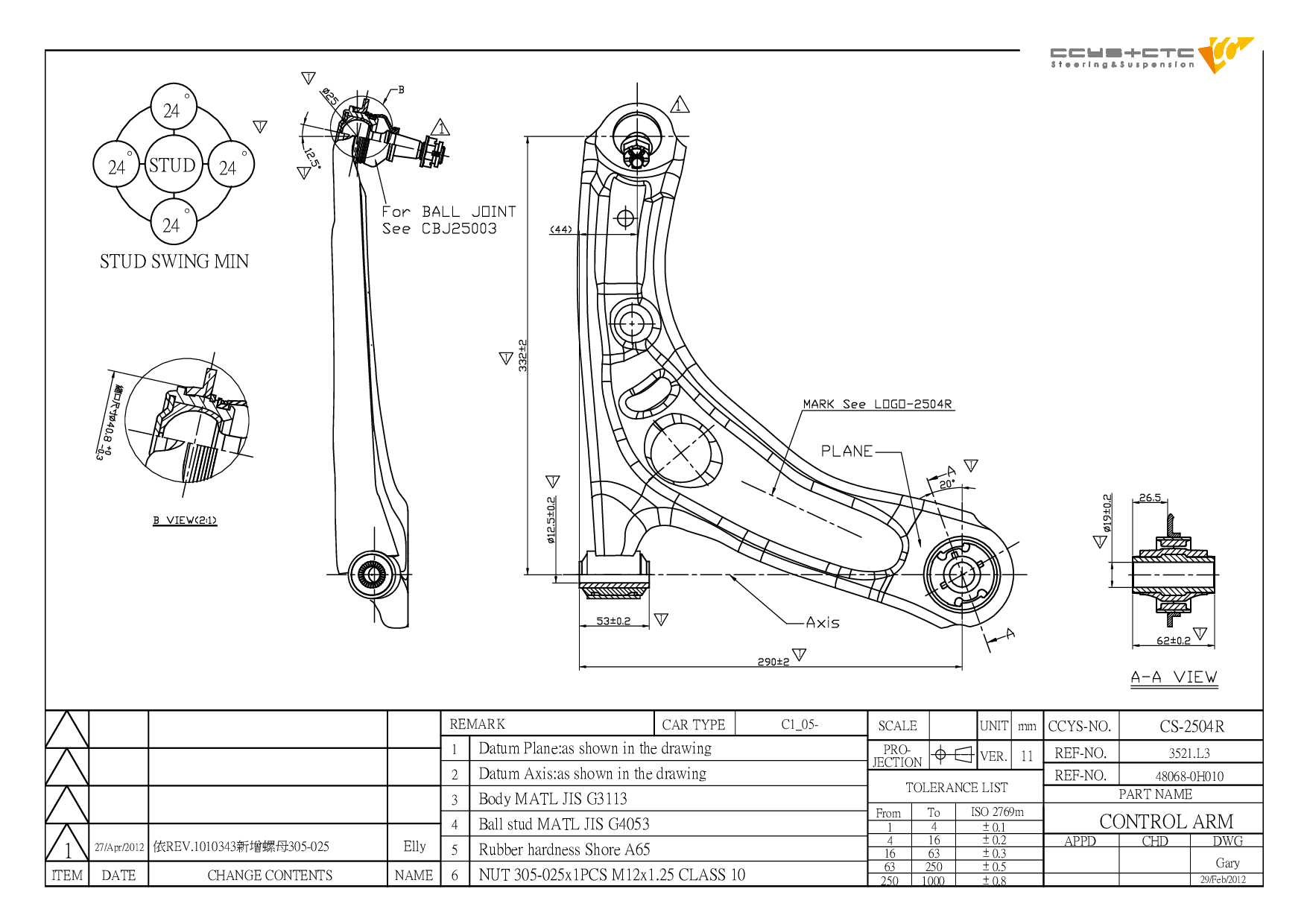

CS-2504R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 3521.L3 / 48068-0H010 |
| Length | 330 mm |
| Width | 398 mm |
| Height | 90 mm |
| Net Weight | 2.51 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02014 | FRONT LOWER ARM INNER | 48654-16110 48655-0H010 |
|
 |
CBH02050 | FRONT LOWER ARM INNER | 48654-0D030 48654-0D060 48654-52050 48654-74011 |
|
 |
CBH25007 | FRONT LOWER ARM REAR | 3520.Q2 3521.L3 48068-0H010 48069-0H010 48654-0H010 |
|
 |
CS-2504L | FRONT LOWER LH | 3520.Q2 48069-0H010 |
|
 |
CS-2504R | FRONT LOWER RH | 3521.L3 48068-0H010 |
|
 |
CSL02068 | FRONT | 48817-0D010 48817-52010 48817-52011 48819-52010 48819-52020 48819-70010 5091.1 5091.10 5094.A7 6822.R9 6822.S0 6822.TV 90948-02178 90948-02179 94182-10800 |
| Model (Year) |
|---|
|
C1 (PM_, PN_) |
| Model (Year) |
|---|
|
107 (PM_, PN_) |
| Model (Year) |
|---|
|
AYGO (_B1_) | WIGO |
