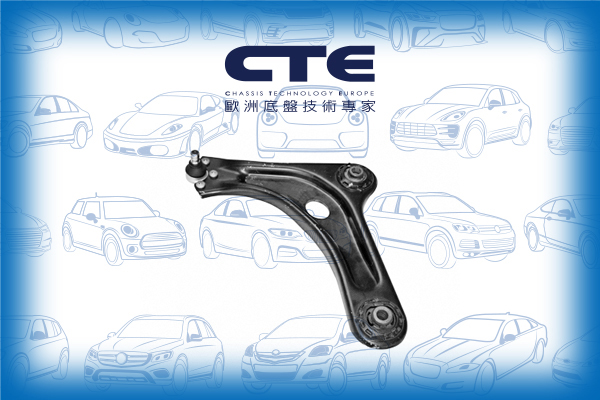

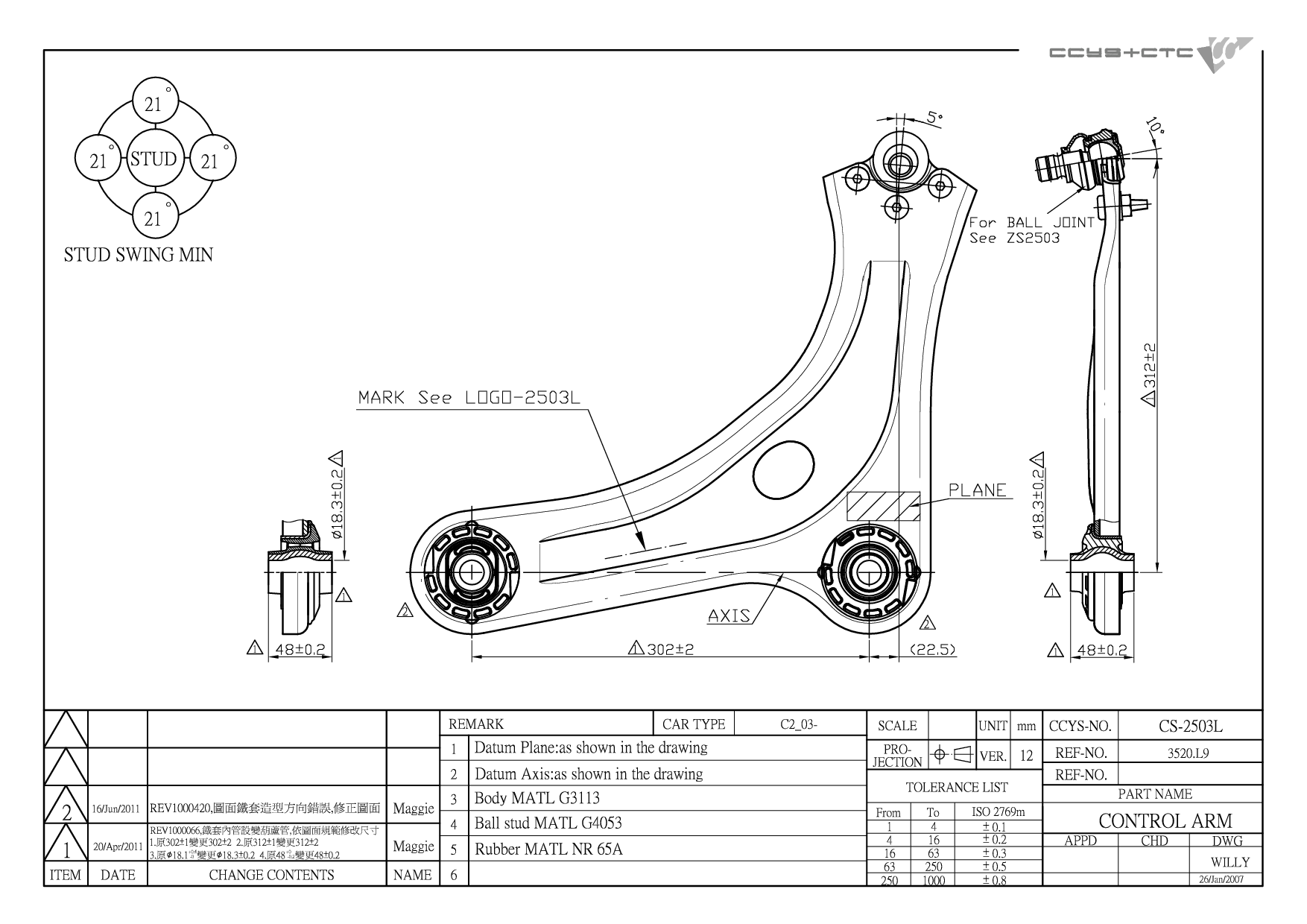

CS-2503L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 3520.L9 / 3520.N1 / 3520.R2 / 3520.R3 |
| Length | 428 mm |
| Width | 383 mm |
| Height | 85 mm |
| Net Weight | 3.4 kg |
Citroen C2 (JM_) Construction Year to 09.2005, for pro number up to 10562, for vehicles with standard suspension
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH25002 | FRONT LOWER ARM REAR | 3523.99 3523.AA 3523.AT 96 408 770 80 |
|
 |

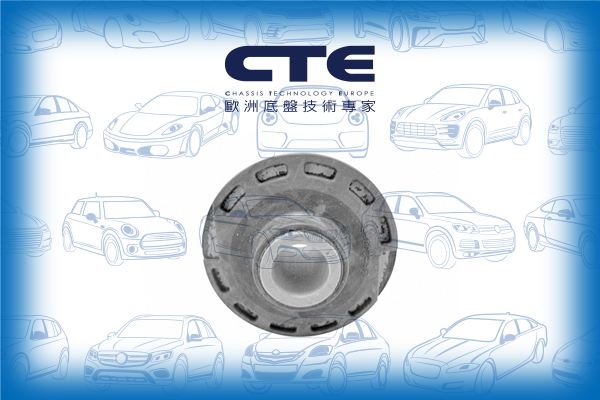

CBH25003 | FRONT LOWER ARM INNER | 3523.98 96 361 910 80 |
|
 |
CBJ16011A | FRONT LOWER LH/ RH | 16 072 984 80 16 072 985 80 3640.56 3640.59 3640.62 3640.66 |
|
 |

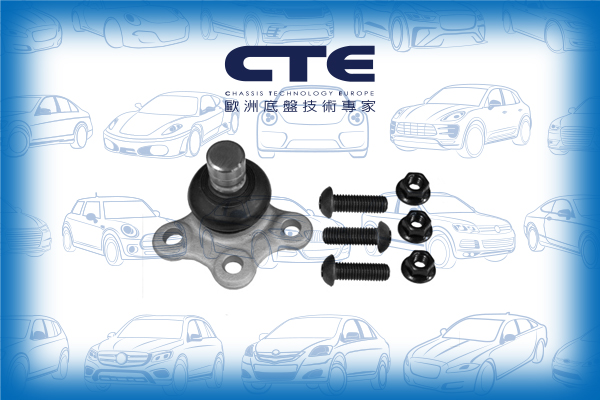

CBJ25002A | FRONT LOWER LH/ RH | 3640.61 3640.65 |
|
 |
CRE25003 | D= M14X1.5 , C= M12X1.0 | 3812.E1 |
|
 |
CS-2503L | FRONT LOWER LH | 3520.L9 3520.N1 3520.R2 3520.R3 |
|
 |

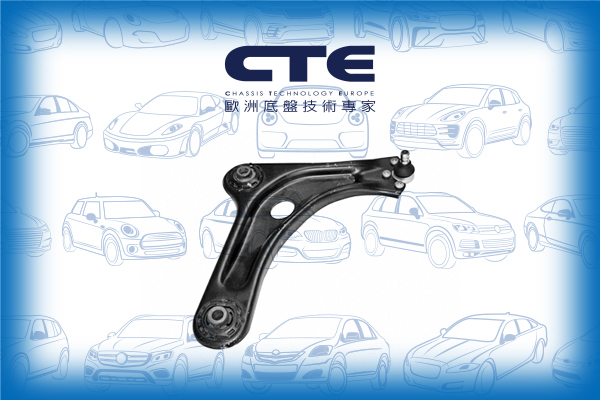

CS-2503R | FRONT LOWER RH | 3521.J1 3521.J2 3521.N3 3521.N4 |
|
 |
CSL16011 | FRONT (A= 335MM) | 16 073 234 80 16 466 219 80 5087.45 5087.59 5087.66 5087.71 5087.74 96288787 98 000 861 80 98 088 682 80 E459713 |
| Model (Year) |
|---|
|
C2 (JM_) |
