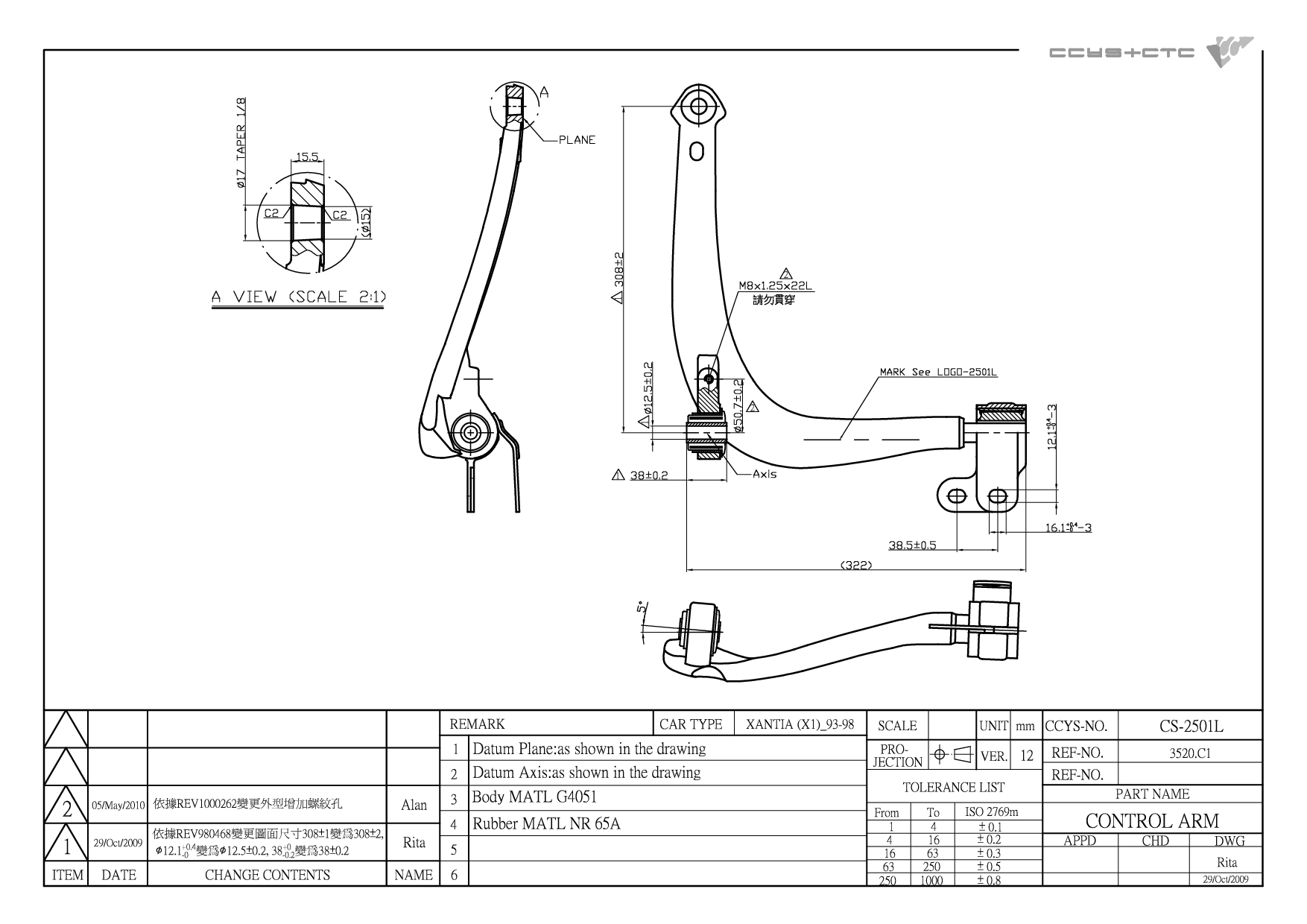

CS-2501L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 3520.C1 / 3520.C2 |
| Length | 405 mm |
| Width | 345 mm |
| Height | 100 mm |
| Net Weight | 4.75 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH25001L | FRONT LOWER ARM REAR | 3523 81 |
|
 |
CBH25001R | FRONT LOWER ARM REAR | 3523 82 |
|
 |
CBH25004 | FRONT LOWER ARM INNER | 3520.C1 3521.81 |
|
 |
CBJ16012 | FRONT LOWER LH/RH | 3640.28 3640.34 3640.71 95 028 039 96 233 739 |
|
 |
CS-2501L | FRONT LOWER LH | 3520.C1 3520.C2 |
|
 |
CS-2501R | FRONT LOWER RH | 3521.81 3521.82 |
|
 |
CSL25002 | FRONT (A= 323MM) | 5087.40 96177836 9631583680 |
|
 |
CSL25003 | FRONT (A= 301.2MM) | 30-DS-6970 5087.38 5087.42 |
|
 |
CSL25006 | FRONT (A= 322MM) | 5087.48 |
|
 |
CSL25007 | FRONT (A= 323MM) | 96 145 457 |
| Model (Year) |
|---|
|
XANTIA (X1_, X2_) |
