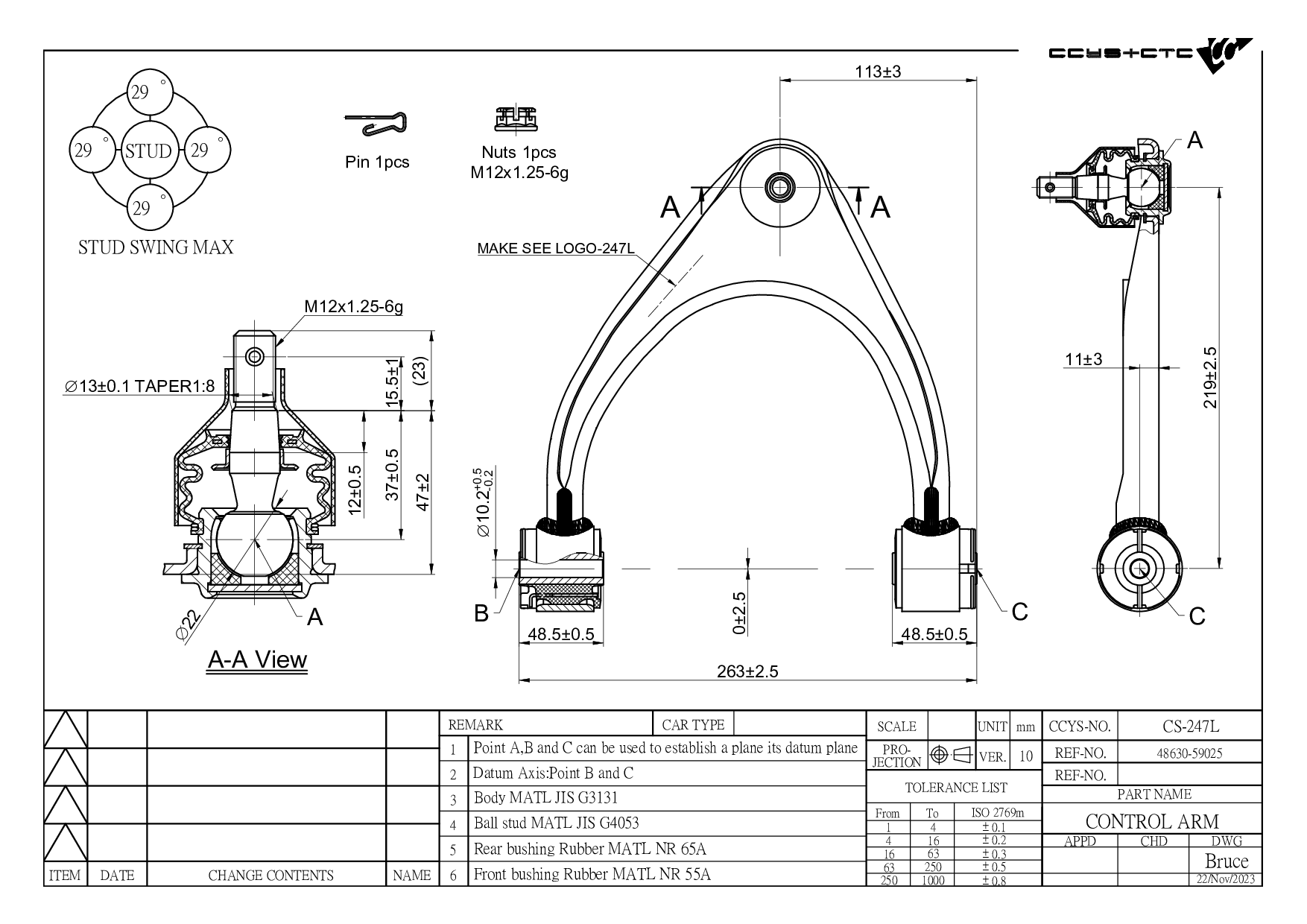

CS-247L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 48630-59025 |
| Length | 263 mm |
| Width | 272 mm |
| Height | 77 mm |
| Net Weight | 1.5 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02034 | FRONT LOWER ARM INNER | 48068-22100 48068-22130 48068-22140 48068-30270 48069-22100 48069-22130 48069-22140 48069-30270 48654-22050 48654-30070 |
|
 |
CBH02076 | FRONT LOWER ARM | 48655-22010 48655-22030 48655-30130 |
|
 |
CRE02034 | FRONT AXLE LH/RH | 45503-29185 45503-29305 |
|
 |
CS-247L | FRONT UPPER LH | 48630-59025 |
|
 |
CS-247R | FRONT UPPER RH | 48610-59025 |
|
 |
CS-248L | FRONT LOWER LH | 48069-53010 48069-59025 |
|
 |
CS-248R | FRONT LOWER RH | 48068-53010 48068-59025 |
|
 |
CSL02020 | FRONT (A= 106.5MM) | 48820-22040 48820-22041 |
| Model (Year) |
|---|
|
IS I (_E1_) IS SportCross (_E1_) |
