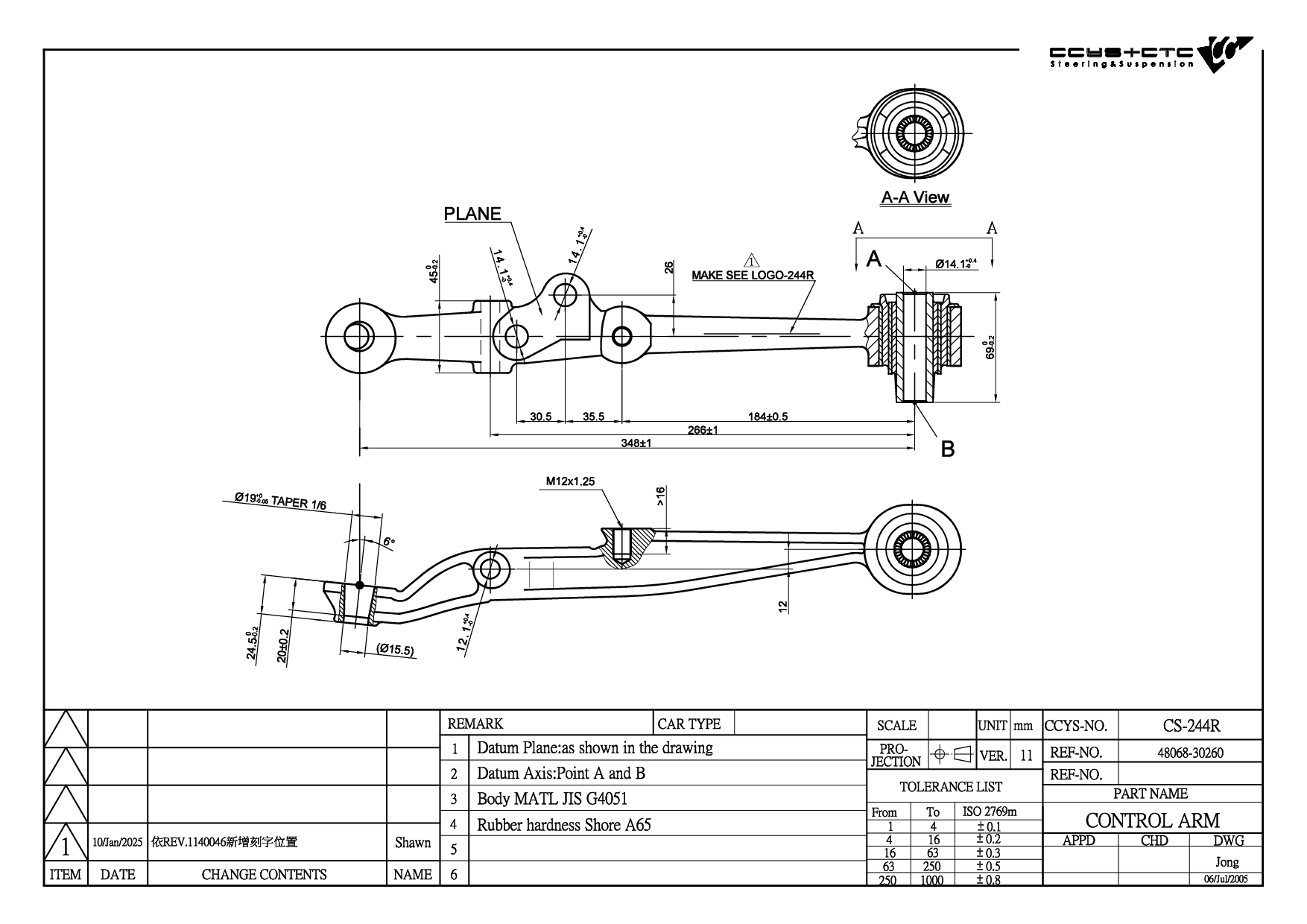

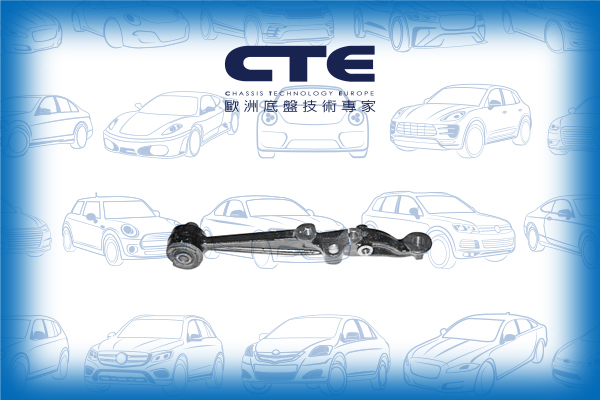

CS-244R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-30260 / 48620-30110 |
| Length | 400 mm |
| Width | 82 mm |
| Height | 77 mm |
| Net Weight | 2.24 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

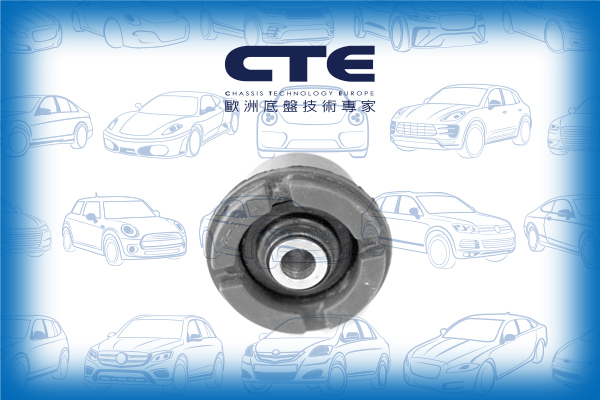

CBH02033 | FRONT UPPER ARM INNER | 48610-39015 48630-39015 |
|
 |

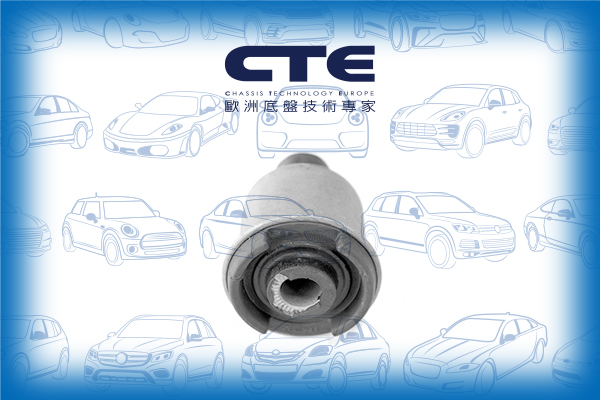

CBH02035 | FRONT LOWER ARM INNER | 48654-30050 |
|
 |
CRE02049 | D= M14X1.5 , C= M14X1.5 | 45503-39095 45503-59015 |
|
 |

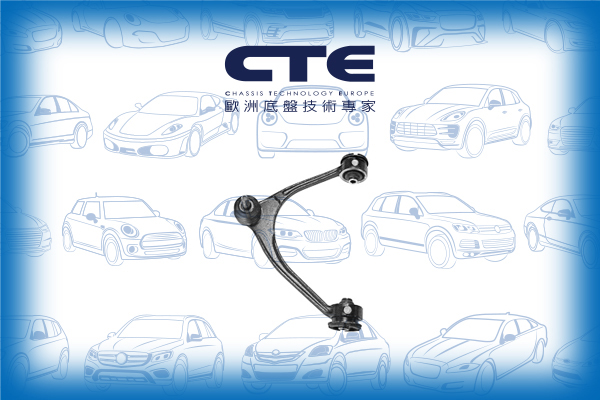

CS-241L | FRONT UPPER LH | 48630-39015 48630-39055 |
|
 |

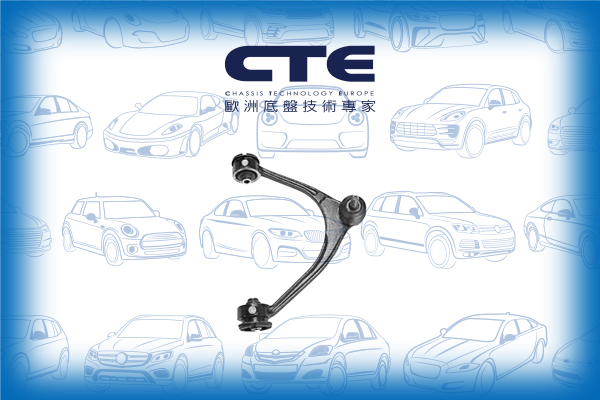

CS-241R | FRONT UPPER RH | 48610-39015 48610-39085 |
|
 |

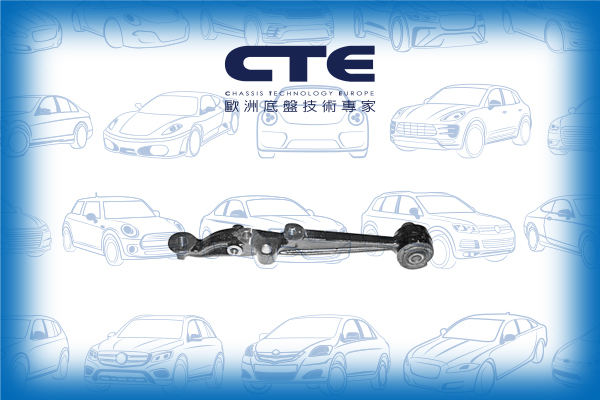

CS-244L | FRONT LOWER LH | 48069-30260 48640-30110 |
|
 |
CS-244R | FRONT LOWER RH | 48068-30260 48620-30110 |
|
 |
CSL02001L | FRONT LH (A= 79MM) | 48810-30010 48810-30020 |
|
 |
CSL02001R | FRONT RH (A= 79MM) | 48820-30030 48820-30040 |
|
 |
CSL02031 | FRONT (A= 70MM) | 48820-20010 |
|
 |
CSL02065 | REAR (A= 70MM) | 48830-24010 48830-30060 |
| Model (Year) |
|---|
|
GS (JZS147_) |
| Model (Year) |
|---|
|
ARISTO (_S14_) |
