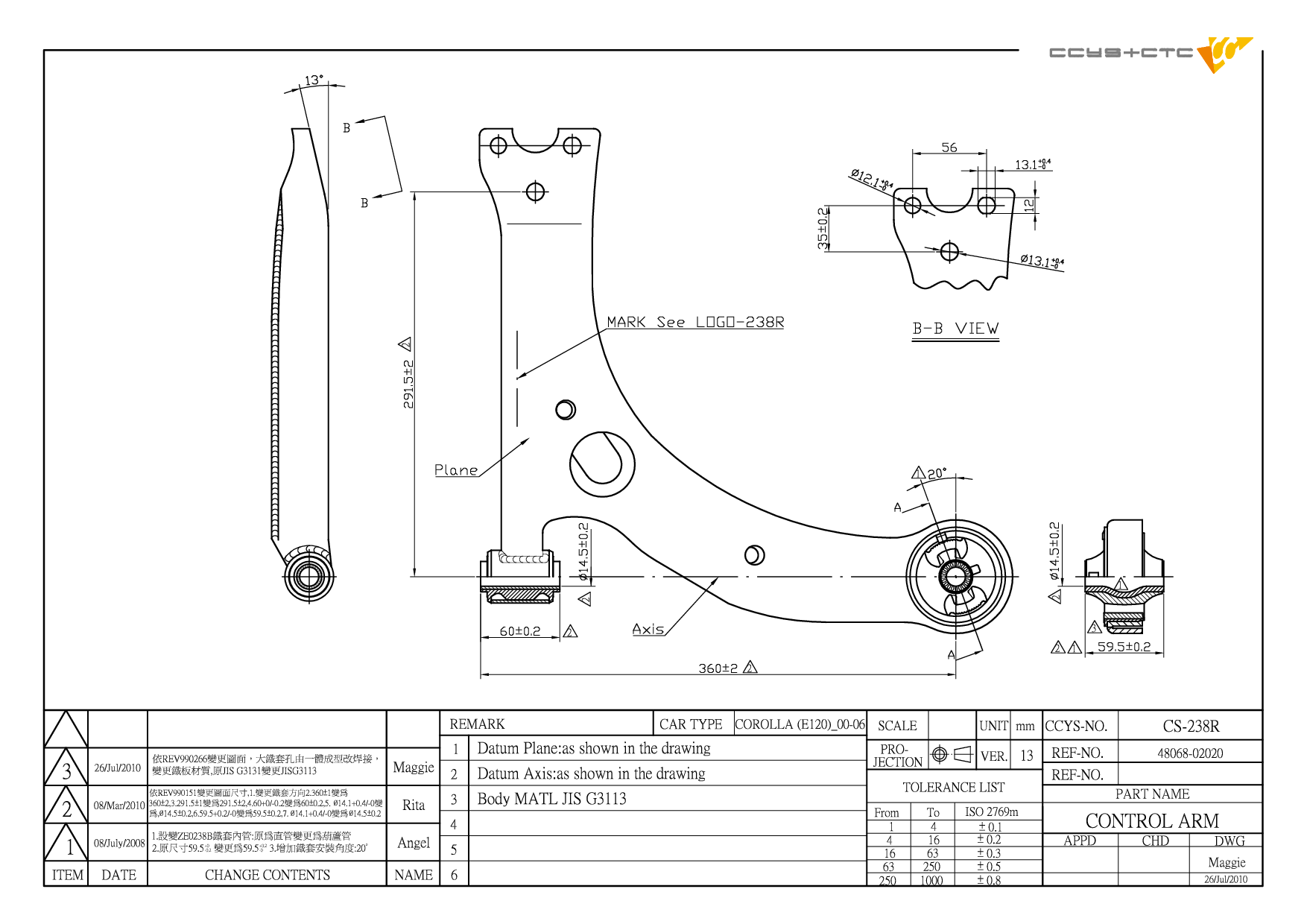

CS-238R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-02020 / 48068-02021 / 48068-02030 / 48068-02070 / 48068-02080 / 48068-02100 / 48068-02190 / 48068-02210 / 48068-12250 / 48068-12251 / 48068-12260 / 48068-12280 / 48068-12290 / 48068-13010 / 48068-20381 |
| Length | 403.8 mm |
| Width | 382.4 mm |
| Height | 47 mm |
| Net Weight | 3.4 kg |
(E12) Construction year to 12.2006
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02027 | FRONT LOWER ARM REAR | 48068-02020 48068-02021 48068-02030 48068-02070 48068-02080 48068-02210 48068-12260 48068-12290 48068-13010 48068-47040 48069-02020 48069-02021 48069-02030 48069-02070 48069-02080 48069-02210 48069-12260 48069-12290 48069-13010 48069-47040 |
|
 |

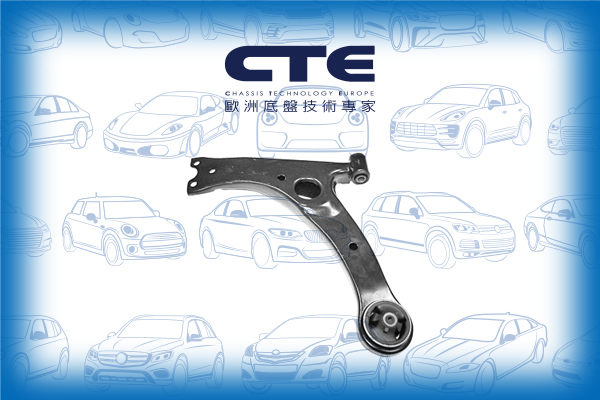

CS-238L | FRONT LOWER LH | 48069-02020 48069-02021 48069-02030 48069-02070 48069-02080 48069-02100 48069-02190 48069-02210 48069-12250 48069-12251 48069-12260 48069-12280 48069-12290 48069-13010 48069-20381 |
|
 |
CS-238R | FRONT LOWER RH | 48068-02020 48068-02021 48068-02030 48068-02070 48068-02080 48068-02100 48068-02190 48068-02210 48068-12250 48068-12251 48068-12260 48068-12280 48068-12290 48068-13010 48068-20381 |
| Model (Year) |
|---|
|
COROLLA (_E12_) | COROLLA RUNX | COROLLA / ALLEX COROLLA Combi (_E12_) COROLLA Estate (_E11_) COROLLA Estate (_E12_) COROLLA Estate (_E12_) | COROLLA FIELDER COROLLA Estate (_E14_) | COROLLA FIELDER COROLLA Saloon (_E12_) | COROLLA ALTIS | ALTIS COROLLA Saloon (_E15_) COROLLA Saloon (_E15_) | COROLLA ALTIS | ALTIS COROLLA Saloon (_E15_) | COROLLA AXIO | COROLLA ALTIS | ALTIS COROLLA Verso (_E12_) | COROLLA SPACIO WISH MPV (_E2_) |
| Model (Year) |
|---|
|
COROLLA (_E12_) |
