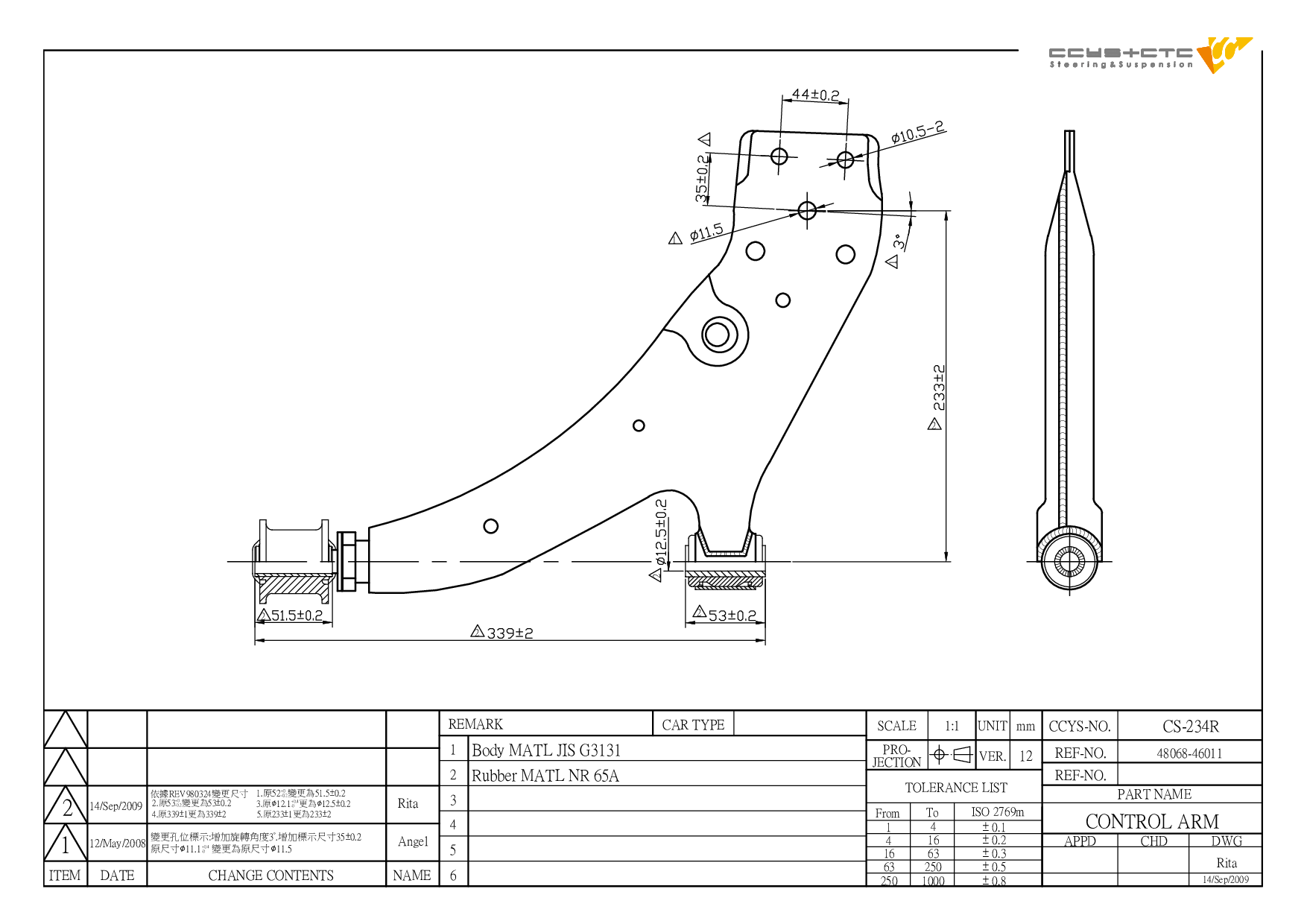

CS-234R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-46011 |
| Length | 418 mm |
| Width | 314 mm |
| Height | 43 mm |
| Net Weight | 2.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02014 | FRONT LOWER ARM INNER | 48654-16110 48655-0H010 |
|
 |
CBH02026 | FRONT LOWER ARM REAR | ||
 |
CRE02039 | D= M12X1.25 , C= M12X1.25 | 45503-19195 |
|
 |
CS-234L | FRONT LOWER LH | 48069-46011 |
|
 |
CS-234R | FRONT LOWER RH | 48068-46011 |
| Model (Year) |
|---|
|
PASEO Convertible (_L5_) | CYNOS PASEO Coupe (_L5_) | CYNOS TERCEL Hatchback (EL5_) | COROLLA II TERCEL Saloon (_L5_) |
