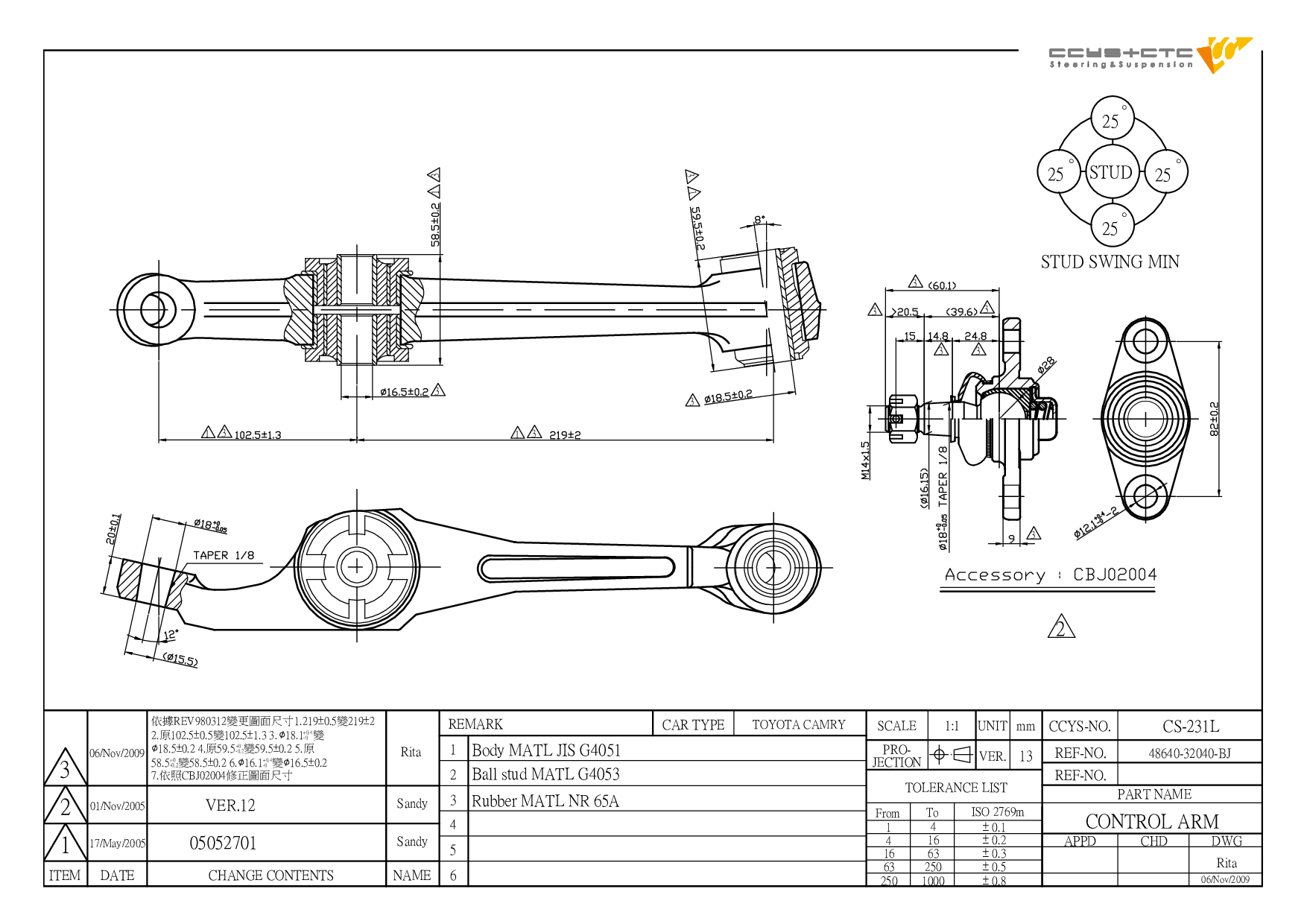

CS-231L
| Designation | Control Arm |
| Position | FRONT LOWER LH (W/ BJ) |
| OE No. | 48640-32040 / 48720-20050 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 3.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02007 | FRONT LOWER ARM OUTER | ||
 |
CBH02008 | FRONT LOWER ARM INNER | 48654-32040 |
|
 |
CBJ02004 | FRONT LOWER LH/ RH | 43330-39135 43330-39275 43330-39345 |
|
 |
CRE02009 | D= M14X1.5 , C= M14X1.5 | 45503-29105 |
|
 |
CRE02040 | D= M14X1.5 , C= M14X1.5 | 45503-39025 |
|
 |
CS-210L | FRONT LOWER LH | 48640-32040 48720-20050 |
|
 |
CS-210R | FRONT LOWER RH | 48620-32040 48710-20060 |
|
 |
CS-231L | FRONT LOWER LH (W/ BJ) | 48640-32040 48720-20050 |
|
 |
CS-231R | FRONT LOWER RH (W/ BJ) | 48620-32040 48710-20060 |
|
 |
CSL02031 | FRONT (A= 70MM) | 48820-20010 |
|
 |
CSL02035 | REAR AXLE LH/RH (A= 104MM) | 48830-02010 48830-05011 48830-12060 48830-20010 48830-32010 48830-32020 |
| Model (Year) |
|---|
|
ES (VCV10_, VZV21_) |
| Model (Year) |
|---|
|
CAMRY (_V2_) CAMRY Estate (_V2_) CAMRY Saloon (_V1_) |
