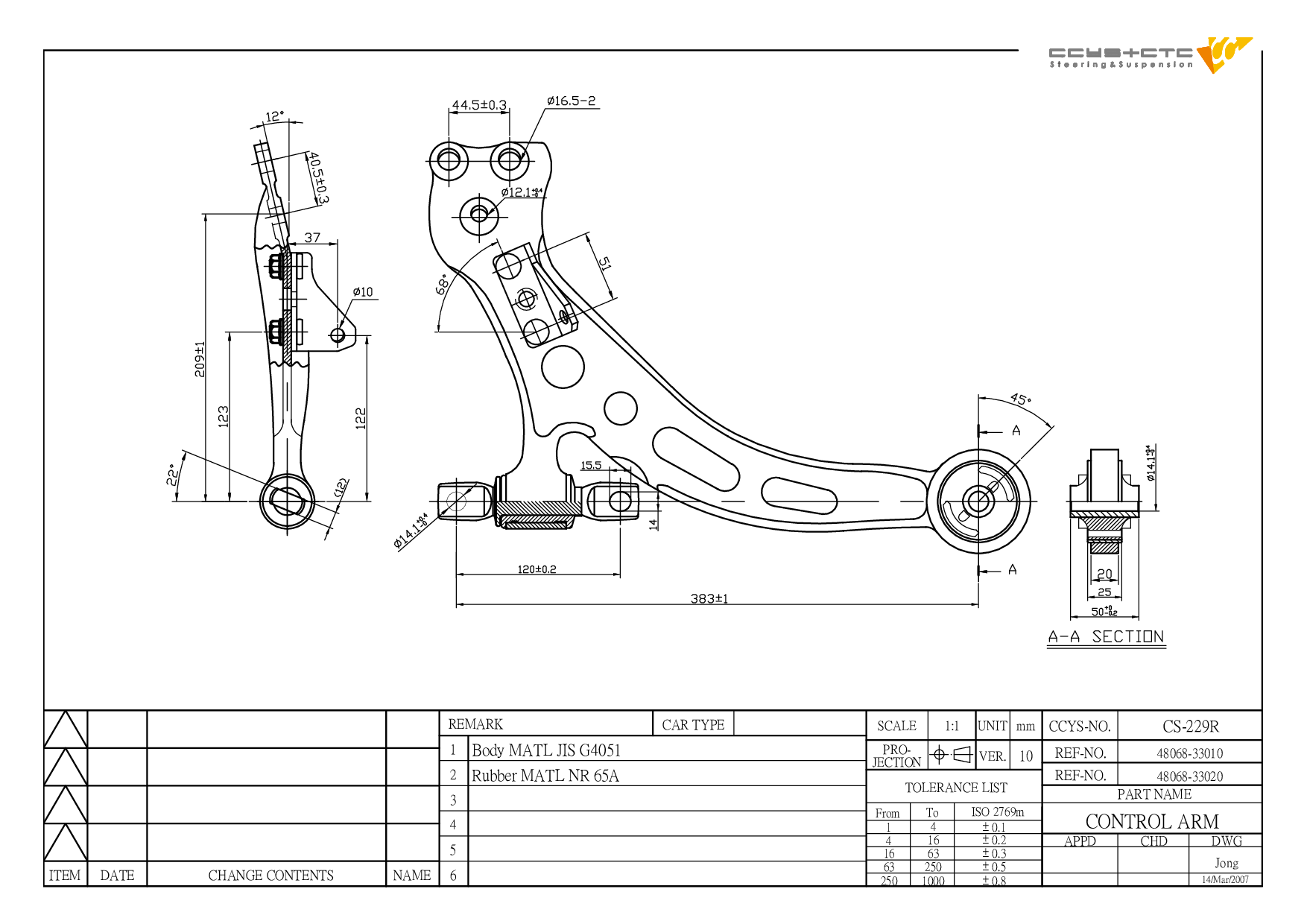

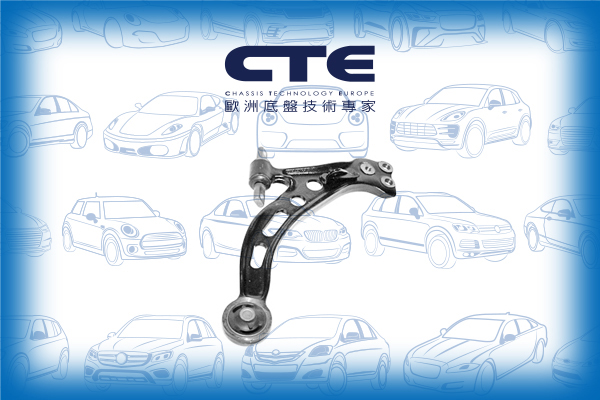

CS-229R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-06010 / 48068-06050 / 48068-07010 / 48068-33010 / 48068-33020 |
| Length | 434 mm |
| Width | 301 mm |
| Height | 74 mm |
| Net Weight | 4.42 kg |
Lexus (VCV10_,VZV211_,VCV10R) Construction Year to 08.1996
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

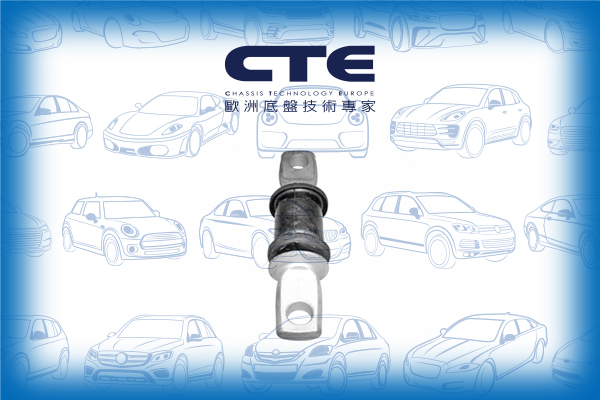

CBH02025 | FRONT LOWER ARM INNER | 48654-33030 |
|
 |

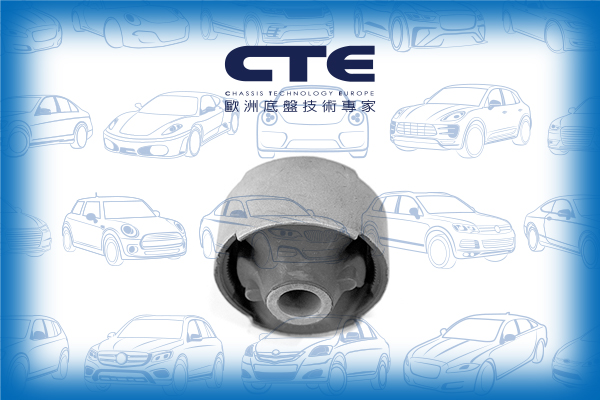

CBH02039 | FRONT LOWER ARM REAR | 48655-07010 48655-33010 48655-48010 |
|
 |
CRE02027 | D= M15X1.5 , C= M14X1.5 | 45503-09030 45503-09041 45503-29355 45503-39055 45503-39135 |
|
 |
CS-229L | FRONT LOWER LH | 48069-06010 48069-06050 48069-07010 48069-33010 48069-33020 |
|
 |
CS-229R | FRONT LOWER RH | 48068-06010 48068-06050 48068-07010 48068-33010 48068-33020 |
|
 |
CSL02031 | FRONT (A= 70MM) | 48820-20010 |
|
 |
CSL02032 | FRONT (A= 62MM) | 48820-02010 48820-33010 |
| Model (Year) |
|---|
|
ES (VCV10_, VZV21_) |
| Model (Year) |
|---|
|
CAMRY (_V1_) | SCEPTER CAMRY Coupe (_V1_) CAMRY Estate (_V1_) | SCEPTER |
