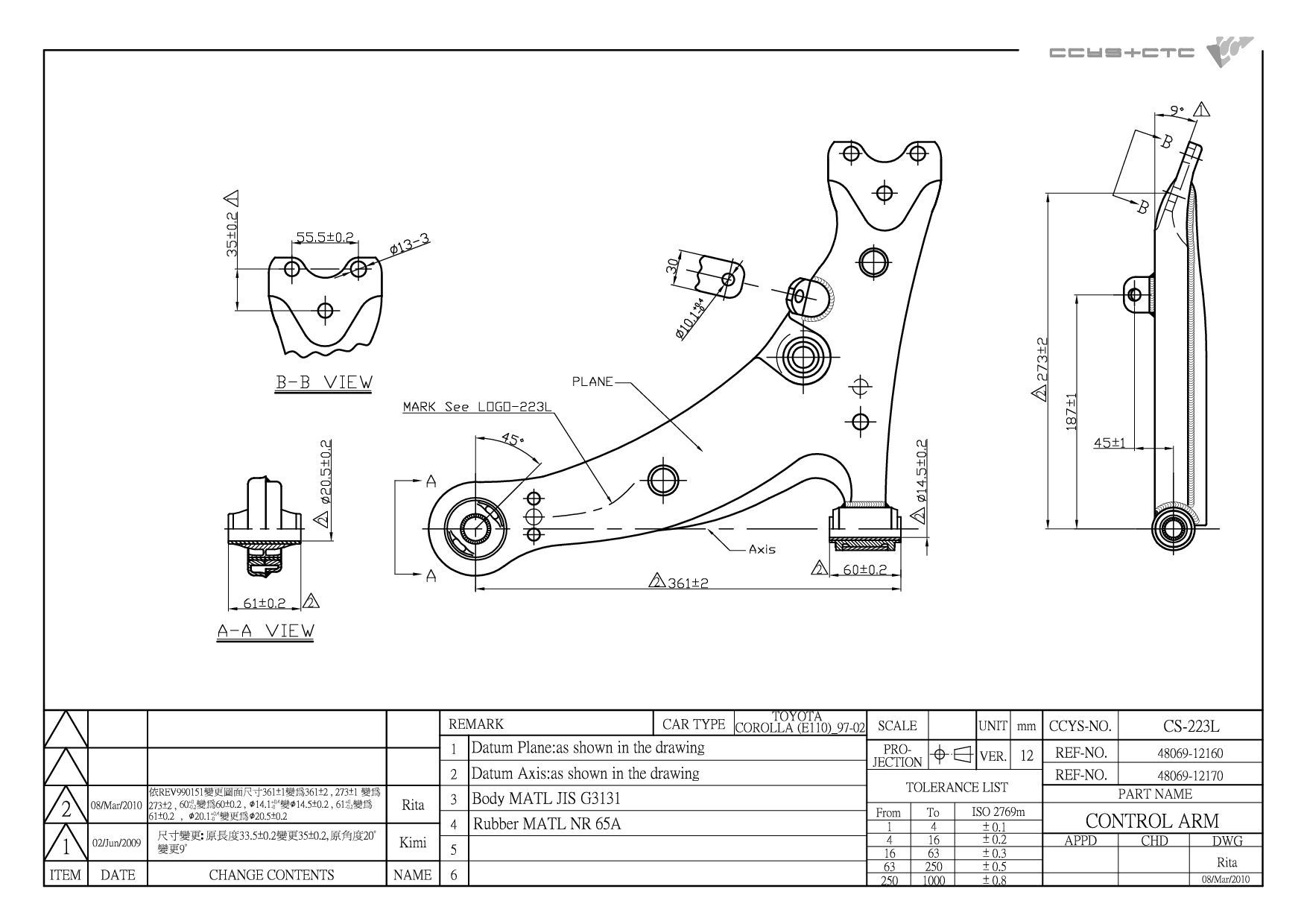

CS-223L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 48069-02010 / 48069-12160 / 48069-12170 / 48069-12171 / 48069-12180 / 48069-12181 / 48069-12190 / 48069-12191 |
| Length | 431.2 mm |
| Width | 365 mm |
| Height | 69.5 mm |
| Net Weight | 2.83 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ02020A | FRONT LOWER LH/RH | 43330-02070 43330-02097 43330-09070 43330-09090 43330-09200 43330-09220 43330-09230 43330-09A50 43330-09B21 43330-19115 43330-19185 |
|
 |
CS-223L | FRONT LOWER LH | 48069-02010 48069-12160 48069-12170 48069-12171 48069-12180 48069-12181 48069-12190 48069-12191 |
|
 |
CS-223R | FRONT LOWER RH | 48068-02010 48068-12160 48068-12170 48068-12171 48068-12180 48068-12181 48068-12190 48068-12191 |
|
 |
CSL02032 | FRONT (A= 62MM) | 48820-02010 48820-33010 |
|
 |
CSL02035 | REAR AXLE LH/RH (A= 104MM) | 48830-02010 48830-05011 48830-12060 48830-20010 48830-32010 48830-32020 |
|
 |
CSL02053 | FRONT (A= 56MM) | 48820-20021 |
| Model (Year) |
|---|
|
COROLLA (_E11_) COROLLA Compact (_E11_) COROLLA Estate (_E10_) COROLLA Estate (_E11_) COROLLA Liftback (_E11_) COROLLA Verso (_E11_) | COROLLA SPACIO |
