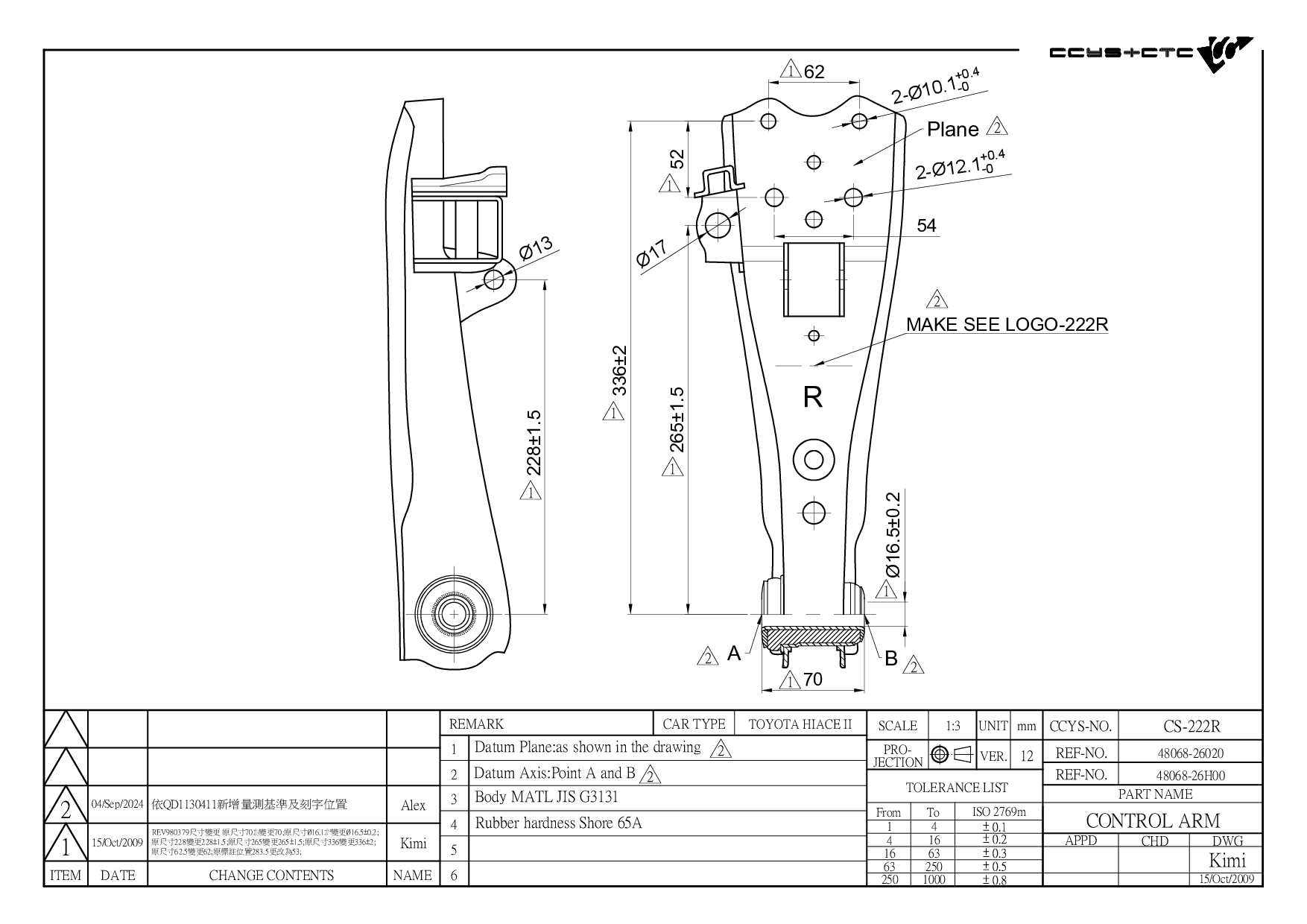

CS-222R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-26020 / 48068-26H00 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 2.5 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02016 | FRONT LOWER ARM INNER | 48061-26010 48061-26030 48061-26031 48061-26050 48061-35010 48061-35011 |
|
 |
CBJ02008 | FRONT LOWER LH/ RH | 43330-39265 43330-39315 43330-39835 43340-39245 J43 330 393 15 J43 340 392 45 |
|
 |
CBJ02008A | FRONT LOWER LH/ RH | 43330-39265 43330-39315 43330-39835 43340-39245 J43 330 393 15 J43 340 392 45 |
|
 |
CBJ02011 | FRONT LOWER LH/ RH | 43330-29255 43330-39195 43340-39175 43340-39235 43340-39255 |
|
 |
CRE02024 | D= M17X1.5 , C= M14X1.5 | 45503-29265 |
|
 |

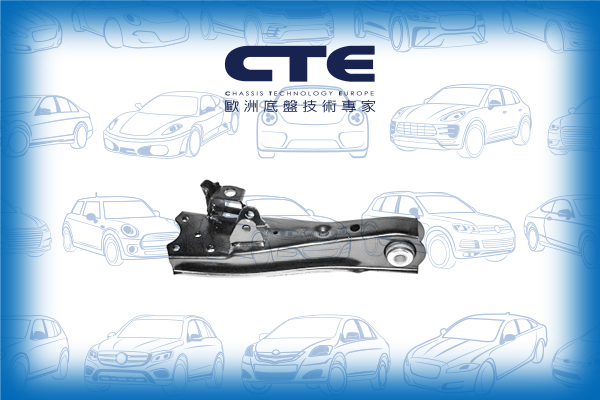

CS-222L | FRONT LOWER LH | 48069-26020 48069-26H00 |
|
 |

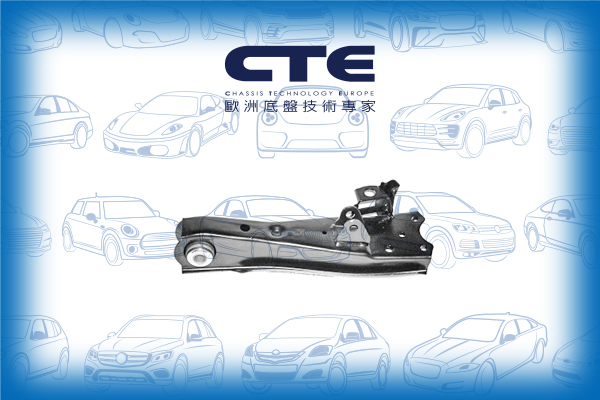

CS-222R | FRONT LOWER RH | 48068-26020 48068-26H00 |
|
 |

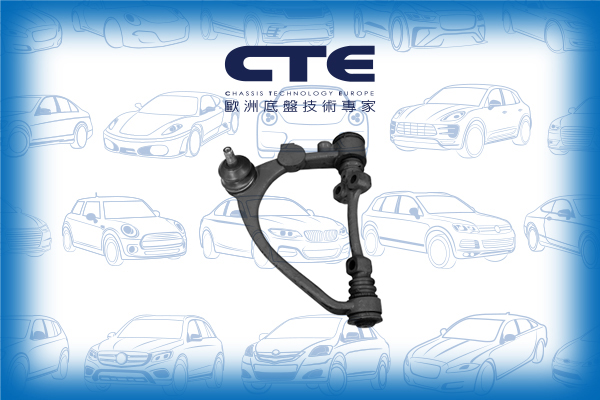

CS-250L | FRONT UPPER LH | 48067-26050 48067-29025 48067-29035 48067-29155 |
|
 |

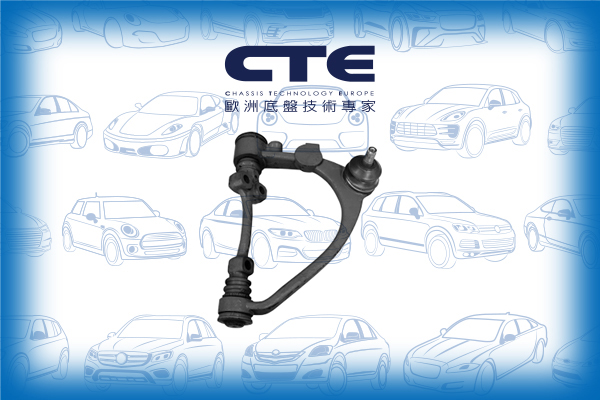

CS-250R | FRONT UPPER RH | 48066-26050 48066-29025 48066-29035 48066-29155 |
| Model (Year) |
|---|
|
HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) |
