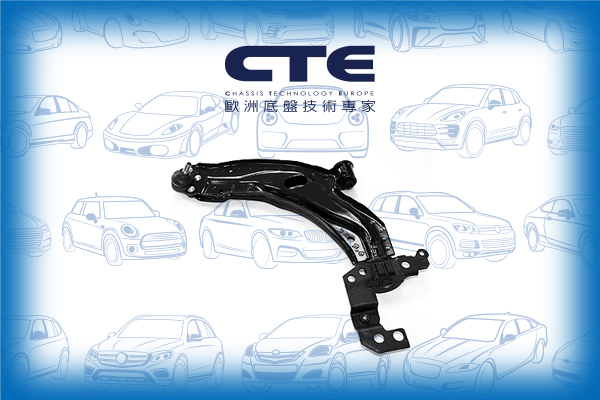

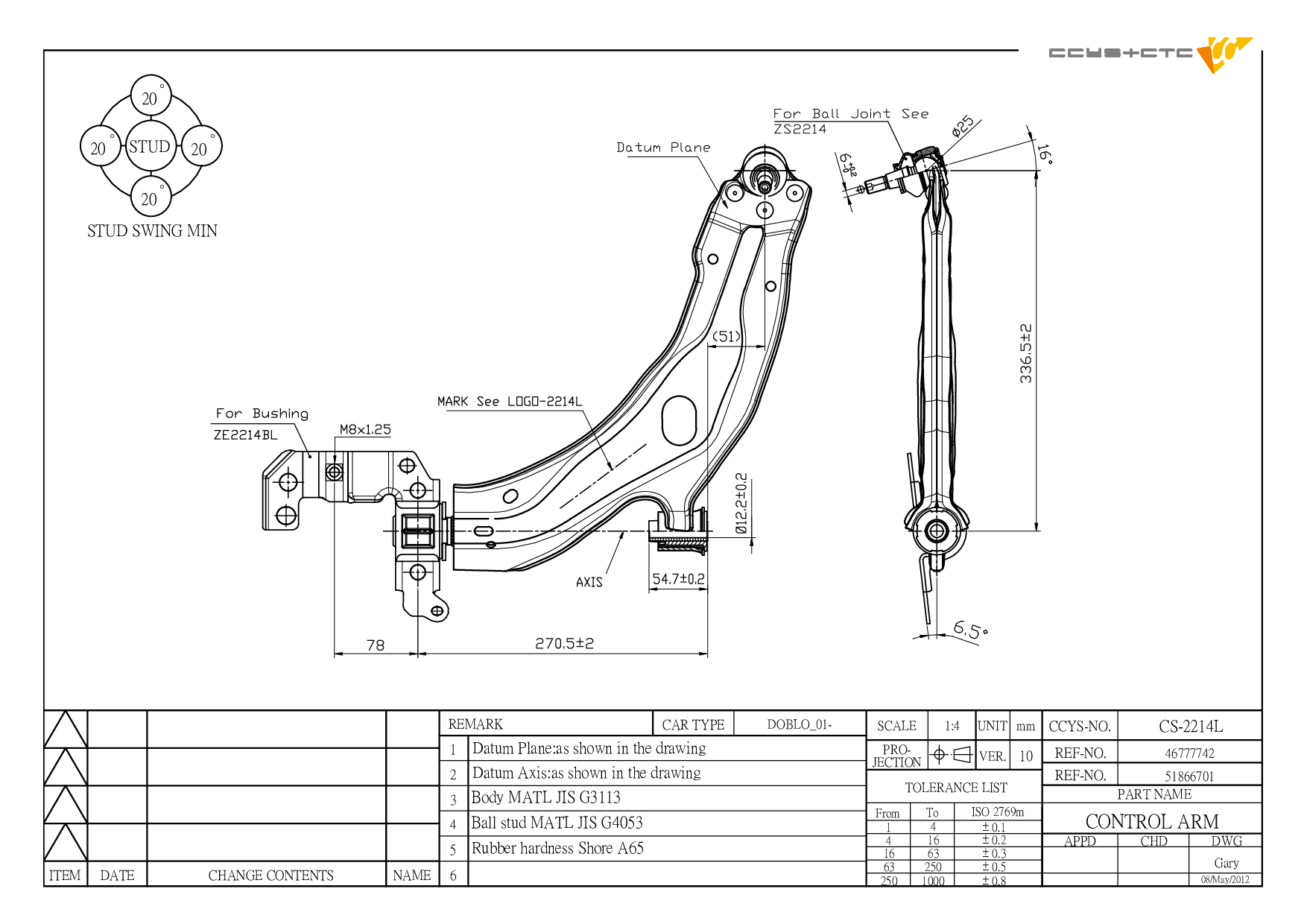

CS-2214L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 46539001 / 46777742 / 46779303 / 46794066 / 46813842 / 51712408 / 51747324 / 51764471 / 51769074 / 51866701 |
| Length | 512 mm |
| Width | 445.5 mm |
| Height | 98 mm |
| Net Weight | 3.42 kg |
FIAT DOBLO MPV, Van (119_,223_) Construction year to 11.2005 VET No. to 5023343, FIAT PALOP (178_,171_,371_) Model Year from 2002,2011 Vehicle Equipment for vehicles with power steering for model code 178BYA1AAT
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CS-2214L | FRONT LOWER LH | 46539001 46777742 46779303 46794066 46813842 51712408 51747324 51764471 51769074 51866701 |
|
 |

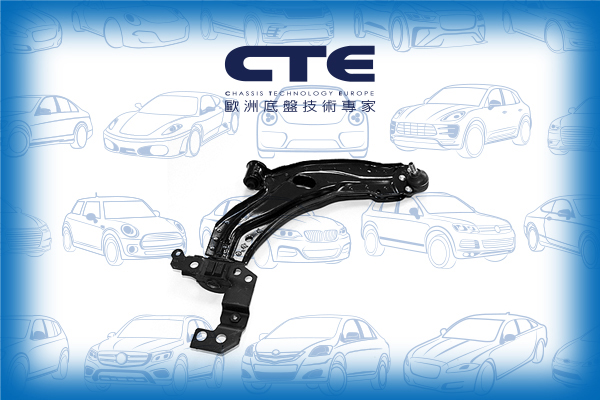

CS-2214R | FRONT LOWER RH | 46539000 46777741 46779302 46794065 46813841 51712407 51747323 51764470 51769073 51866700 |
| Model (Year) |
|---|
|
DOBLO Box Body/MPV (223_) DOBLO MPV (119_, 223_) PALIO (178BX) PALIO (178_, 171_) PALIO (178_, 171_, 371_) PALIO Weekend (178_, 173_, 373_, 374_, 171_) SIENA (178_, 172_, 372_) SIENA (178_, 172_, 372_) | ALBEA STRADA Pickup (178_, 278_) |
| Model (Year) |
|---|
|
PALIO Hatchback SIENA |
