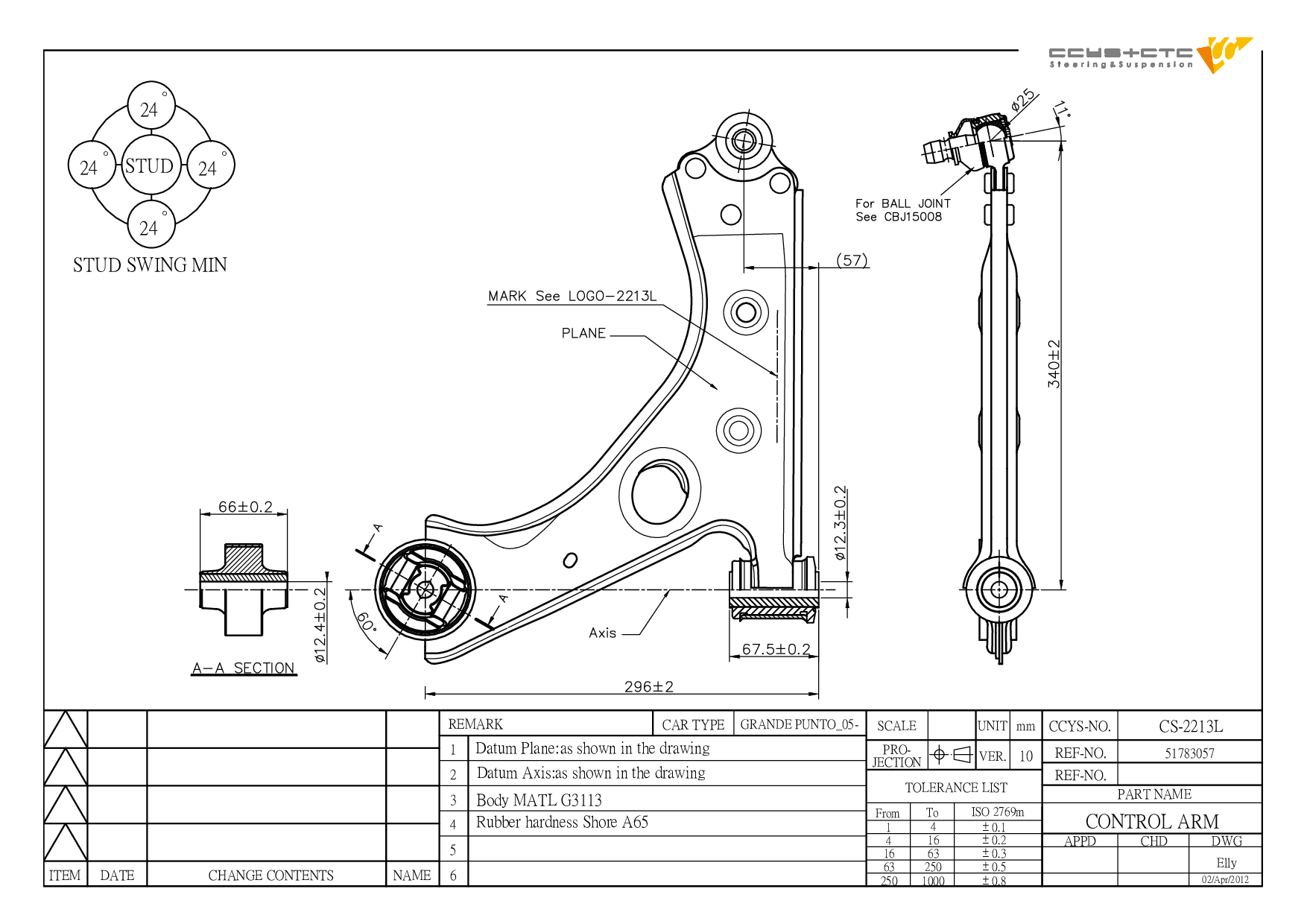

CS-2213L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 16 180 675 80 / 16 827 346 80 / 3520.W3 / 3520.Y4 / 51783057 / 51839040 / 51874462 / 51892272 / 51895367 / 52049871 / 55703629 |
| Length | 338 mm |
| Width | 416 mm |
| Height | 103 mm |
| Net Weight | 2.78 kg |
FIAT FIORINO MPV (225_) Engine code 199 B1.000
GRAND PUNTO (199_) Engine code 350 A1.000,199 B1.000 year to 03.2016
PUNTO EVO (199_) Hatchback Van (199_) year to 03.2016
GRAND PUNTO (199_) Engine code 350 A1.000,199 B1.000 year to 03.2016
PUNTO EVO (199_) Hatchback Van (199_) year to 03.2016
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH15019 | FRONT LOWER ARM INNER | 03 52 380 13260666 13426552 13426553 3 52 542 3 52 543 51783056 51783057 51892271 5352038 5352039 55703230 55703231 55703232 |
|
 |
CBH22019 | FRONT LOWER ARM REAR | 55700751 |
|
 |
CBJ15008A | FRONT LOWER LH/ RH | 3 52 067 352087 93188808 93190907 |
|
 |
CS-2213L | FRONT LOWER LH | 16 180 675 80 16 827 346 80 3520.W3 3520.Y4 51783057 51839040 51874462 51892272 51895367 52049871 55703629 |
|
 |
CS-2213R | FRONT LOWER RH | 16 180 674 80 16 827 344 80 3521.S6 3521.V5 50511650 51783056 51839039 51874461 51892273 51895366 52049873 55703627 |
|
 |
CSL22007 | FRONT AXLE LH/RH | 013321280 03 50 175 03 50 616 055700753 13321280 3 50 175 3 50 616 50515276 50531823 55700753 |
| Model (Year) |
|---|
|
GRANDE PUNTO PUNTO PUNTO EVO |
| Model (Year) |
|---|
|
MITO (955_) |
| Model (Year) |
|---|
|
NEMO Box Body/MPV (AA_) NEMO MPV |
| Model (Year) |
|---|
|
FIORINO Box Body/MPV (225_) FIORINO MPV (225_) GRANDE PUNTO (199_) GRANDE PUNTO Van (199_) LINEA (323_, 110_) PUNTO (188_) PUNTO (199_) PUNTO EVO (199_) PUNTO EVO Hatchback Van (199_) PUNTO Hatchback Van (199_) QUBO (225_) |
| Model (Year) |
|---|
|
BIPPER (AA_) BIPPER TEPEE |
