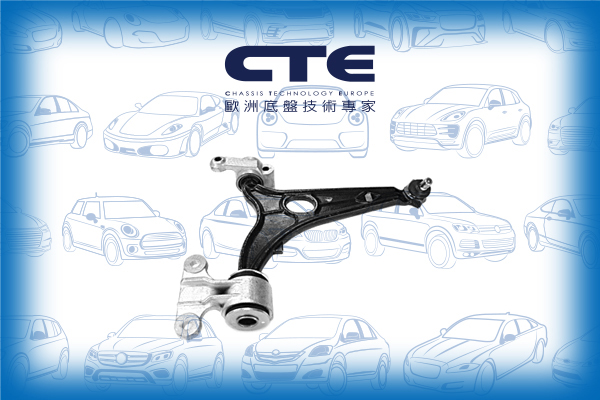

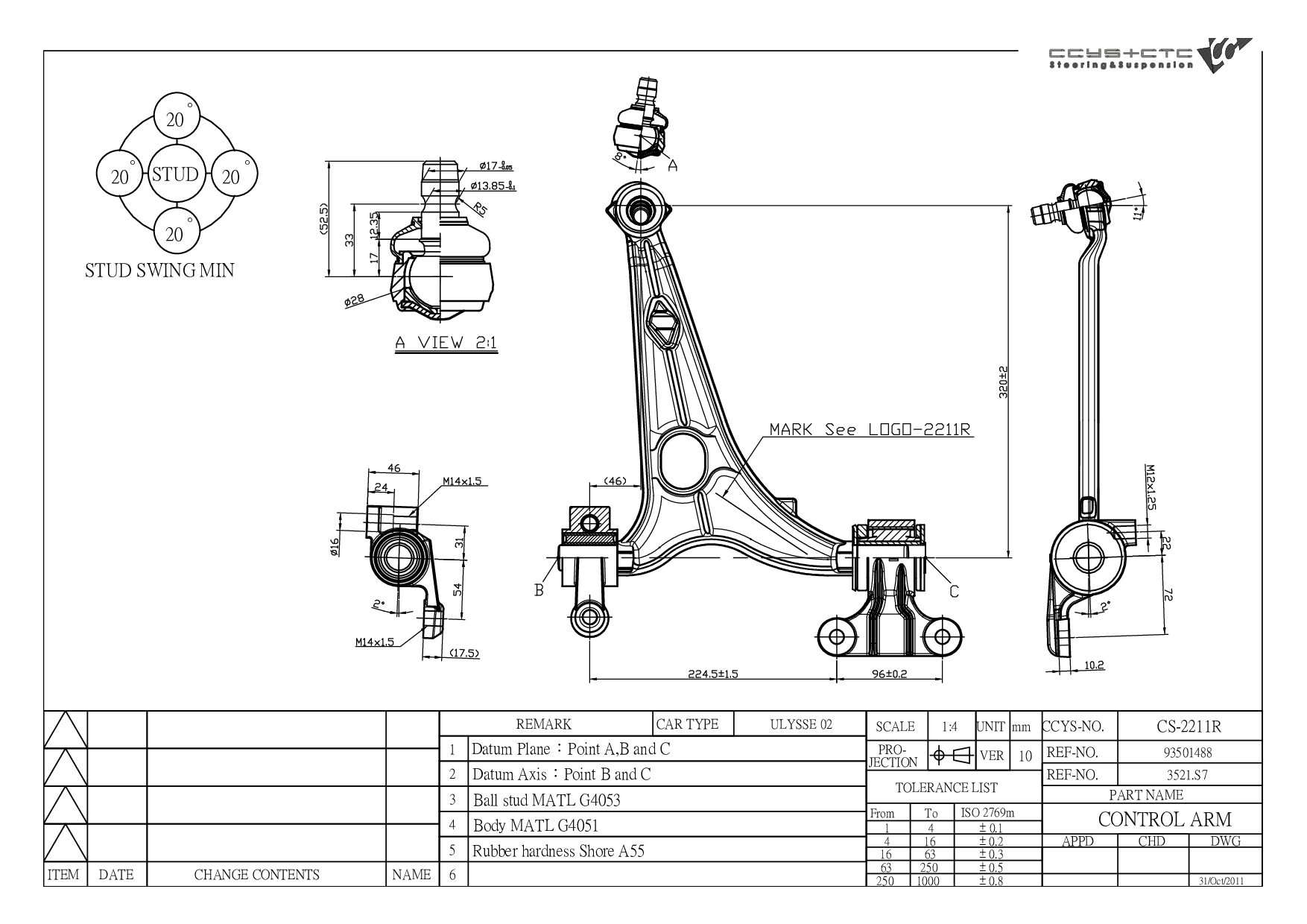

CS-2211R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 1346385080 / 1356061080 / 1359399080 / 1363096080 / 1368629080 / 1607302980 / 1607510780 / 3521.H1 / 3521.K6 / 3521.P6 / 3521.S7 / 3521.T2 / 93501488 |
| Length | 430 mm |
| Width | 366 mm |
| Height | 95 mm |
| Net Weight | 4.91 kg |
FIAT ULYSSE (179_) , LANCIA PHEDRA (179_) for PRO number from 10820 year from 07.2006, CITROEN (EA_,EB_) , PEUGEOT 807 (EB_) for PRO number from 10824
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH22015L | FRONT LOWER ARM LH REAR | 1401239580 1497408080 3520.R8 3520.V8 SU001-A0992 |
|
 |
CBH22015R | FRONT LOWER ARM RH REAR | 1401239480 1497407080 3521.N9 3521.S0 SU001-A0993 |
|
 |
CBH22016 | FRONT LOWER ARM INNER | 1401239480 1401239580 1497407080 1497408080 3520.R8 3520.V8 3520.W4 3521.N9 3521.S0 3521.S7 93501487 93501488 SU001-A0992 SU001-A0993 |
|
 |

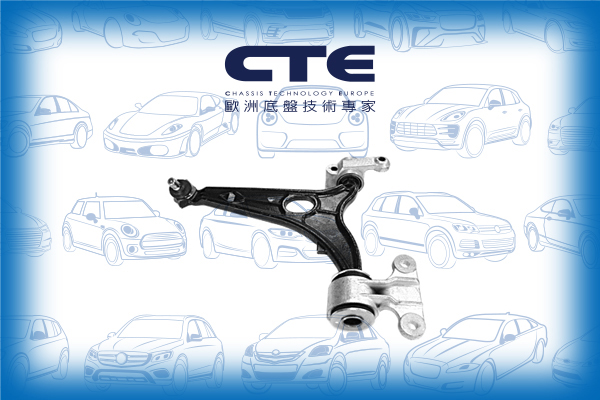

CS-2211L | FRONT LOWER LH | 1346384080 1356060080 1359398080 1363095080 1368628080 1607303080 1607510680 3520.S5 3520.W4 3520.X0 93501487 |
|
 |
CS-2211R | FRONT LOWER RH | 1346385080 1356061080 1359399080 1363096080 1368629080 1607302980 1607510780 3521.H1 3521.K6 3521.P6 3521.S7 3521.T2 93501488 |
|
 |
CSL25008 | FRONT (A= 263MM) | 1331209080 16 073 253 80 16 348 989 80 5087.51 |
| Model (Year) |
|---|
|
C8 (EA_, EB_) C8 Van (EA_, EB_) |
| Model (Year) |
|---|
|
ULYSSE (179_) |
| Model (Year) |
|---|
|
PHEDRA (179_) |
| Model (Year) |
|---|
|
807 (EB_) 807 Van (EB_) |
