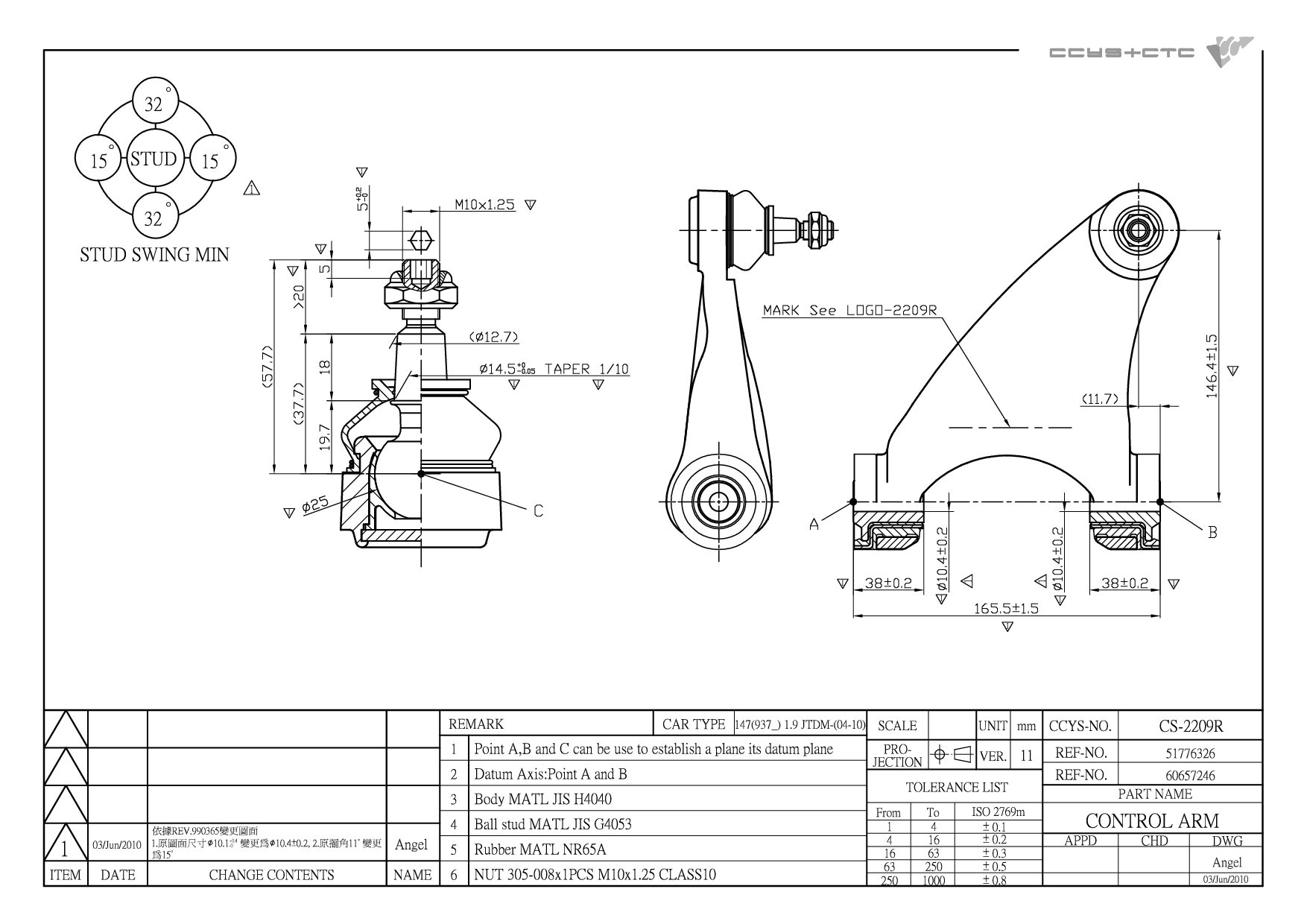

CS-2209R
| Designation | Control Arm |
| Position | FRONT UPPER RH |
| OE No. | 51776226 / 51776326 / 51834094 / 60651940 / 60654094 / 60657246 / 60666789 |
| Length | 175.2 mm |
| Width | 193.5 mm |
| Height | 90 mm |
| Net Weight | 1.18 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH22011 | FRONT UPPER ARM INNER | 60651736 |
|
 |
CBH22012L | FRONT LOWER ARM LH REAR | 50509340 60652465 60678134 60686891 |
|
 |
CBH22012R | FRONT LOWER ARM RH REAR | 50509339 60652466 60678135 60686892 |
|
 |
CBH22013L | FRONT LOWER ARM LH INNER | 50509339 50509340 60652465 60652466 60678134 60678135 60686891 60686892 |
|
 |
CBH22013R | FRONT LOWER ARM RH INNER | 50509339 50509340 60652465 60652466 60678134 60678135 60686891 60686892 |
|
 |
COS22002 | FRONT | ||
 |
CS-2209L | FRONT UPPER LH | 51776327 51834093 60651939 60651941 60654093 60657245 60666787 |
|
 |
CS-2209R | FRONT UPPER RH | 51776226 51776326 51834094 60651940 60654094 60657246 60666789 |
|
 |
CS-2210L | FRONT LOWER LH | 50509340 60652465 60678134 60686891 |
|
 |
CS-2210R | FRONT LOWER RH | 50509339 60652466 60678135 60686892 |
| Model (Year) |
|---|
|
147 (937_) 156 (932_) 156 Sportwagon (932_) GT (937_) |
