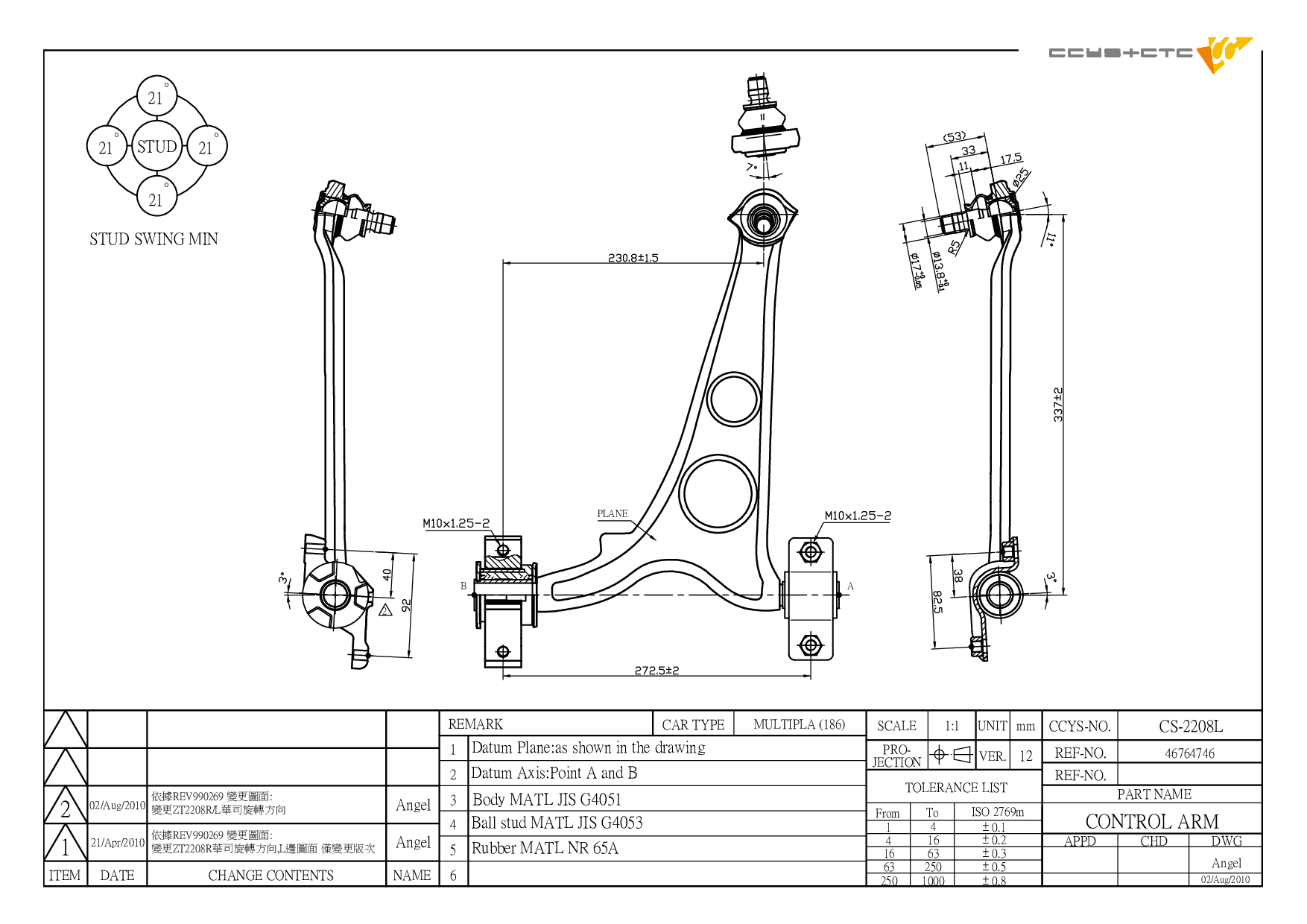

CS-2208L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 46525407 / 46764746 / 51832937 |
| Length | 323 mm |
| Width | 432 mm |
| Height | 82.1 mm |
| Net Weight | 3.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH22009L | FRONT LOWER ARM LH REAR | 46525407 46764746 51832937 |
|
 |
CBH22009R | FRONT LOWER ARM RH REAR | 46522142 46764747 51832938 |
|
 |
CRE22001 | D= M14X1.5 , C= M14X1.5 | 3812.A4 |
|
 |
CS-2208L | FRONT LOWER LH | 46525407 46764746 51832937 |
|
 |
CS-2208R | FRONT LOWER RH | 46522142 46764747 51832938 |
|
 |
CSL22003 | FRONT (A= 274MM) | 0046545743 0060813377 46413122 46545743 51701045 60813377 |
| Model (Year) |
|---|
|
MULTIPLA (186_) |
