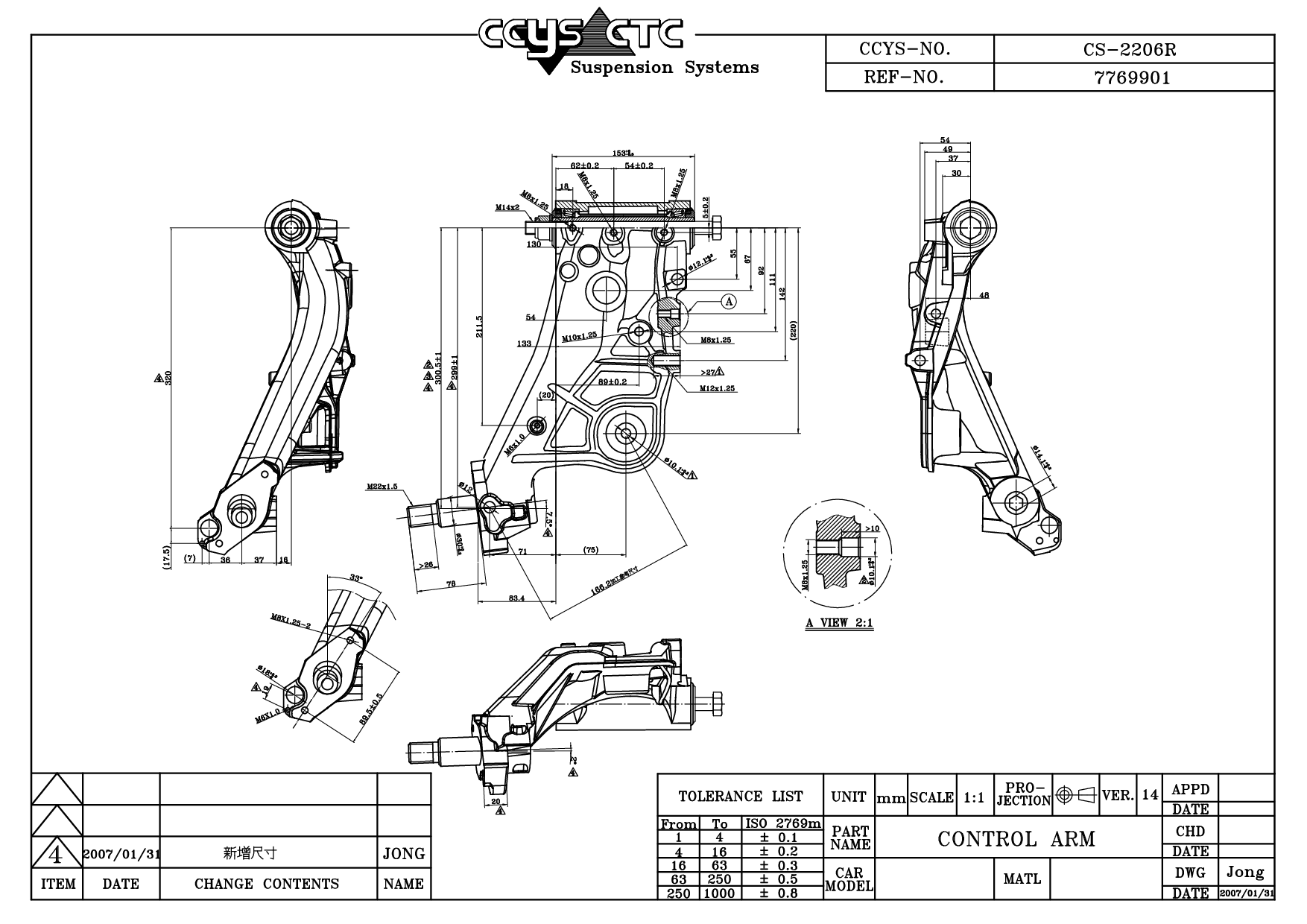

CS-2206R
| Designation | Control Arm |
| Position | REAR LOWER RH |
| OE No. | 7769901 |
| Length | 380 mm |
| Width | 331 mm |
| Height | 168 mm |
| Net Weight | 6.82 kg |
FIAT PUNTO (176_) , CONVERTIBLE, VAN (176_) Engine Code 176 B1.000, Breaking
Drive Dynamics for vehicles with ABS, LANCIA Y (840_) Construction Year to 12.2000, Breaking
Drive Dynamics for vehicles with ABS
Drive Dynamics for vehicles with ABS, LANCIA Y (840_) Construction Year to 12.2000, Breaking
Drive Dynamics for vehicles with ABS
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

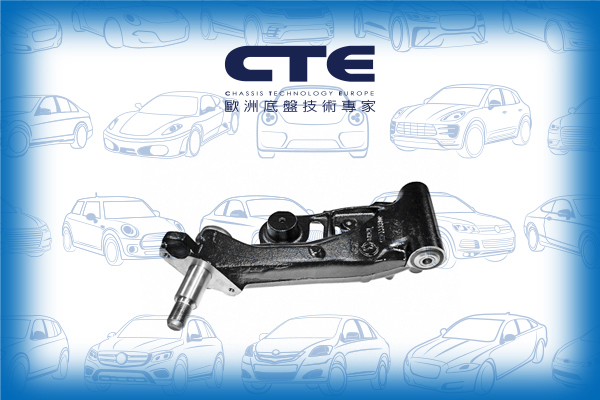

CS-2203L | REAR LOWER LH | 7736514 |
|
 |

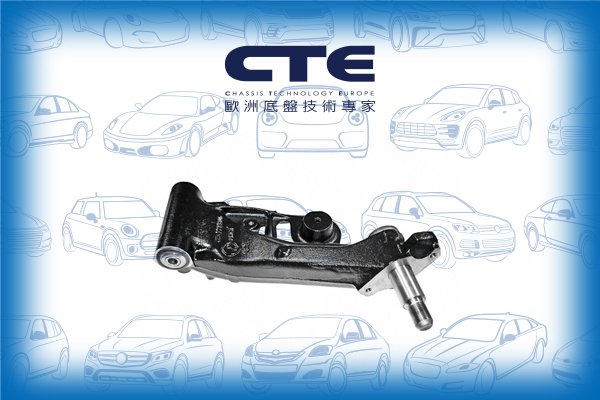

CS-2203R | REAR LOWER RH | 1316736080 7736515 |
|
 |
CS-2206L | REAR LOWER LH | 7769900 |
|
 |
CS-2206R | REAR LOWER RH | 7769901 |
|
 |
CS-99019 | REAR AXLE | 0773 6515 17736515 17736515 S1 |
| Model (Year) |
|---|
|
PUNTO (176_) PUNTO Convertible (176_) PUNTO Van (176_) |
| Model (Year) |
|---|
|
Y (840_) |
