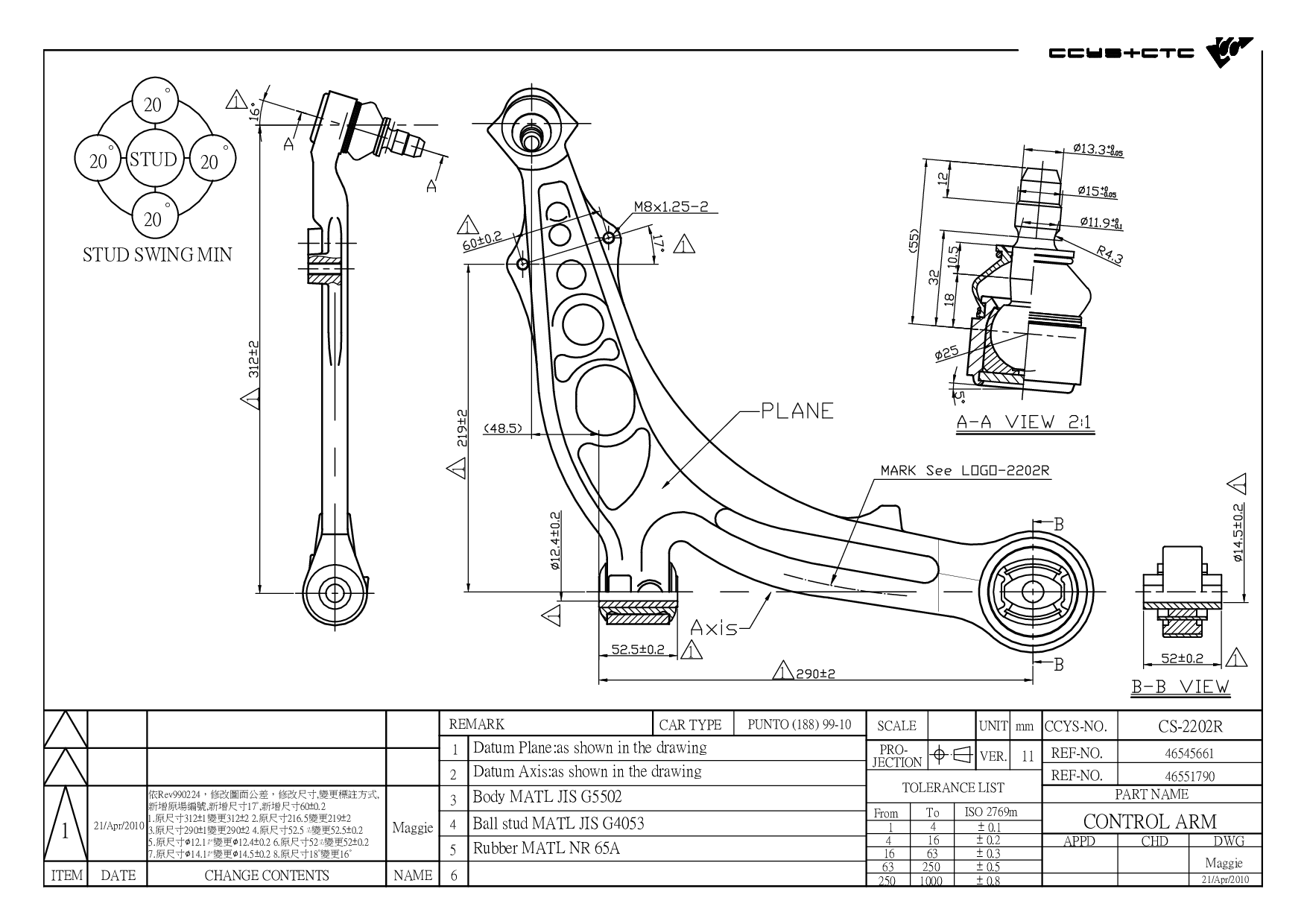

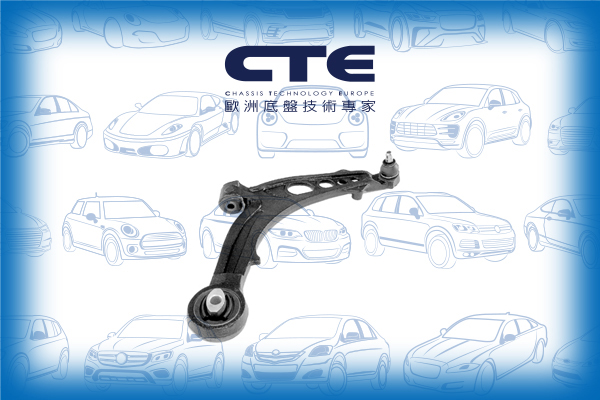

CS-2202R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 46545661 / 46551790 / 51842193 |
| Length | 405 mm |
| Width | 377 mm |
| Height | 81.6 mm |
| Net Weight | 3.87 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

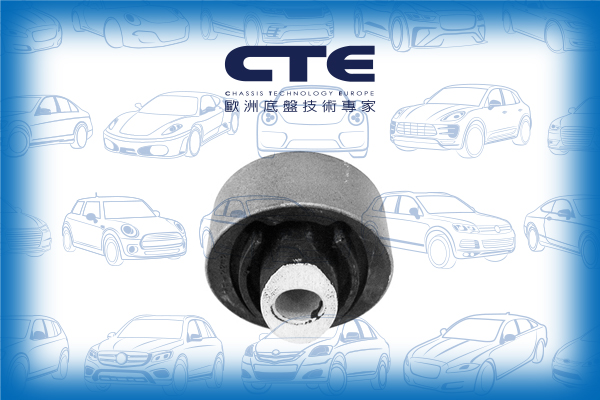

CBH22001 | FRONT LOWER ARM REAR | 46545660 46545661 46551732 46551790 50703231 51842192 51842193 8516050 |
|
 |

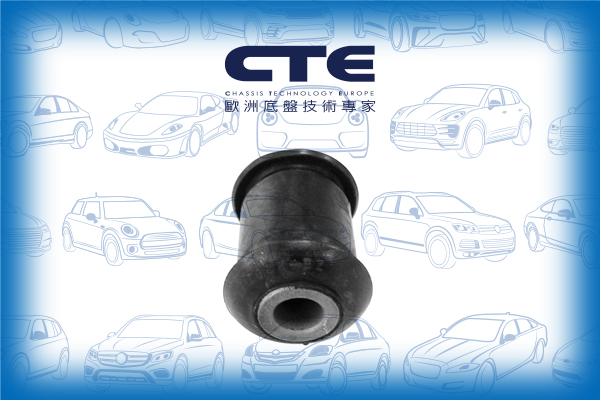

CBH22002 | FRONT LOWER ARM INNER | 46545660 46545661 46551732 46551790 51842192 51842193 |
|
 |

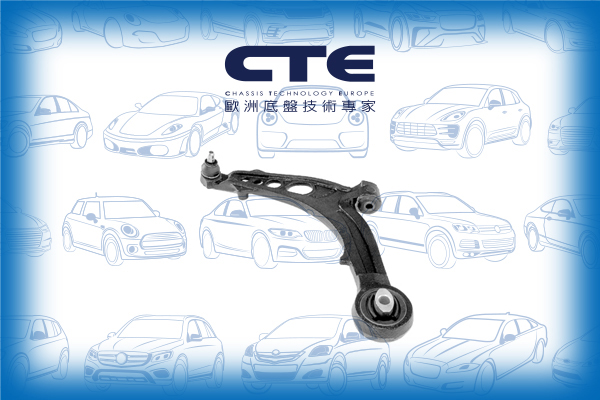

CS-2202L | FRONT LOWER LH | 46545660 46551732 51842192 |
|
 |
CS-2202R | FRONT LOWER RH | 46545661 46551790 51842193 |
| Model (Year) |
|---|
|
PUNTO (188_) PUNTO Hatchback Van (188_) |
