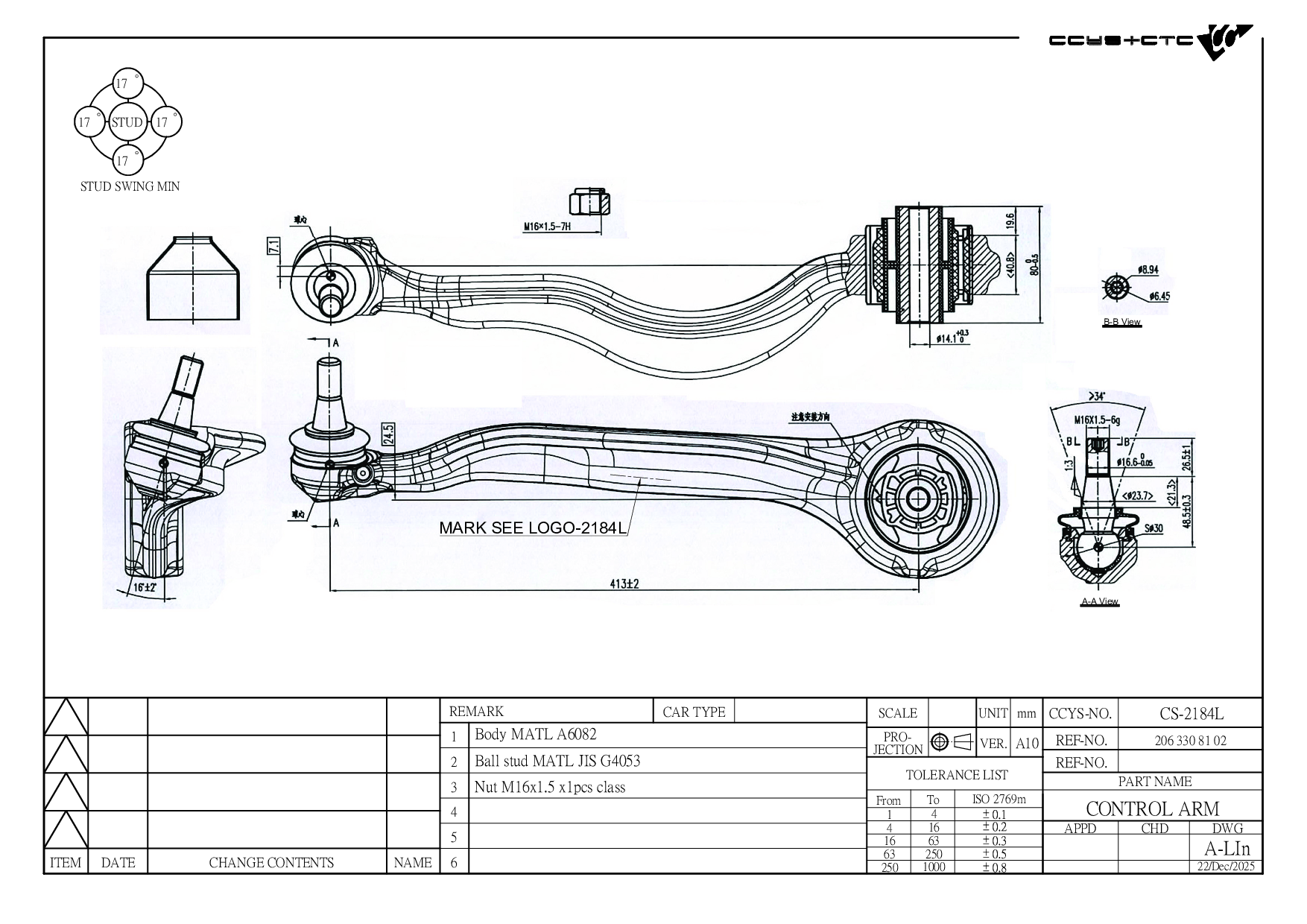

CS-2184L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 206 330 81 02 / A206 330 81 02 |
| Length | 413 mm |
| Width | 132 mm |
| Height | 120 mm |
| Net Weight | 2.18 kg |
(W206) (S206) Drive Type: Rear-Wheel drive
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21075 | FRONT LOWER ARM INNER | 206 330 81 02 206 330 82 02 206 330 83 02 206 330 84 02 214 333 12 00 A206 330 81 02 A206 330 82 02 A206 330 83 02 A206 330 84 02 A214 333 12 00 |
|
|
CS-2184L | FRONT LOWER LH | 206 330 81 02 A206 330 81 02 |
|
|
CS-2184R | FRONT LOWER RH | 206 330 82 02 A206 330 82 02 |
|
|
CS-2186 | FRONT LOWER LH/ RH | 206 330 51 02 206 330 52 02 A206 330 51 02 A206 330 52 02 |
|
|
CS-2193L | FRONT UPPER LH | 206 330 21 00 A206 330 21 00 |
|
|
CS-2193R | FRONT UPPER RH | 206 330 22 00 A206 330 22 00 |
| Model (Year) |
|---|
|
C-CLASS (W206) C-CLASS T-MODEL (S206) |
