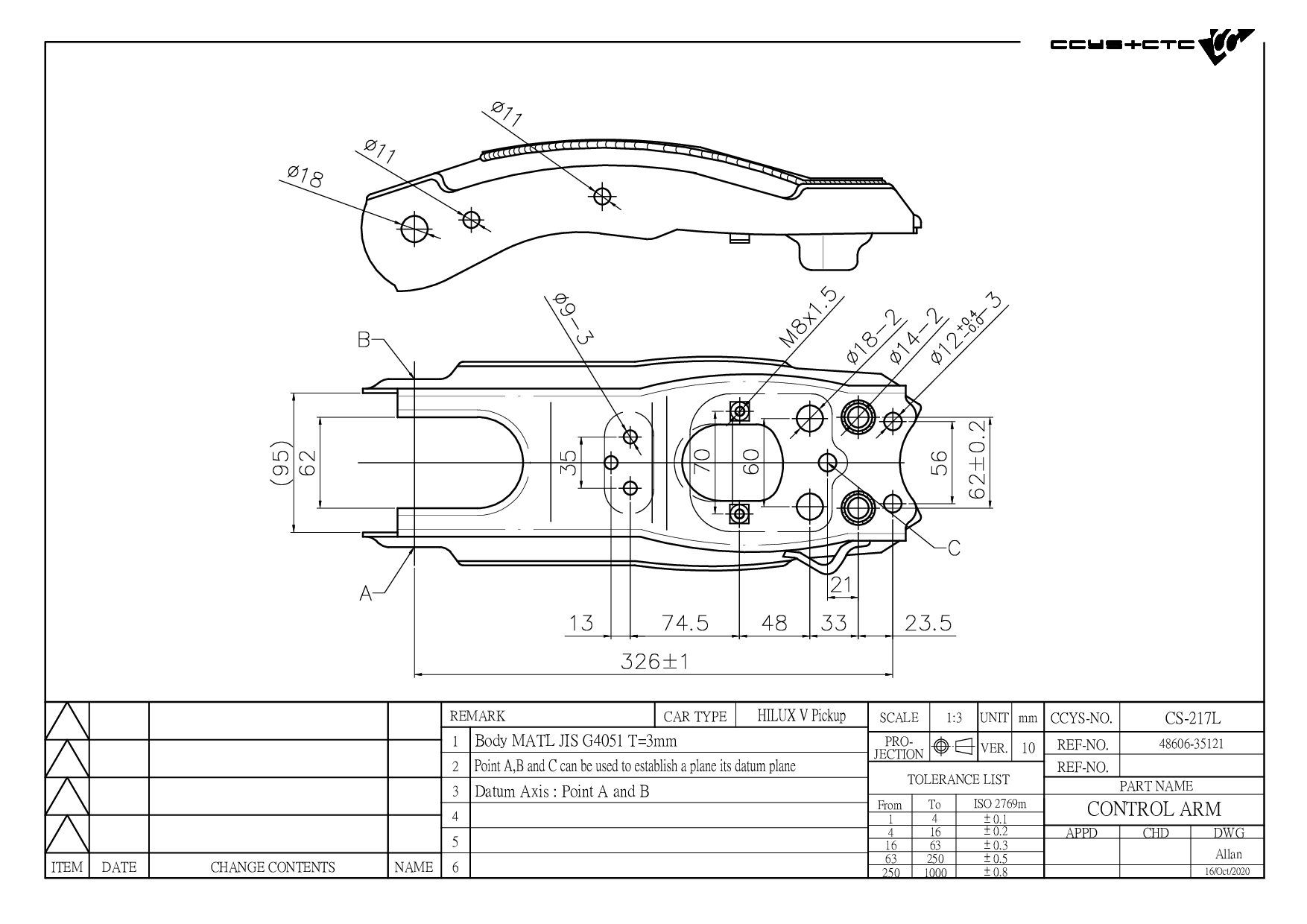

CS-217L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 48606-35120 / 48606-35121 |
| Length | 380 mm |
| Width | 160 mm |
| Height | 80 mm |
| Net Weight | 2.75 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ02004 | FRONT LOWER LH/ RH | 43330-39135 43330-39275 43330-39345 |
|
 |
CBJ02008 | FRONT LOWER LH/ RH | 43330-39265 43330-39315 43330-39835 43340-39245 J43 330 393 15 J43 340 392 45 |
|
 |
CBJ02008A | FRONT LOWER LH/ RH | 43330-39265 43330-39315 43330-39835 43340-39245 J43 330 393 15 J43 340 392 45 |
|
 |
CBJ02024 | FRONT LOWER LH/RH | 43330-09295 43330-09490 43330-09510 48068-04030 48068-04040 48068-04060 48068-0K090 48069-04030 48069-04040 48069-04060 48069-0K090 |
|
 |
CS-211L | FRONT AXLE LH | 48606-35030 |
|
 |
CS-211R | FRONT AXLE RH | 48605-35030 |
|
 |
CS-217L | FRONT LOWER LH | 48606-35120 48606-35121 |
|
 |
CS-217R | FRONT LOWER RH | 48605-35120 48605-35121 |
| Model (Year) |
|---|
|
HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) | TACOMA | PICKUP | HILUX MIGHTY X |
