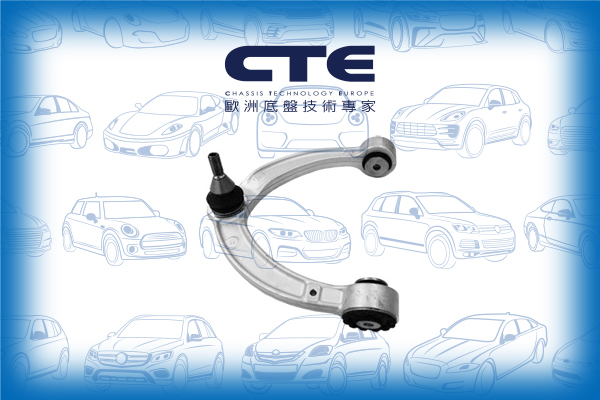

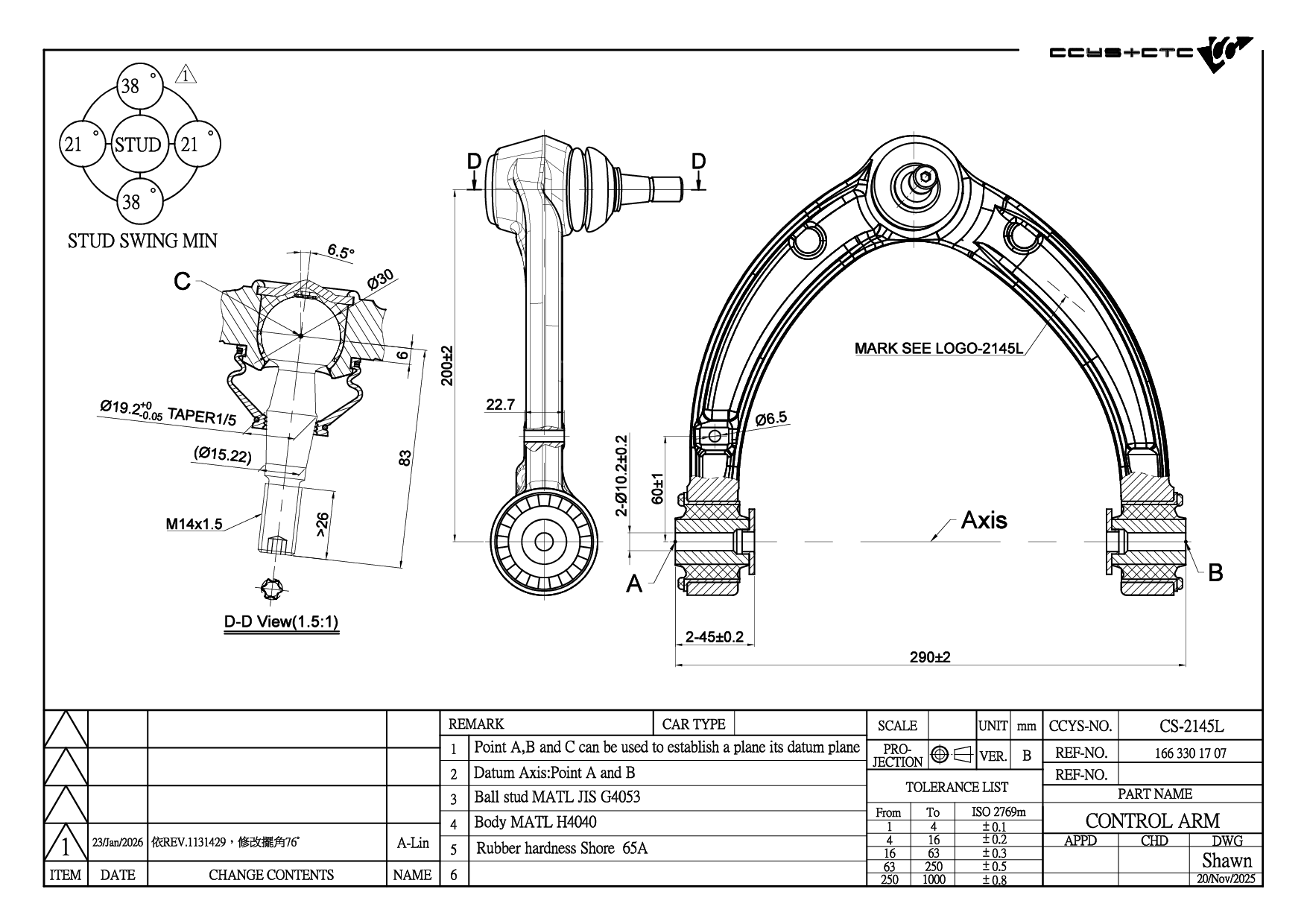

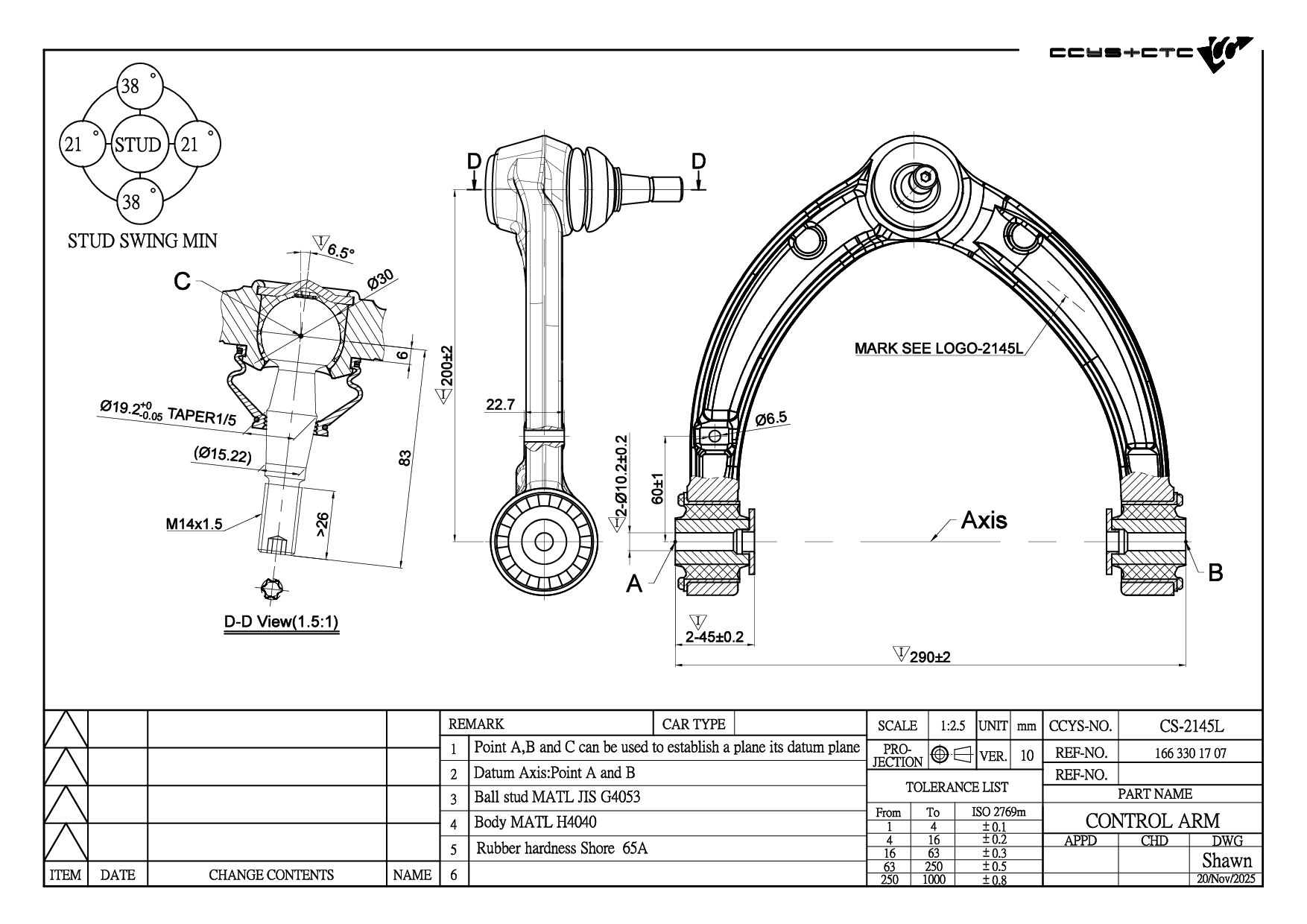

CS-2145L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 166 330 17 07 / A166 330 17 07 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 1.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21046L | FRONT LOWER ARM LH REAR | 166 330 01 43 |
|
|

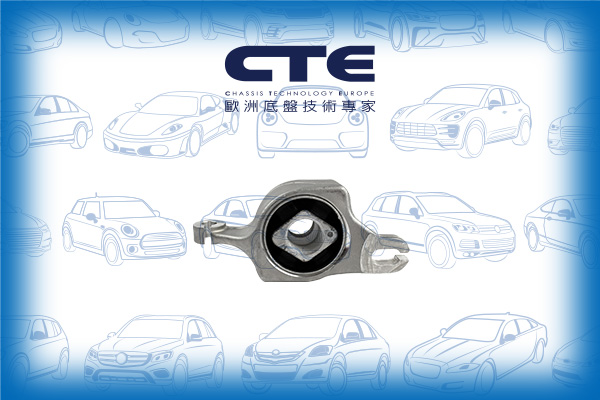

CBH21046R | FRONT LOWER ARM RH REAR | 166 330 02 43 |
|
|
CBH21047 | FRONT LOWER ARM INNER | 166 333 02 00 |
|
|
CBH21048 | FRONT LOWER ARM OUTER | 166 333 01 00 |
|
 |
CBH21066 | FRONT UPPER ARM INNER | 166 330 17 07 166 330 18 07 251 330 07 07 251 330 08 07 251 330 25 00 251 330 26 00 A166 330 17 07 A166 330 18 07 A251 330 07 07 A251 330 08 07 A251 330 25 00 A251 330 26 00 |
|
 |
CBJ21011 | FRONT AXLEX LH/RH | 166 330 02 35 A166 330 02 35 |
|
 |
CS-2145L | FRONT UPPER LH | 166 330 17 07 A166 330 17 07 |
|
 |
CS-2145R | FRONT UPPER RH | 166 330 18 07 A166 330 18 07 |
|
|
CS-2163L | FRONT LOWER LH | 166 330 01 07 |
|
|
CS-2163R | FRONT LOWER RH | 166 330 02 07 |
| Model (Year) |
|---|
|
GL-CLASS (X166) GLE (W166) GLE Coupe (C292) GLS (X166) M-CLASS (W166) |
