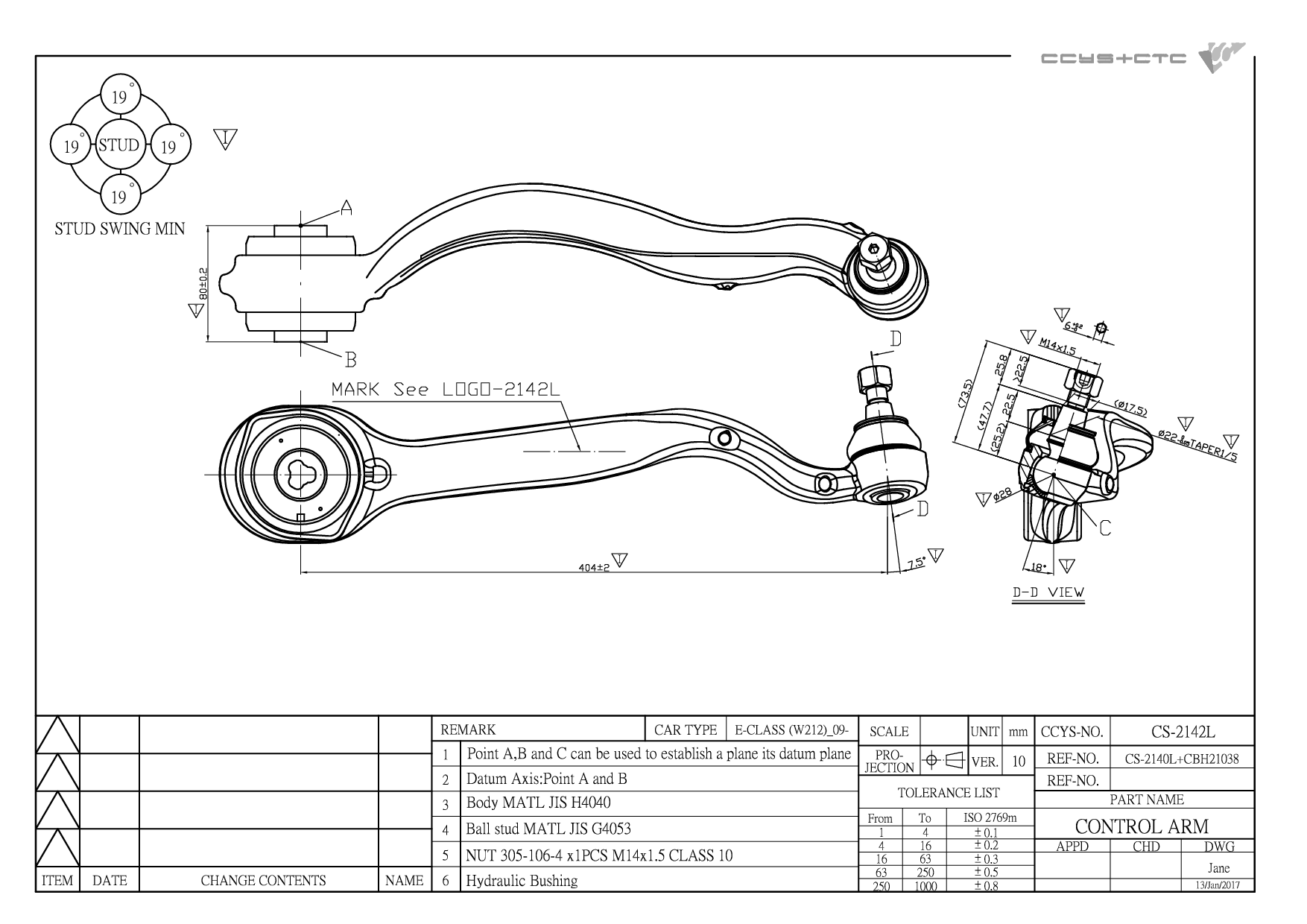

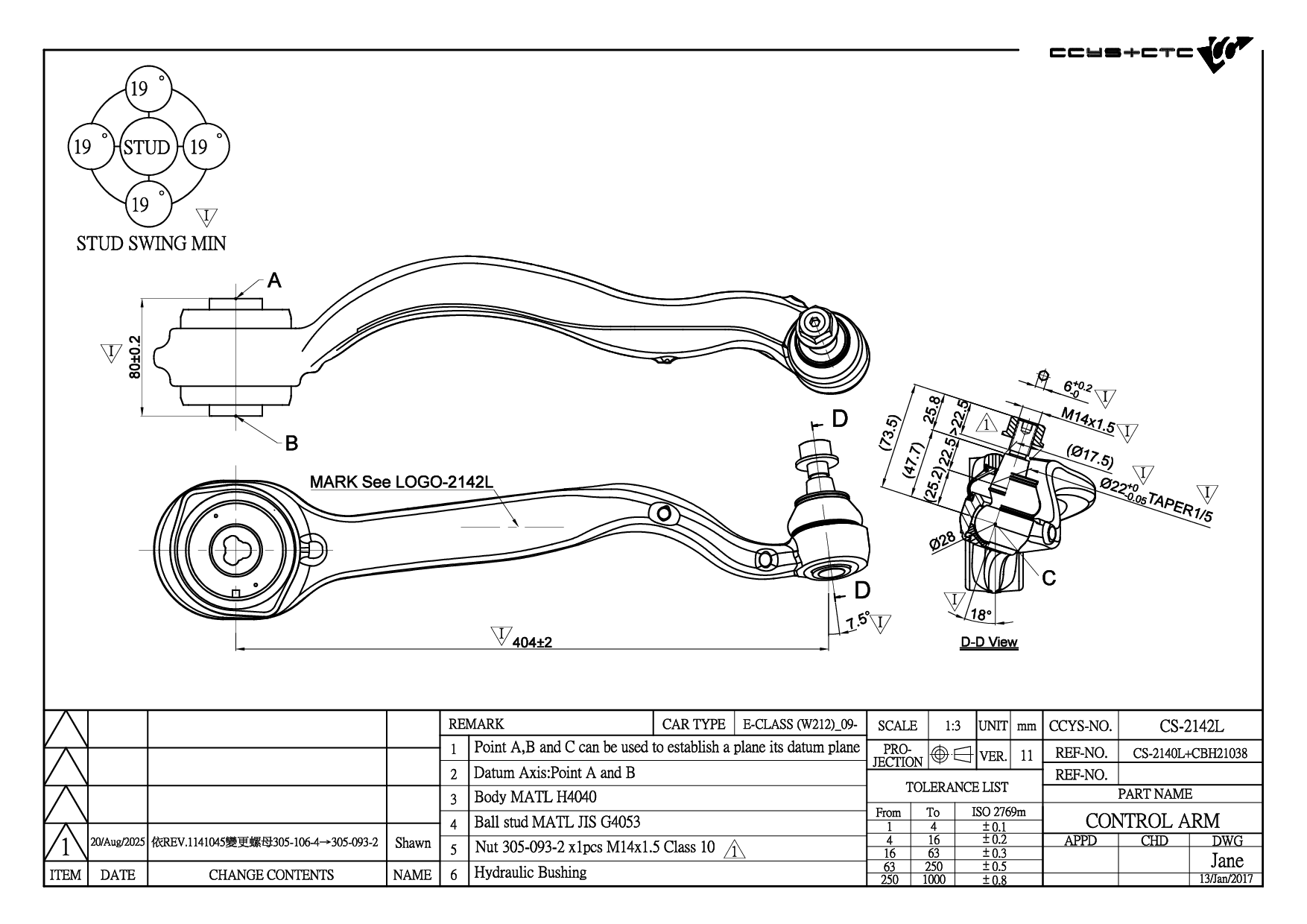

CS-2142L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 212 330 27 11 / A212 330 27 11 / CS-2140L+CBH21038 |
| Length | 488 mm |
| Width | 109 mm |
| Height | 122 mm |
| Net Weight | 2.07 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21030 | FRONT UPPER ARM INNER | 204 350 00 29 204 350 27 06 204 352 12 05 205 350 63 03 230 350 35 06 230 350 36 06 A204 350 00 29 A204 350 27 06 A204 352 12 05 A205 350 63 03 |
|
 |
CBH21038 | FRONT UPPER ARM INNER | 212 333 00 14 A212 333 00 14 |
|
 |
CBH21039 | FRONT LOWER ARM INNER | 212 333 05 14 |
|
 |
CBH21060 | REAR AXLE LOWER ARM INNER | 204 350 05 53 204 350 06 53 205 350 65 03 205 350 66 03 A204 350 05 53 A204 350 06 53 A205 350 65 03 A205 350 66 03 |
|
 |
CBH21061 | REAR AXLE LOWER ARM OUTER | 204 350 05 53 204 350 06 53 205 350 65 03 205 350 66 03 A204 350 05 53 A204 350 06 53 A205 350 65 03 A205 350 66 03 |
|
 |
CBH21062 | REAR UPPER ARM | 204 350 15 06 204 350 16 06 205 350 61 03 205 350 62 03 A204 350 15 06 A204 350 16 06 A205 350 61 03 A205 350 62 03 |
|
 |
CBH21063 | REAR UPPER ARM | 204 350 15 06 204 350 16 06 205 350 61 03 205 350 62 03 A204 350 15 06 A204 350 16 06 A205 350 61 03 A205 350 62 03 |
|
 |
CBH21067 | REAR UPPER ARM | 204 350 21 06 204 350 22 06 A204 350 21 06 A204 350 22 06 |
|
|
CBH21068 | REAR UPPER ARM | 204 350 21 06 204 350 22 06 A204 350 21 06 A204 350 22 06 |
|
 |
CBJ21009 | FRONT LOWER LH/RH | 212 330 00 35 212 330 01 35 A212 330 00 35 A212 330 01 35 |
|
 |
CS-2141L | FRONT LOWER LH | 212 330 29 11 212 330 39 00 |
|
 |
CS-2141R | FRONT LOWER RH | 212 330 30 11 212 330 40 00 |
|
 |
CS-2142L | FRONT UPPER LH | 212 330 27 11 A212 330 27 11 CS-2140L+CBH21038 |
|
 |
CS-2142R | FRONT UPPER RH | 212 330 28 11 A212 330 28 11 CS-2140R+CBH21038 |
|
 |
CS-2167L | REAR AXLE UPPER LH | 204 350 21 06 A204 350 21 06 |
|
 |
CS-2167R | REAR AXLE UPPER RH | 204 350 22 06 A204 350 22 06 |
|
 |
CS-2168L | REAR AXLE LOWER LH | 204 350 05 53 205 350 65 03 A204 350 05 53 A205 350 65 03 |
|
 |
CS-2168R | REAR AXLE LOWER RH | 204 350 06 53 205 350 66 03 A204 350 06 53 A205 350 66 03 |
|
 |
CS-2169L | REAR AXLE UPPER LH | 204 350 15 06 204 350 30 06 205 350 61 03 A204 350 15 06 A204 350 30 06 A205 350 61 03 |
|
 |
CS-2169R | REAR AXLE UPPER RH | 204 350 16 06 204 350 31 06 205 350 62 03 A204 350 16 06 A204 350 31 06 A205 350 62 03 |
|
|
CS-2170 | REAR AXLE LOWER LH/RH | 204 350 00 29 204 350 27 06 204 352 12 05 205 350 63 03 A204 350 00 29 A204 350 27 06 A204 352 12 05 A205 350 63 03 |
|
 |
CSL21023L | REAR LH | 204 320 05 89 A204 320 05 89 |
|
 |
CSL21023R | REAR RH | 204 320 04 89 A204 320 04 89 |
|
 |
CSL21025L | FRONT LH (A= 325MM) | 212 320 11 89 A212 320 11 89 |
|
 |
CSL21025R | FRONT RH (A= 325MM) | 212 320 12 89 A212 320 12 89 |
| Model (Year) |
|---|
|
E-CLASS (W212) E-CLASS T-Model (S212) |
