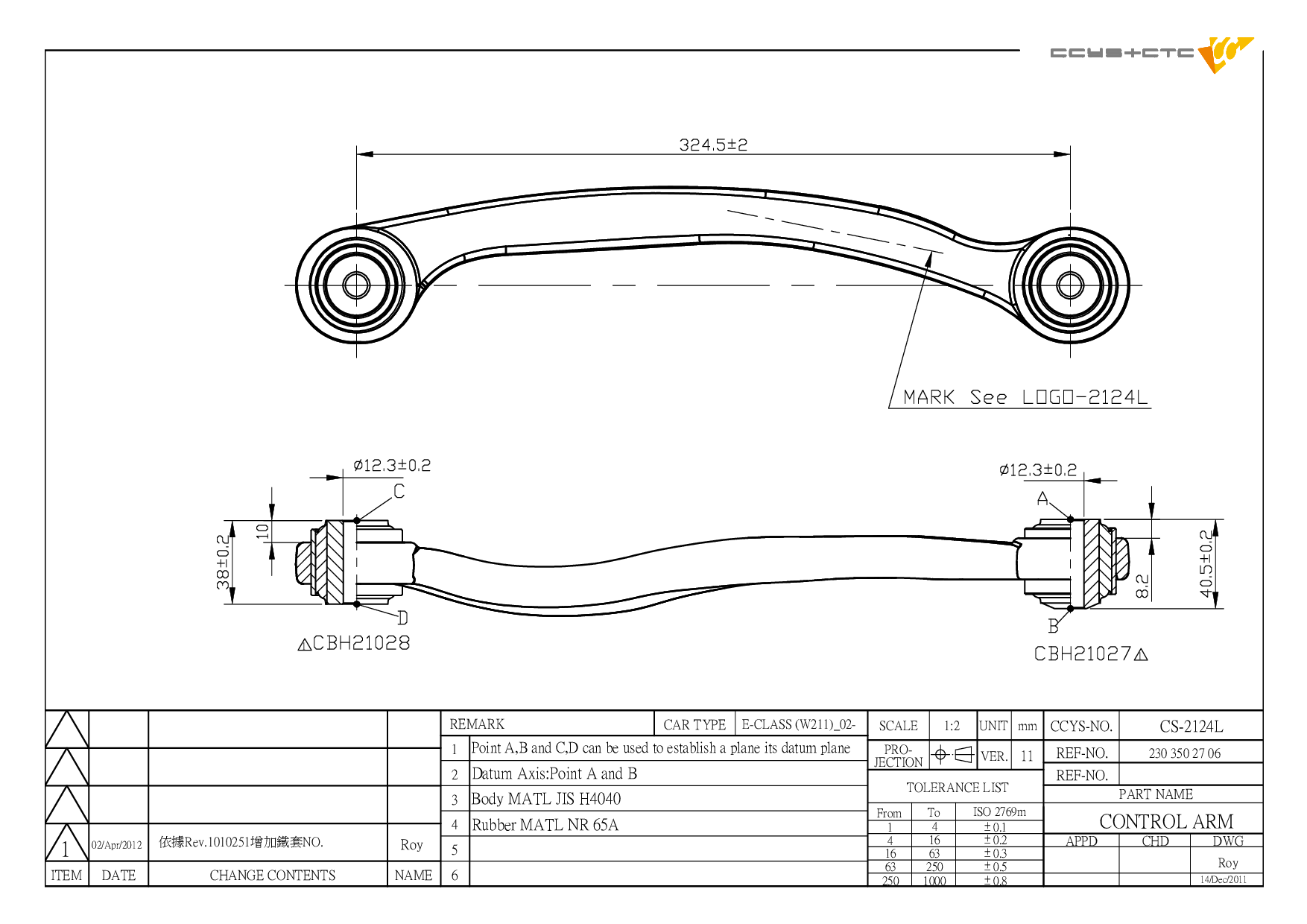

CS-2124L
| Designation | Control Arm |
| Position | REAR UPPER LH |
| OE No. | 230 350 27 06 / A230 350 27 06 |
| Length | 378.85 mm |
| Width | 71.1 mm |
| Height | 36 mm |
| Net Weight | 0.47 kg |
E-class (W211) E-class T-Model (S211) not for SA Code Z04 Special Purpose Vehicle not for armoured vehicles
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21027 | FRONT UPPER ARM OUTER | 230 350 27 06 230 350 28 06 |
|
 |
CBH21028 | FRONT UPPER ARM INNER | 230 350 27 06 230 350 28 06 |
|
 |
CBJ21002 | FRONT LOWER LH/ RH | 05099237AA 05099237AB 202 333 00 27 210 330 00 35 210 330 04 27 210 333 04 27 211 330 03 35 220 330 06 35 310 333 04 27 5099237AA 5099237AB A202 333 00 27 A210 330 00 35 A210 330 04 27 A210 333 04 27 A211 330 03 35 A220 330 06 35 A310 333 04 27 K05099237A |
|
 |
CRE21001 | D= M14X1.5 , C= M16X1.5 | 211 330 29 03 211 330 29 03 SK 220 338 07 15 230 338 00 15 230 338 00 15 SK A211 330 29 03 A220 338 07 15 A230 338 00 15 |
|
 |
CS-2124L | REAR UPPER LH | 230 350 27 06 A230 350 27 06 |
|
 |
CS-2124R | REAR UPPER RH | 230 350 28 06 A230 350 28 06 |
|
 |
CS-2125L | REAR UPPER LH | 230 350 31 06 230 350 35 06 A 230 350 31 06 A 230 350 35 06 |
|
 |
CS-2125R | REAR UPPER RH | 230 350 32 06 230 350 36 06 A 230 350 32 06 A 230 350 36 06 |
|
 |

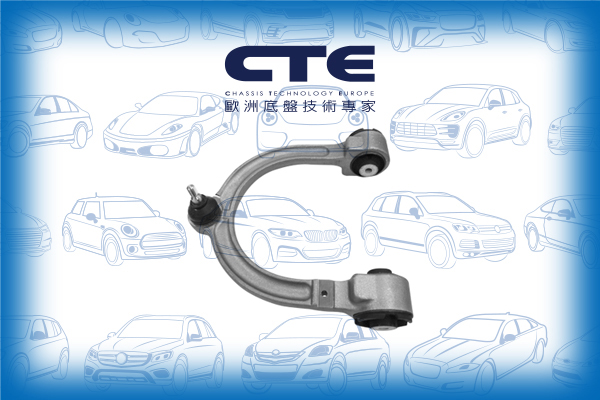

CS-2137L | FRONT UPPER LH | 211 330 55 07 211330550728 A211 330 55 07 A211330550728 |
|
 |

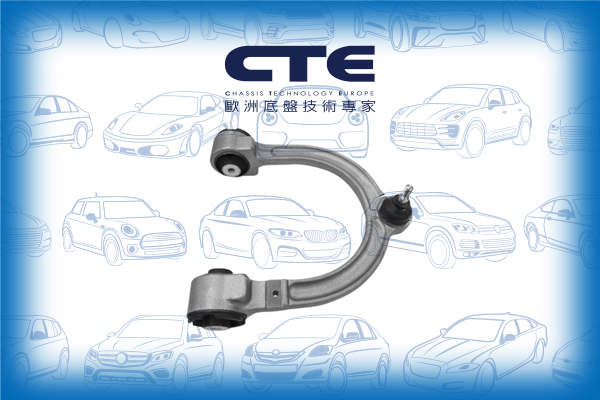

CS-2137R | FRONT UPPER RH | 211 330 57 07 211330570728 A211 330 57 07 A211330570728 |
|
 |
CSL21041 | REAR AXLE LH/RH | 211 320 08 89 211 320 33 89 A211 320 08 89 A211 320 33 89 |
|
 |

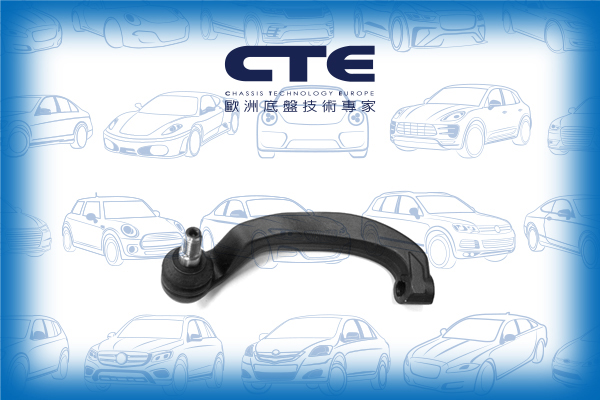

CTE21008L | FRONT AXLE LH (C= M14X1.5) | 220 338 13 15 482 1 048 1 005 A220 338 13 15 |
|
 |

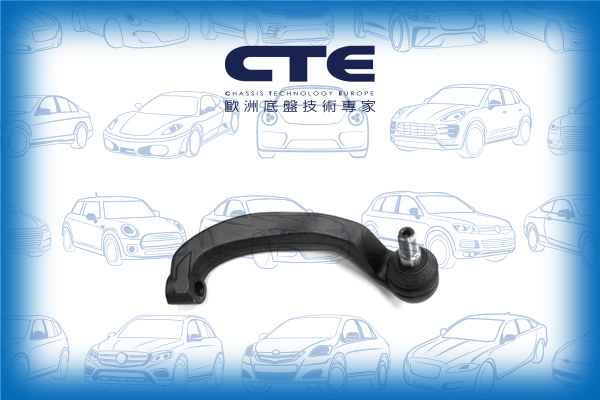

CTE21008R | FRONT AXLE RH (C= M14X1.5) | 220 338 14 15 482 1 048 1 006 A220 338 14 15 |
| Model (Year) |
|---|
|
CLS (C219) E-CLASS (W211) E-CLASS T-Model (S211) SL (R230) |
