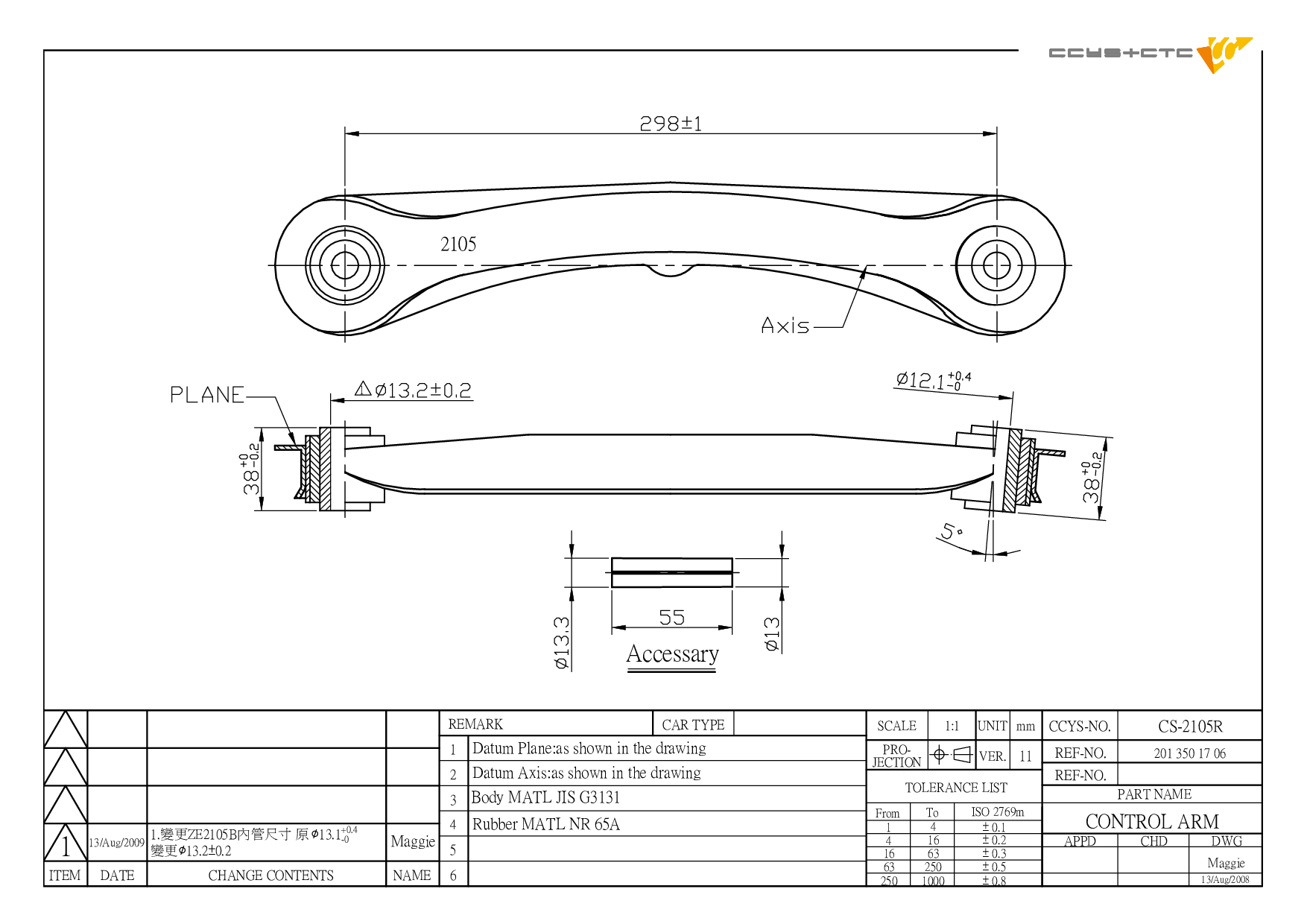

CS-2105R
| Designation | Control Arm |
| Position | REAR UPPER RH |
| OE No. | 124 350 23 06 / 124 350 27 06 / 124 350 71 06 / 124 350 77 06 / 129 350 05 06 / 129 350 09 06 / 201 350 33 06 / 210 350 17 06 / 210 350 25 06 / A124 350 23 06 / A124 350 27 06 / A124 350 71 06 / A124 350 77 06 / A129 350 05 06 / A129 350 09 06 / A201 350 33 06 / A210 350 17 06 |
| Length | 361.2 mm |
| Width | 70 mm |
| Height | 40 mm |
| Net Weight | 0.99 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

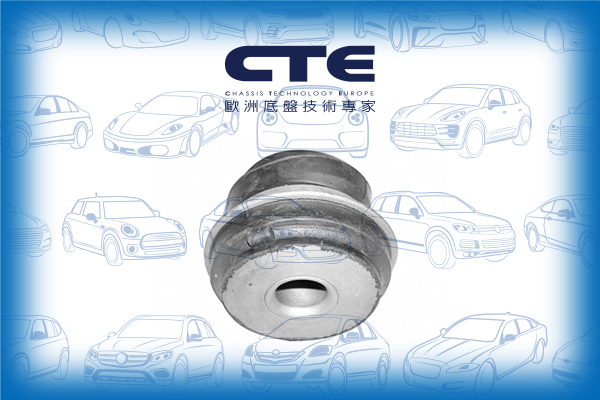

CBH21001 | FRONT LOWER ARM INNER | 201 333 51 14 |
|
 |

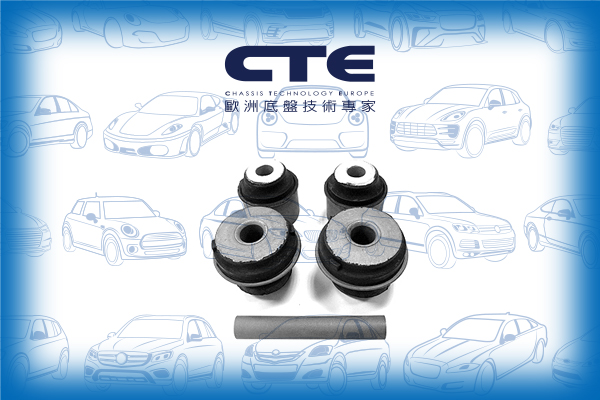

CBH21003 | FRONT LOWER ARM (REPAIR KIT) | 201 330 00 75 |
|
 |
CBH21013 | REAR AXLE UPPER | 124 352 90 65 A124 352 90 65 |
|
 |
CBH21014 | REAR AXLE UPPER | 124 350 05 75 124 352 35 65 A124 350 01 29 A124 350 05 75 |
|
 |
CBH21015 | REAR AXLE LOWER | 124 352 43 65 201 352 87 65 201 352 88 65 A124 352 43 65 A201 352 87 65 A201 352 88 65 |
|
 |

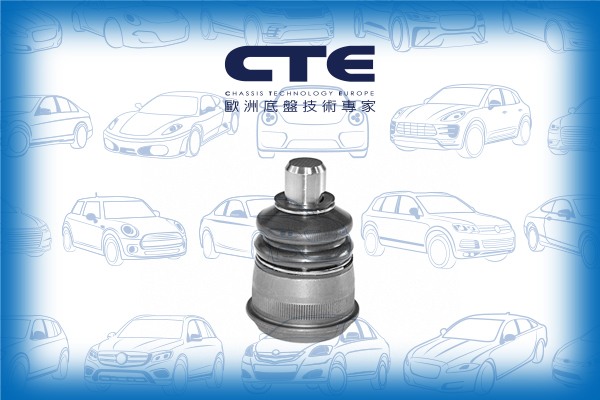

CBJ21001 | FRONT LOWER LH/ RH | 124 333 01 27 124 333 03 27 A124 333 01 27 A124 333 03 27 |
|
 |

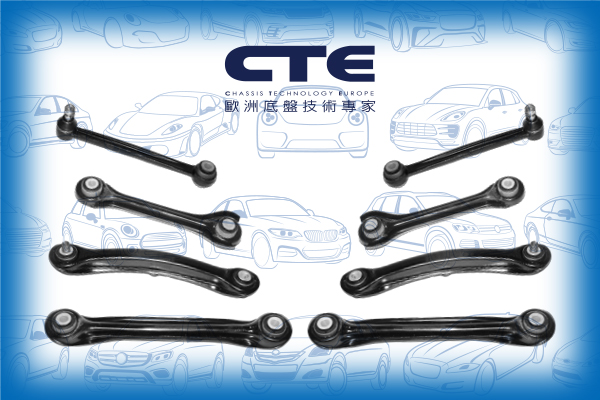

COS21010 | REAR | ||
 |

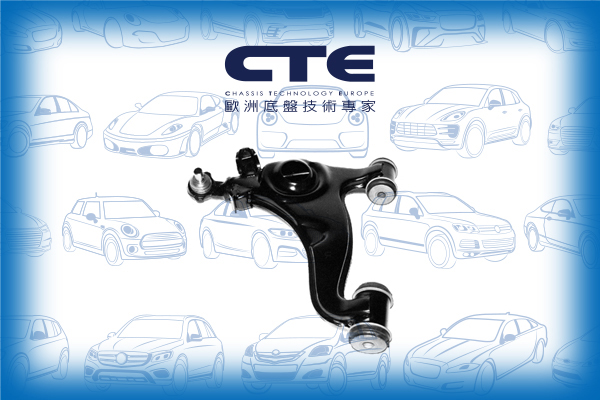

CS-2102L | FRONT AXLE LOWER LH | 124 330 30 07 201 330 40 07 A 124 330 30 07 |
|
 |

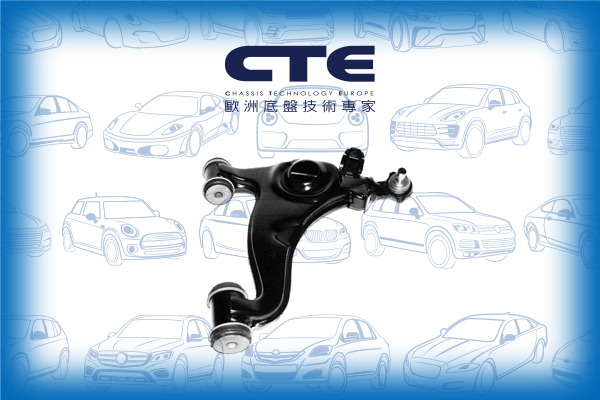

CS-2102R | FRONT AXLE LOWER RH | 124 330 31 07 201 330 41 07 A 124 330 31 07 |
|
 |
CS-2105L | REAR UPPER LH | 124 350 22 06 124 350 26 06 124 350 70 06 124 350 76 06 129 350 04 06 210 350 16 06 210 350 24 06 A124 350 22 06 A124 350 26 06 A124 350 70 06 A124 350 76 06 A129 350 04 06 A210 350 16 06 |
|
 |
CS-2105R | REAR UPPER RH | 124 350 23 06 124 350 27 06 124 350 71 06 124 350 77 06 129 350 05 06 129 350 09 06 201 350 33 06 210 350 17 06 210 350 25 06 A124 350 23 06 A124 350 27 06 A124 350 71 06 A124 350 77 06 A129 350 05 06 A129 350 09 06 A201 350 33 06 A210 350 17 06 |
|
 |
CS-2106 | REAR AXLE LH/ RH | 124 350 42 06 201 350 39 06 201 350 43 06 201 350 44 06 201 350 47 06 201 350 56 06 210 350 33 06 A124 350 42 06 A201 350 39 06 A201 350 43 06 A201 350 44 06 A201 350 47 06 A201 350 56 06 A210 350 33 06 K05099785AA |
|
 |
CS-2107 | REAR LOWER LH/ RH | 124 350 01 29 201 350 00 29 210 350 00 29 210 350 38 06 |
|
 |
CS-2108 | REAR LOWER LH/ RH | 201 350 27 53 201 350 29 53 201 350 32 53 201 359 19 53 210 350 06 53 210 350 09 53 210 350 14 53 210 350 18 53 A201 350 19 53 A201 350 27 53 A201 350 32 53 A210 350 06 53 A210 350 14 53 A210 350 18 53 |
|
 |
CSL21005 | REAR (A= 197MM) | 124 320 02 64 124 320 02 89 124 320 04 89 124 326 01 16 A124 320 02 89 |
| Model (Year) |
|---|
|
124 Coupe (C124) 124 Saloon (W124) 124 T-Model (S124) 190 (W201) C-CLASS (W202) C-CLASS (W203) C-CLASS Coupe (CL203) C-CLASS T-Model (S202) C-CLASS T-Model (S203) CLK (C208) CLK (C209) CLK Convertible (A208) CLK Convertible (A209) E-CLASS (W124) E-CLASS (W210) E-CLASS Coupe (C124) E-CLASS T-Model (S124) E-CLASS T-Model (S210) S-CLASS (W140) SL (R129) SLK (R170) SLK (R171) |
