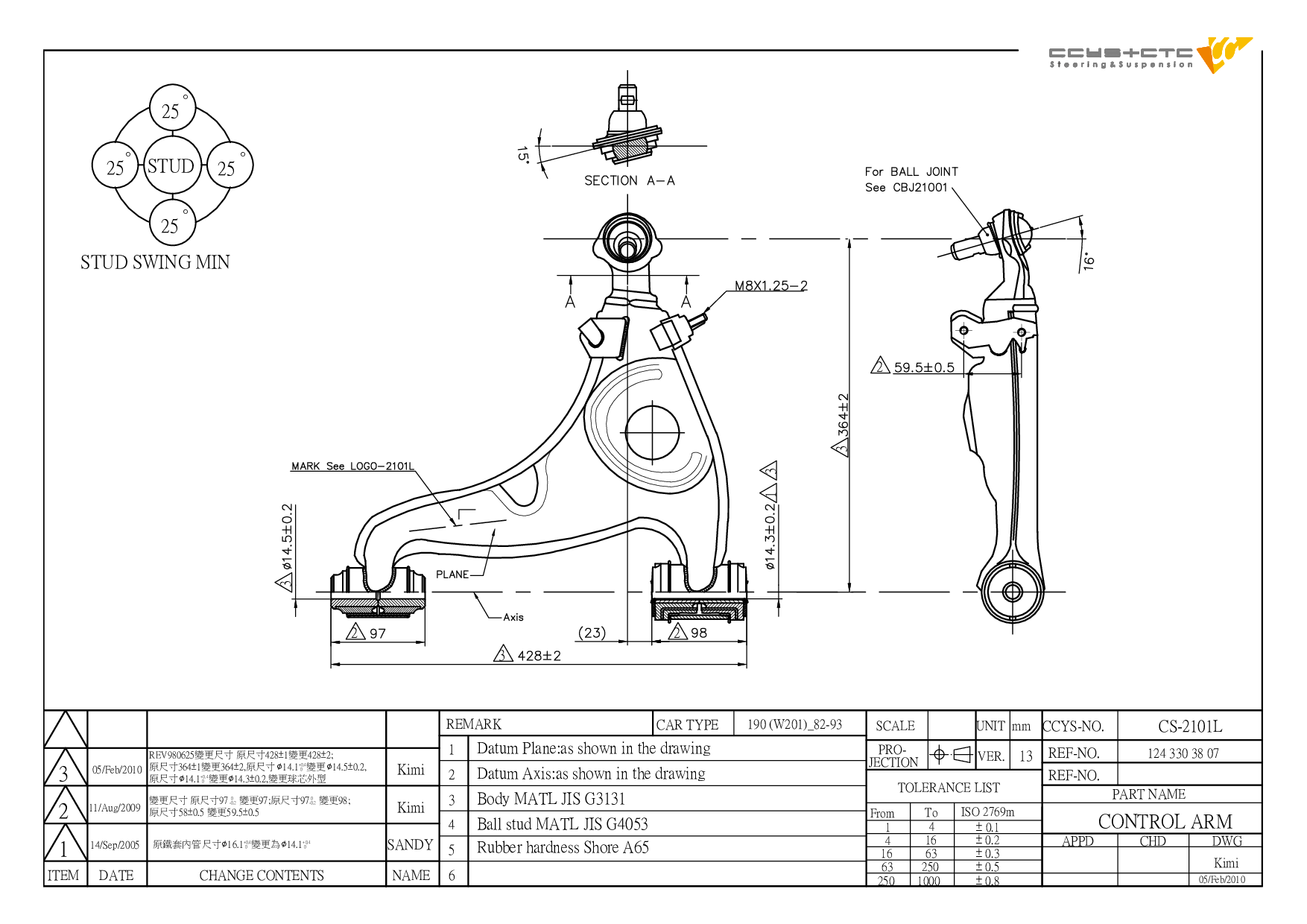

CS-2101L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 124 330 38 07 / 201 330 38 07 / A124 330 38 07 / A201 330 38 07 |
| Length | 422.2 mm |
| Width | 429.4 mm |
| Height | 96.5 mm |
| Net Weight | 5.78 kg |
(W124) for vehicles with sports suspension
(W201) for vehicles without sports suspension
(W201) for vehicles without sports suspension
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21001 | FRONT LOWER ARM INNER | 201 333 51 14 |
|
 |
CBH21003 | FRONT LOWER ARM (REPAIR KIT) | 201 330 00 75 |
|
 |
CBJ21001 | FRONT LOWER LH/ RH | 124 333 01 27 124 333 03 27 A124 333 01 27 A124 333 03 27 |
|
 |
CS-2101L | FRONT LOWER LH | 124 330 38 07 201 330 38 07 A124 330 38 07 A201 330 38 07 |
|
 |
CS-2101R | FRONT LOWER RH | 124 330 39 07 201 330 39 07 A124 330 39 07 A201 330 39 07 |
|
 |
CS-2102L | FRONT AXLE LOWER LH | 124 330 30 07 201 330 40 07 A 124 330 30 07 |
|
 |
CS-2102R | FRONT AXLE LOWER RH | 124 330 31 07 201 330 41 07 A 124 330 31 07 |
|
 |
CS-2106 | REAR AXLE LH/ RH | 124 350 42 06 201 350 39 06 201 350 43 06 201 350 44 06 201 350 47 06 201 350 56 06 210 350 33 06 A124 350 42 06 A201 350 39 06 A201 350 43 06 A201 350 44 06 A201 350 47 06 A201 350 56 06 A210 350 33 06 K05099785AA |
|
 |
CSL21005 | REAR (A= 197MM) | 124 320 02 64 124 320 02 89 124 320 04 89 124 326 01 16 A124 320 02 89 |
| Model (Year) |
|---|
|
124 Saloon (W124) 190 (W201) E-CLASS (W124) E-CLASS Convertible (A124) E-CLASS Coupe (C124) |
