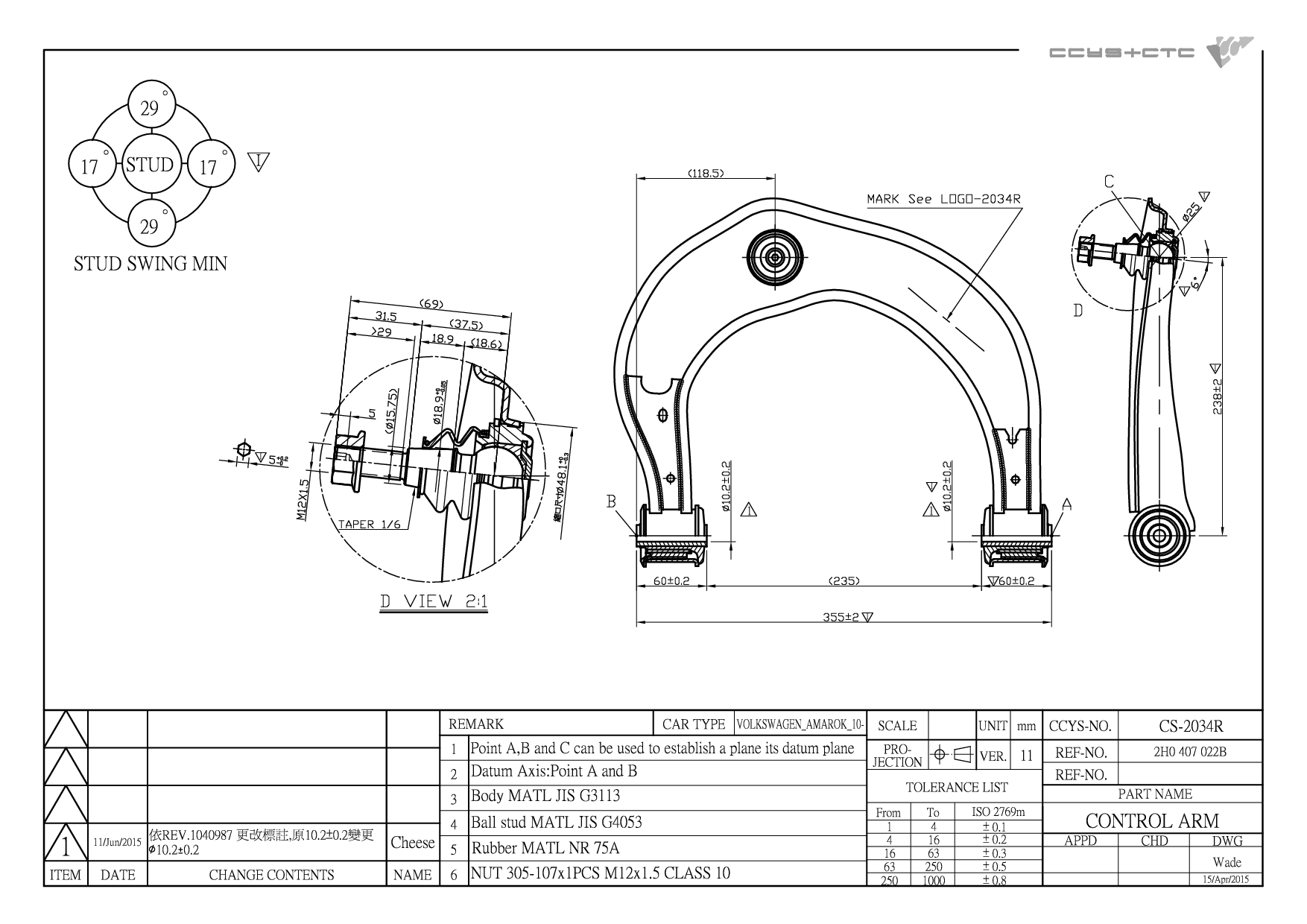

CS-2034R
| Designation | Control Arm |
| Position | FRONT UPPER RH |
| OE No. | 2H0 407 022A / 2H0 407 022B |
| Length | 374 mm |
| Width | 315 mm |
| Height | 100 mm |
| Net Weight | 2.45 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH20024 | FRONT UPPER LH/RH | 2H0 407 077A |
|
 |
CBH20025 | FRONT LOWER REAR | 2H0 407 182A |
|
 |
CBH20026 | FRONT LOWER OUTER | 2H0 412 333A |
|
 |
CBH20027 | FRONT LOWER ARM INNER | 2H0 407 183A |
|
 |
CRE20016 | D= M16X1.5 , C= M16X1.5 | 2H0 419 803 2H0 419 804 7L0 422 803 B 7L0 422 803 C 7L0 422 803 D 7L0 422 803A 7L0 422 804 B 7L0 422 804 C 7L0 422 804 D 7L0 422 810C 7L0 422 821 7L0 423 810 955 347 031 20 955 347 031 21 955 347 031 22 955 347 032 20 955 347 032 21 955 347 032 22 |
|
 |
CS-2034L | FRONT UPPER LH | 2H0 407 021A 2H0 407 021B |
|
 |
CS-2034R | FRONT UPPER RH | 2H0 407 022A 2H0 407 022B |
|
 |
CS-2035L | FRONT LOWER LH | 2H0 407 151A |
|
 |
CS-2035R | FRONT LOWER RH | 2H0 407 152A |
|
 |
CSL20018 | FRONT AXLE LH/RH | 2H0 411 317 2H0 411 317B |
|
 |
CSR20005L | FRONT AXLE LH | 2H0 419 804 7L0 422 803 B 7L0 422 803 C 7L0 422 803D 955 347 031 20 955 347 031 21 955 347 031 22 |
|
 |
CSR20005R | FRONT AXLE RH | 2H0 419 803 7L0 422 804 B 7L0 422 804 C 7L0 422 804D 955 347 032 20 955 347 032 21 955 347 032 22 |
|
 |
CTE20003L | FRONT AXLE LH (C= M16X1.5) | 2H0 422 817 7L0 422 817A 7L0 422 817B 7L0 422 817C 7L0 422 817D 955 347 131 20 955 347 131 21 955 347 131 22 |
|
 |
CTE20003R | FRONT AXLE RH (C= M16X1.5) | 2H0 422 818 7L0 422 818A 7L0 422 818B 7L0 422 818C 7L0 422 818D 947 347 132 20 955 347 132 20 955 347 132 21 955 347 132 22 |
| Model (Year) |
|---|
|
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) AMAROK Platform/Chassis (S1B) AMAROK Platform/Chassis (S1B, S6B, S7B) |
