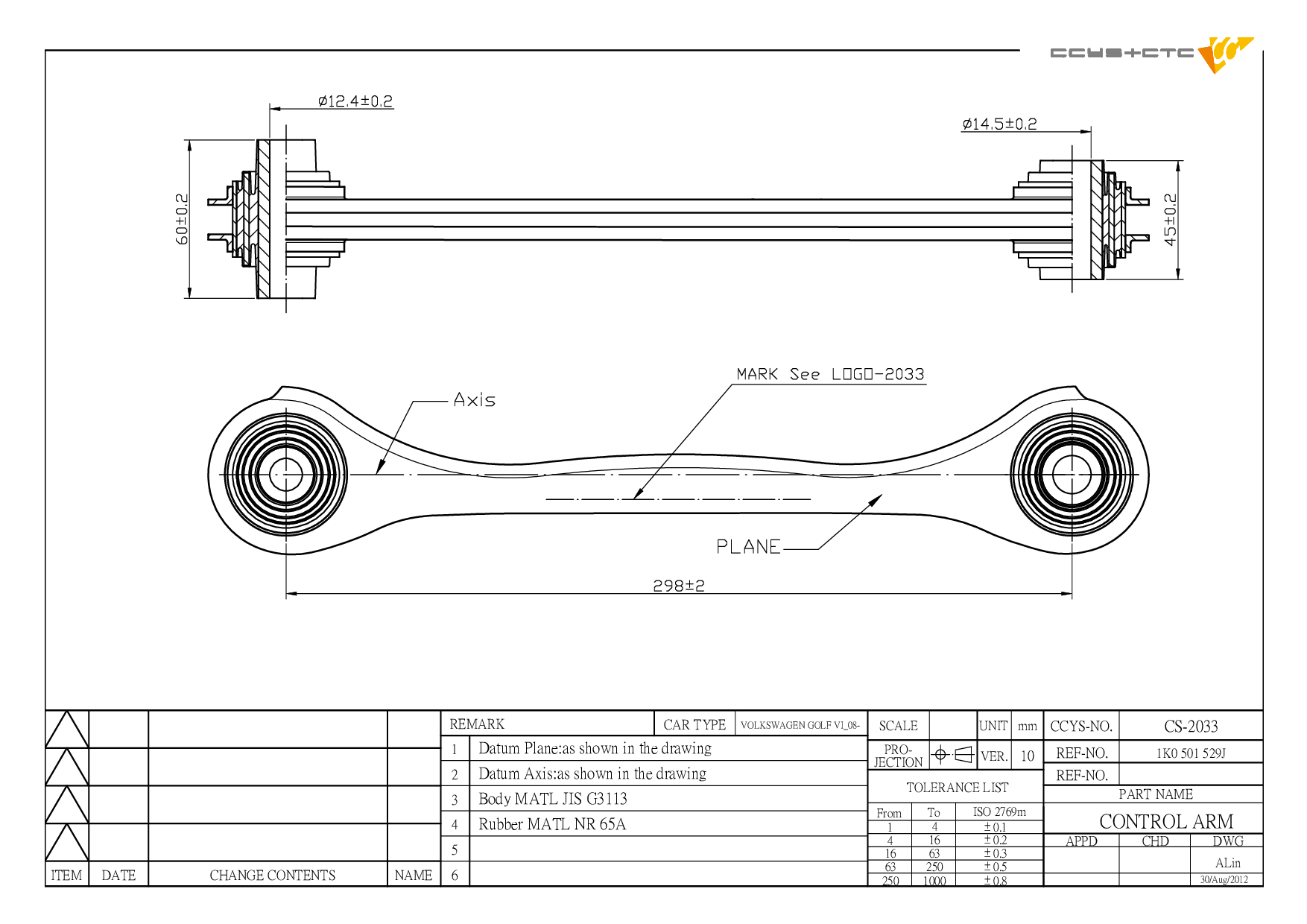

CS-2033
| Designation | Control Arm |
| Position | REAR LOWER LH/ RH |
| OE No. | 1K0 501 529H / 1K0 501 529J / 3C0 505 223 / 3C0 505 223 A / 3C0 505 224 / 3C0 505 224 A |
| Length | 356.2 mm |
| Width | 63.5 mm |
| Height | 60 mm |
| Net Weight | 0.8 kg |
(8X1,) Model year to 2014
(8J3) (8J9) Const. year from 06.2009
(3T4) Const. year from 05.2009
(5C1,) (5C7,) Model year from 2017
(1F7,) Const. year from 11.2008
(5M1,) VIN from 1K9855001
(1K5) VIN from 1K9295971
(1K2) VIN from 1K9091375
(8J3) (8J9) Const. year from 06.2009
(3T4) Const. year from 05.2009
(5C1,) (5C7,) Model year from 2017
(1F7,) Const. year from 11.2008
(5M1,) VIN from 1K9855001
(1K5) VIN from 1K9295971
(1K2) VIN from 1K9091375
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19023 | REAR ARM | 1K0 505 553 1K0 505 553A 1KD 505 553 3C0 505 553 |
|
 |

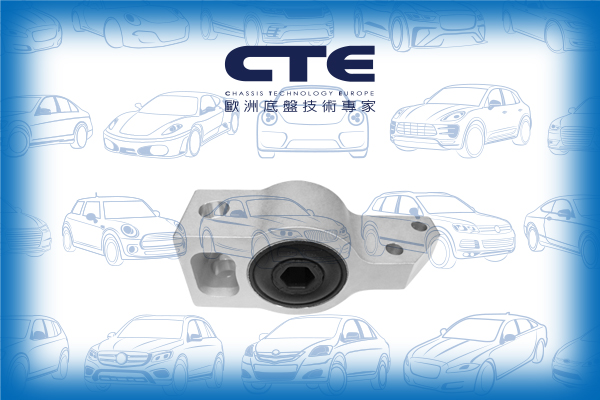

CBH19024 | FRONT LOWER ARM INNER | 837612 8J0 199 231 |
|
 |
CBH19028 | REAR AXLE | 1K0 505 541B 1K0 505 541C 1K0 505 541D 3C0 505 223E 3C0 505 541 5C0 501 541 5C0 501 541A 5Q0 505 223 5Q0 505 223D 5Q0 505 224 5Q0 505 224D 5Q0 505 541A 5QM 505 223 5QM 505 224 6R0 505 223 6R0 505 224 M112919310 M112919320 M112919350 |
|
 |
CBH20017 | FRONT LOWER ARM INNER | 1K0 407 182 1K0 407 182A 1K0 407 182F 1KD 407 182 5Q0 407 182 5Q0 407 182A |
|
 |
CBH20019 | REAR UPPER ARM OUTER | 1K0 505 203A |
|
 |
CBH20020 | REAR UPPER ARM INNER | 1K0 505 279A |
|
 |

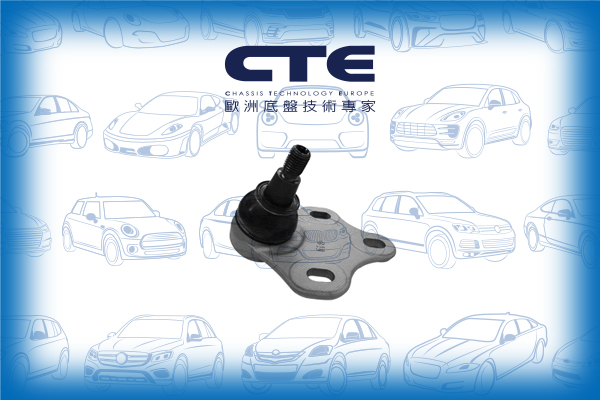

CBJ19010L | FRONT LOWER LH | 8J0 407 365 |
|
 |

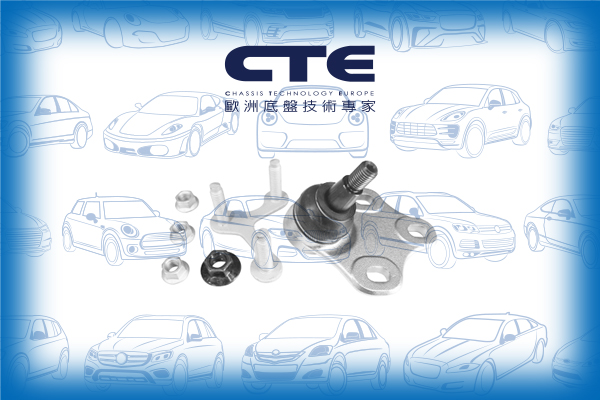

CBJ19010LA | FRONT LOWER LH | 8J0 407 365 |
|
 |

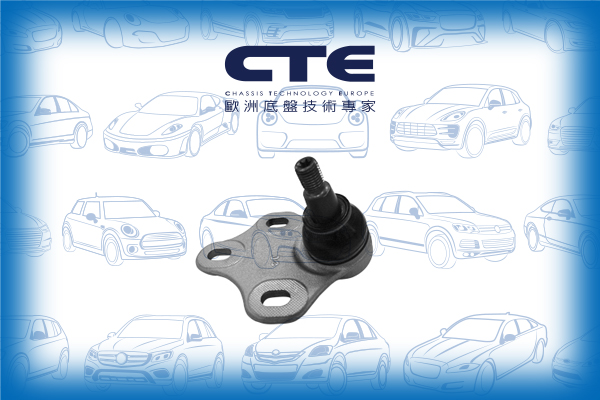

CBJ19010R | FRONT LOWER RH | 8J0 407 366 |
|
 |

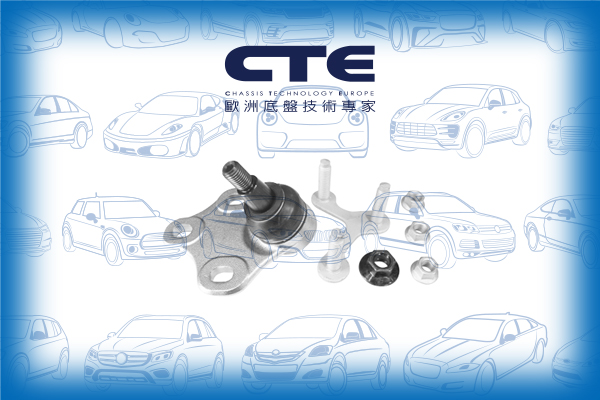

CBJ19010RA | FRONT LOWER RH | 8J0 407 366 |
|
 |
CS-1932 | REAR LOWER LH/ RH | 1K0 505 311 1K0 505 311 AA 1K0 505 311 H 1K0 505 311 J 1K0 505 311 R 1K0 505 311 S 1K0 505 311 T 1K0 505 311AB |
|
 |

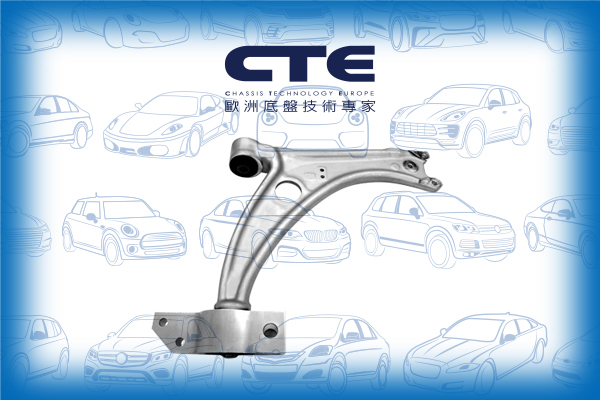

CS-1934 | FRONT LOWER LH/ RH | 8J0 407 151D |
|
 |

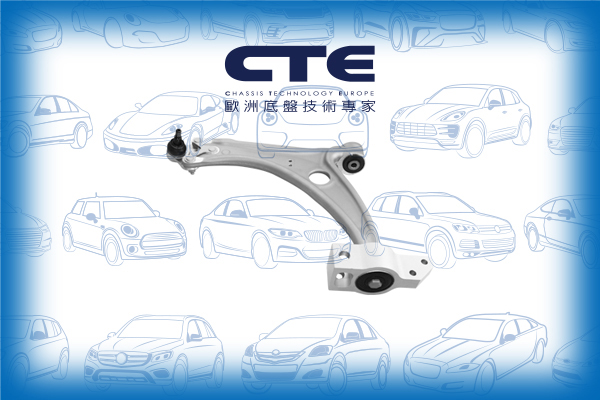

CS-1935L | FRONT LOWER LH | 8J0 407 151D 8J0 407 365 CS-1934+CBJ19010LA |
|
 |

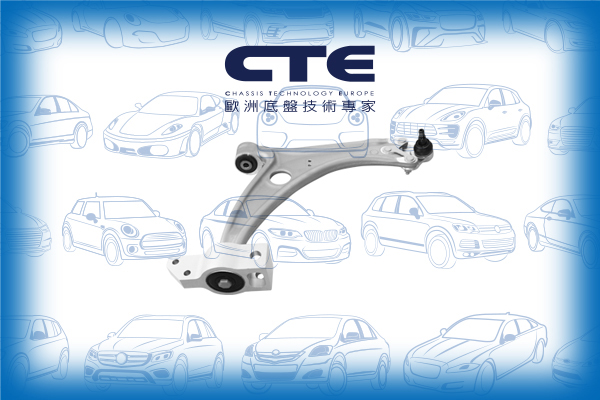

CS-1935R | FRONT LOWER RH | 8J0 407 151D 8J0 407 366 CS-1934+CBJ19010RA |
|
 |
CS-1939L | REAR UPPER LH | 1K0 505 223E 1K0 505 223F 1K0 505 223G 1K0 505 223H 1K0 505 223K 1K0 505 223L 1T0 505 223A 1T0 505 223D 1T0 505 223F |
|
 |
CS-1939R | REAR UPPER RH | 1K0 505 224E 1K0 505 224F 1K0 505 224G 1K0 505 224H 1K0 505 224K 1K0 505 224L 1T0 505 224A 1T0 505 224D 1T0 505 224F |
|
 |
CS-2026 | REAR UPPER LH/ RH | 1K0 505 323D 1K0 505 323G 1K0 505 323H 1K0 505 323M 1K0 505 323N 1K0 505 323P 5Q0 505 323C 5Q0 505 323D |
|
 |
CS-2027L | REAR LOWER LH | 1K0 501 529E 1K0 501 529F 7N0 501 529 |
|
 |
CS-2027R | REAR LOWER RH | 1K0 501 530B 1K0 501 530C 7N0 501 530 |
|
 |
CS-2033 | REAR LOWER LH/ RH | 1K0 501 529H 1K0 501 529J 3C0 505 223 3C0 505 223 A 3C0 505 224 3C0 505 224 A |
|
 |
CSL19021 | REAR AXLE LH/RH | 1K0 505 465AA 1K0 505 465C 1K0 505 465J 1K0 505 465K 1K0 505 465R 1KD 505 465A 1KD 505 465C |
|
 |

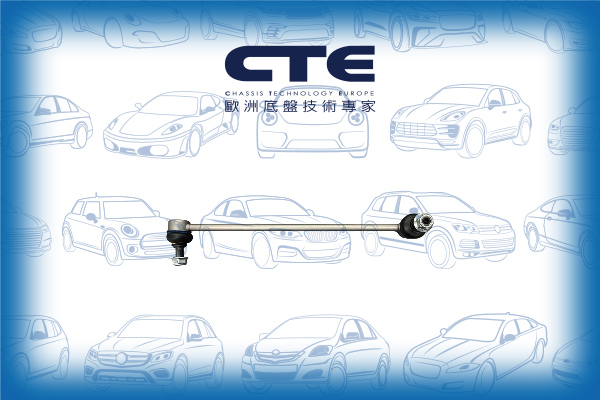

CSL20014 | FRONT (A= 334MM) | 1K0 411 315B 1K0 411 315D 1K0 411 315E 1K0 411 315G 1K0 411 315J 1K0 411 315K 1K0 411 315P 1K0 411 315R 1KD 411 315 1KD 411 315A 3QG 411 315A 5Q0 411 315 5Q0 411 315A 5Q0 411 315B 5Q0 411 315C 5Q0 411 315D 5QD 411 315 5QM 411 315 |
| Model (Year) |
|---|
|
A1 (8X1, 8XK) TT (8J3) TT Roadster (8J9) |
| Model (Year) |
|---|
|
SUPERB II (3T4) SUPERB II Estate (3T5) YETI (5L) |
| Model (Year) |
|---|
|
BEETLE (5C1, 5C2) | BJALLA BEETLE Convertible (5C7, 5C8) EOS (1F7, 1F8) GOLF PLUS V (5M1, 521) GOLF V Variant (1K5) | BORA / JETTA GOLF VI (5K1) GOLF VI Convertible (517) GOLF VI Variant (AJ5) | JETTA /JETTA WAGON JETTA III (1K2) JETTA IV (162, 163, AV3, AV2) SCIROCCO III (137, 138) TIGUAN (5N_) |
