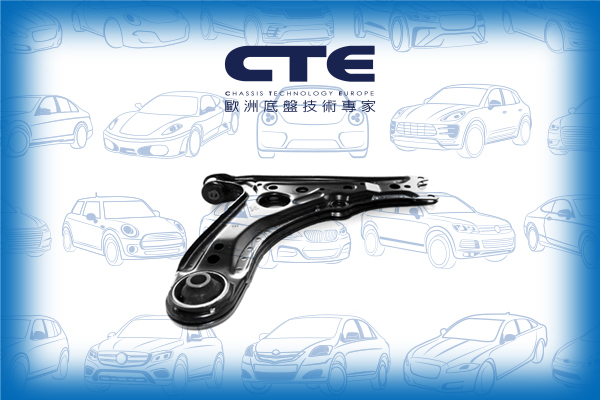

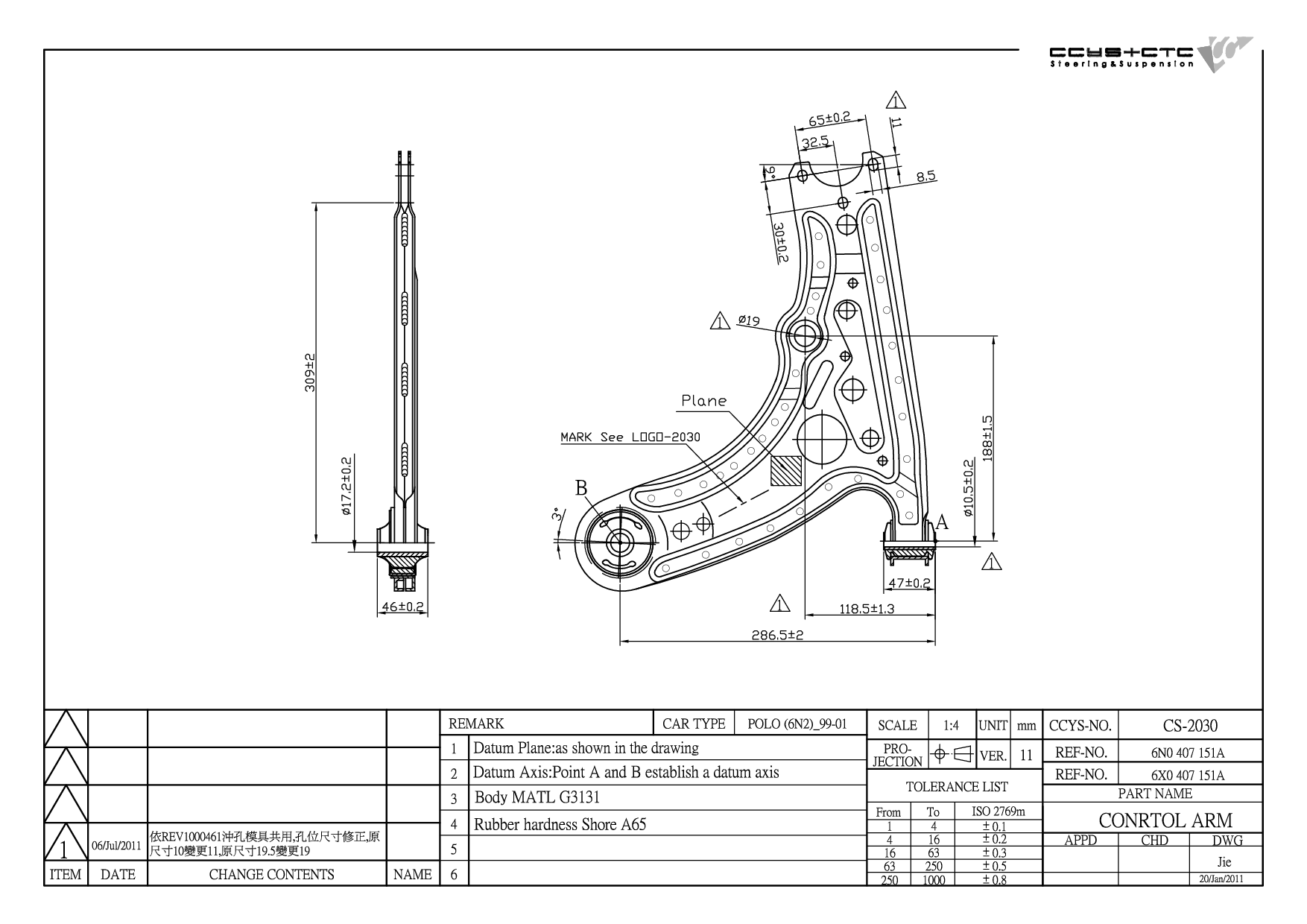

CS-2030
| Designation | Control Arm |
| Position | FRONT LOWER LH/ RH |
| OE No. | 6N0 407 151A / 6X0 407 151 / 6X0 407 151A |
| Length | 400 mm |
| Width | 330 mm |
| Height | 46 mm |
| Net Weight | 2.29 kg |
(6H1) VIN from 6H-W-055 366
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH20004 | FRONT LOWER ARM REAR | 6N0 407 181 |
|
 |
CBH20005 | FRONT LOWER ARM INNER | 431 505 172 6N0 407 182 |
|
 |
CBJ19007L | FRONT LOWER LH | 6N0 407 365 |
|
 |
CBJ19007R | FRONT LOWER RH | 6N0 407 365A |
|
 |
CS-2030 | FRONT LOWER LH/ RH | 6N0 407 151A 6X0 407 151 6X0 407 151A |
|
 |

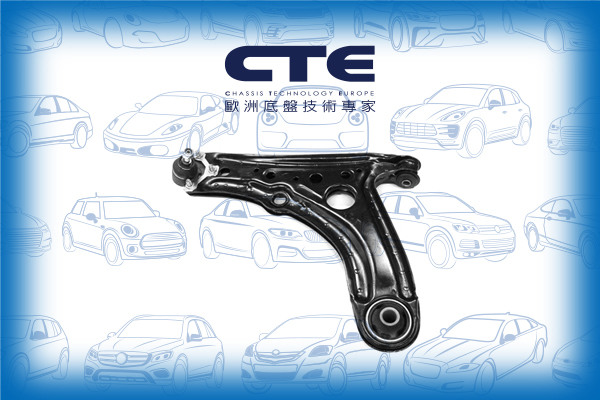

CS-2032L | FRONT LOWER LH | 6N0 407 151A 6X0 407 151 6X0 407 151A CS-2030+CBJ19007L |
|
 |

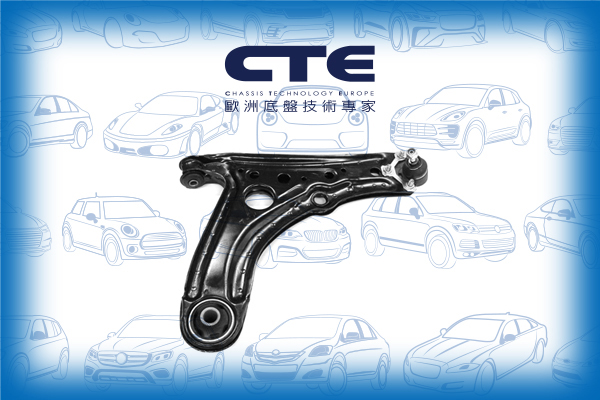

CS-2032R | FRONT LOWER RH | 6N0 407 151A 6X0 407 151 6X0 407 151A CS-2030+CBJ19007R |
|
 |
CSL20007 | FRONT (A= 71MM) | 6N0 411 315 6N0 411 315 S1 6N0 411 315C 6N0 411 315C S1 |
| Model (Year) |
|---|
|
AROSA (6H1) |
| Model (Year) |
|---|
|
LUPO I (6X1, 6E1) POLO (6N2) |
