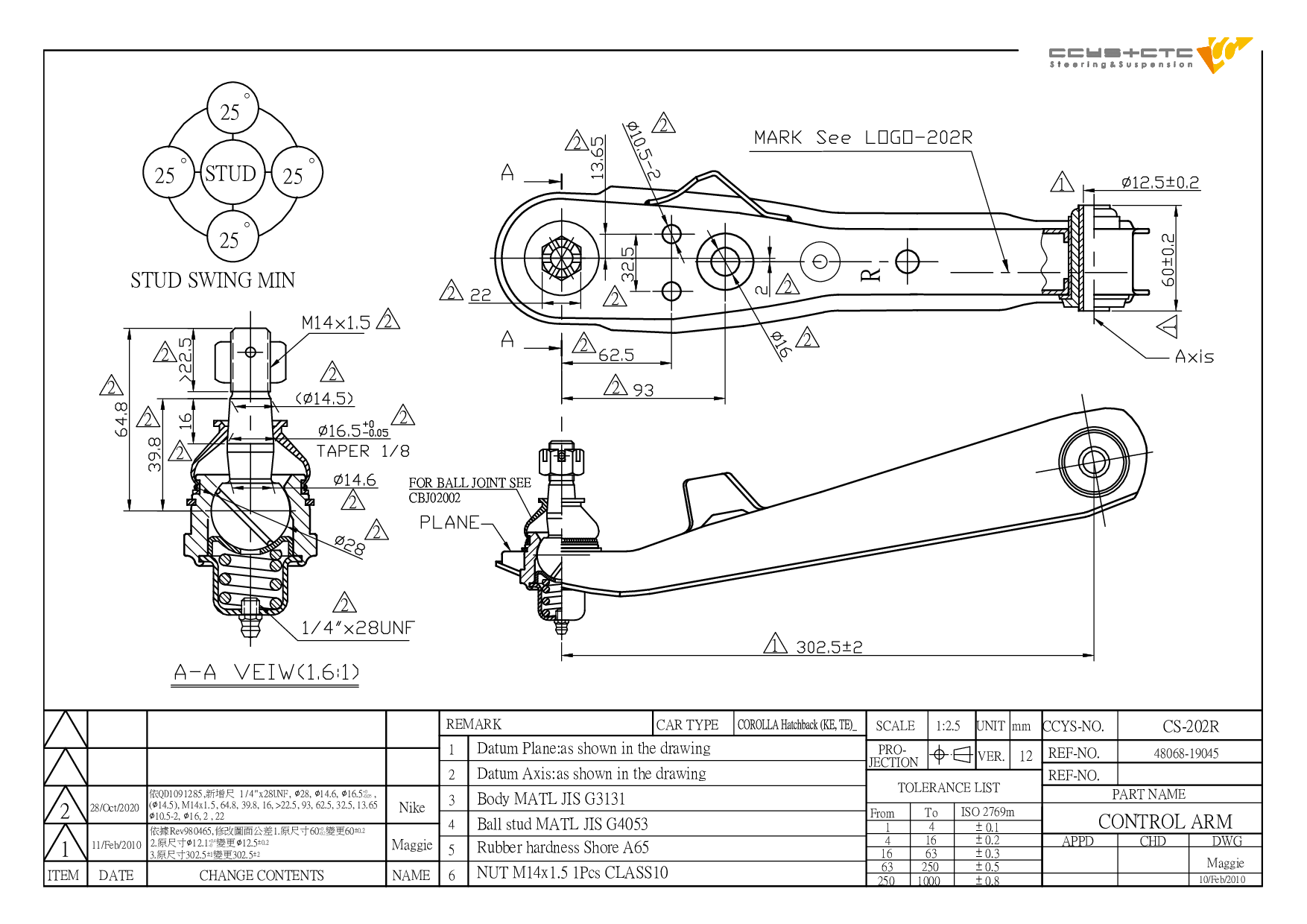

CS-202R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 48068-19035 / 48068-19036 / 48068-19045 / 48068-19065 / 48068-19075 / 48068-19085 |
| Length | 375 mm |
| Width | 95 mm |
| Height | 115 mm |
| Net Weight | 1.4 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02001 | FRONT LOWER ARM INNER | 48068-87515 48069-87515 48654-12010 |
|
 |
CBJ02002 | FRONT LOWER LH/ RH | 43308-12030 43308-19035 |
|
 |
CS-202L | FRONT LOWER LH | 48069-19035 48069-19036 48069-19045 48069-19065 48069-19075 48069-19085 |
|
 |
CS-202R | FRONT LOWER RH | 48068-19035 48068-19036 48068-19045 48068-19065 48068-19075 48068-19085 |
| Model (Year) |
|---|
|
CARINA I (TA1_) CELICA (_A4_) CELICA (_A6_) COROLLA (KE_, TE_) COROLLA Coupe (KE) COROLLA Estate (TE72_) COROLLA Hatchback (KE, TE) |
