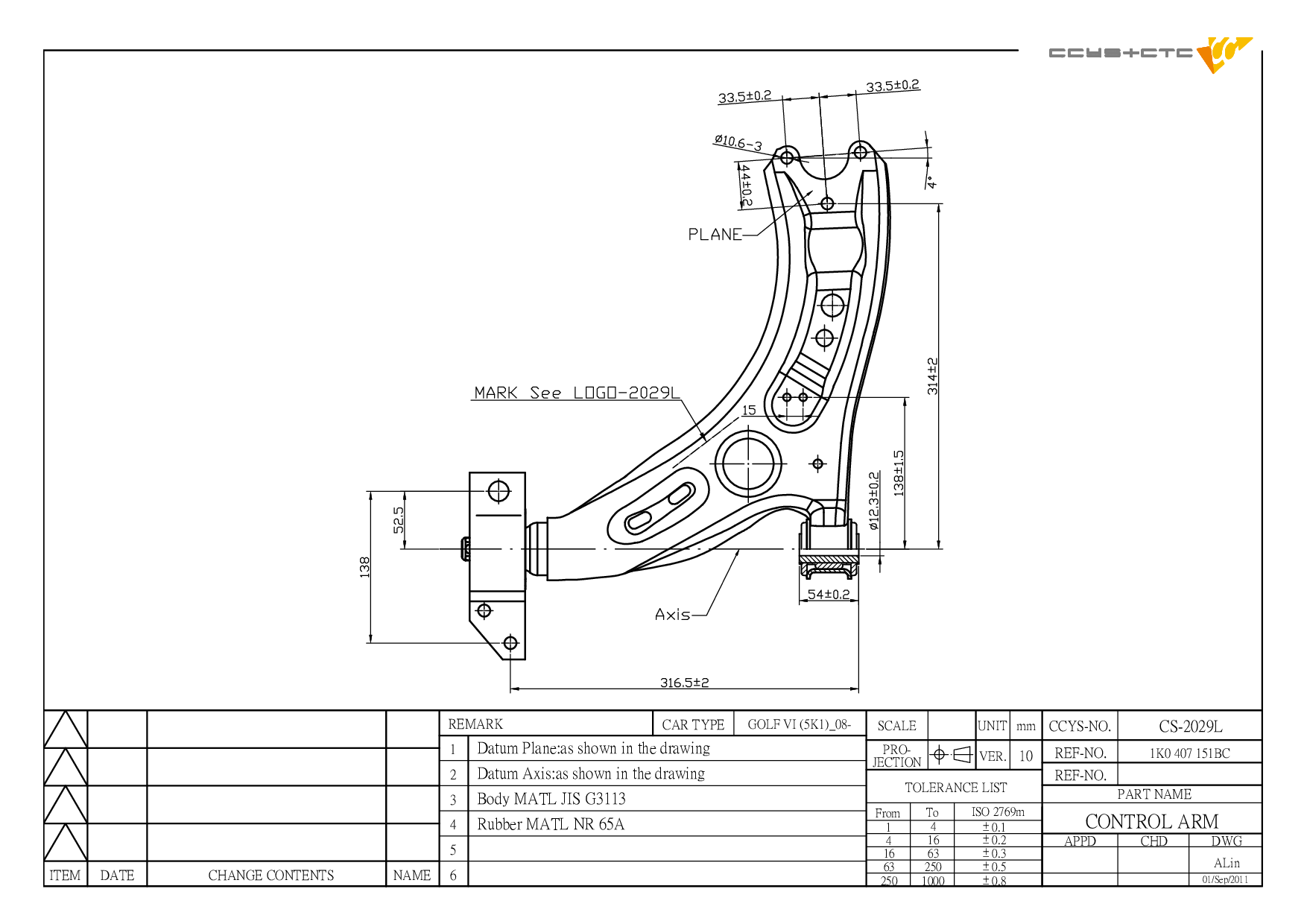

CS-2029L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1K0 407 151 AA / 1K0 407 151 AB / 1K0 407 151 AE / 1K0 407 151 AH / 1K0 407 151 BC / 1K0 407 151 BD / 1K0 407 151 N / 1K0 407 151 P / 1K0 407 151Q |
| Length | 389 mm |
| Width | 79 mm |
| Height | 472 mm |
| Net Weight | 3.94 kg |
A3 (8P1) VIN to 8P-5B00900 or VIN form 8P-5A113001
8P-5B009001 for PR number UA0
UA2
2UA
2UB For Vehicles with sport Suspension (STEEL)
8P-5B009001 for PR number UA0
UA2
2UA
2UB For Vehicles with sport Suspension (STEEL)
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19023 | REAR ARM | 1K0 505 553 1K0 505 553A 1KD 505 553 3C0 505 553 |
|
 |
CBH19028 | REAR AXLE | 1K0 505 541B 1K0 505 541C 1K0 505 541D 3C0 505 223E 3C0 505 541 5Q0 505 223 5Q0 505 223D 5Q0 505 224 5Q0 505 224D 5Q0 505 541A 5QM 505 223 5QM 505 224 6R0 505 223 6R0 505 224 |
|
 |
CBH20016L | FRONT LOWER ARM LH REAR | 1K0 199 231G 1K0 199 231J 1K0 199 231P |
|
 |
CBH20016R | FRONT LOWER ARM RH REAR | 1K0 199 232G 1K0 199 232J 1K0 199 232P |
|
 |
CBH20017 | FRONT LOWER ARM INNER | 1K0 407 182 1K0 407 182A 1K0 407 182F 1KD 407 182 5Q0 407 182 5Q0 407 182A |
|
 |
CBH20019 | REAR UPPER ARM OUTER | 1K0 505 203A |
|
 |
CBH20020 | REAR UPPER ARM INNER | 1K0 505 279A |
|
 |
CBH20021 | REAR LOWER ARM OUTER | 1K0 501 541C 1K0 505 171B 1K0 505 171C 1K0 505 173C 7N0 505 311 7N0 505 311SK |
|
 |
CBH20022 | REAR LOWER ARM INNER | 1K0 505 543A |
|
 |
CBH20023 | FRONT LOWER ARM REAR (W/O BRACKET) | 1K0 407 183E 1K0 407 183G 1K0 407 183L 3QF 199 231D 3QF 199 232D 3QF 407 183 6Q0 407 183 6Q0 407 183A 6Q0 407 183B |
|
 |
CBJ20008LA | FRONT LOWER LH | 1K0 407 365B 1K0 407 365C 1K0 407 365E 1KD 407 365 5Q0 073 365A 5Q0 407 365A 5WA 407 365 |
|
 |
CBJ20008RA | FRONT LOWER RH | 1K0 407 366B 1K0 407 366C 1K0 407 366E 1KD 407 366 5Q0 073 366A 5Q0 407 366A 5WA 407 366 |
|
 |
COS20004 | REAR | 1K0 501 529H 1K0 501 529J 1K0 505 223E 1K0 505 223F 1K0 505 223H 1K0 505 223K 1K0 505 224E 1K0 505 224F 1K0 505 224H 1K0 505 224K 1K0 505 311 1K0 505 311AA 1K0 505 311AB 1K0 505 311H 1K0 505 311J 1K0 505 311R 1K0 505 311S 1K0 505 311T 1K0 505 323D 1K0 505 |
|
 |
CRE20013 | D= M16X1.5 , C= M16X1.5 | 1K0 423 810A 1K0 423 810E 3C0 423 810A |
|
 |
CS-1932 | REAR LOWER LH/ RH | 1K0 505 311 1K0 505 311 AA 1K0 505 311 H 1K0 505 311 J 1K0 505 311 R 1K0 505 311 S 1K0 505 311 T 1K0 505 311AB |
|
 |
CS-1939L | REAR UPPER LH | 1K0 505 223E 1K0 505 223F 1K0 505 223H 1K0 505 223K 1T0 505 223A 1T0 505 223D 1T0 505 223F |
|
 |
CS-1939R | REAR UPPER RH | 1K0 505 224E 1K0 505 224F 1K0 505 224H 1K0 505 224K 1T0 505 224A 1T0 505 224D 1T0 505 224F |
|
 |
CS-2026 | REAR UPPER LH/ RH | 1K0 505 323D 1K0 505 323G 1K0 505 323H 1K0 505 323M 1K0 505 323N 1K0 505 323P 5Q0 505 323C 5Q0 505 323D |
|
 |
CS-2029L | FRONT LOWER LH | 1K0 407 151 AA 1K0 407 151 AB 1K0 407 151 AE 1K0 407 151 AH 1K0 407 151 BC 1K0 407 151 BD 1K0 407 151 N 1K0 407 151 P 1K0 407 151Q |
|
 |
CS-2029R | FRONT LOWER RH | 1K0 407 152 AA 1K0 407 152 AB 1K0 407 152 AE 1K0 407 152 AH 1K0 407 152 BC 1K0 407 152 BD 1K0 407 152 N 1K0 407 152 P 1K0 407 152Q |
|
 |
CS-2033 | REAR LOWER LH/ RH | 1K0 501 529H 1K0 501 529J 3C0 505 223 3C0 505 223 A 3C0 505 224 3C0 505 224 A |
|
 |
CSL19021 | REAR AXLE LH/RH | 1K0 505 465AA 1K0 505 465C 1K0 505 465J 1K0 505 465K 1K0 505 465R 1KD 505 465A 1KD 505 465C |
|
 |
CTE20001L | FRONT AXLE LH (C= M16X1.5) | 1K0 423 803 A 1K0 423 811A 1K0 423 811B 1K0 423 811C 1K0 423 811E 1K0 423 811F 1K0 423 811G 1K0 423 811J 1K0 423 811K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 811 3C0 423 811 B |
|
 |
CTE20001R | FRONT AXLE RH (C= M16X1.5) | 1K0 423 804 A 1K0 423 812A 1K0 423 812B 1K0 423 812C 1K0 423 812E 1K0 423 812F 1K0 423 812G 1K0 423 812J 1K0 423 812K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 812 3C0 423 812 B |
| Model (Year) |
|---|
|
A3 (8P1) | A3 / S3 A3 Convertible (8P7) A3 Sportback (8PA) |
| Model (Year) |
|---|
|
ALTEA (5P1) ALTEA XL (5P5, 5P8) LEON (1P1) TOLEDO III (5P2) |
| Model (Year) |
|---|
|
OCTAVIA II (1Z3) OCTAVIA II Combi (1Z5) SUPERB II (3T4) SUPERB II Estate (3T5) YETI (5L) |
| Model (Year) |
|---|
|
CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) EOS (1F7, 1F8) GOLF PLUS V (5M1, 521) GOLF PLUS Van (521) GOLF V (1K1) GOLF V Variant (1K5) GOLF V Variant (1K5) | BORA / JETTA GOLF VAN VI Variant (AJ5) GOLF VI (5K1) GOLF VI Convertible (517) GOLF VI Van (5K1) GOLF VI Variant (AJ5) | JETTA JETTA III (1K2) SCIROCCO III (137, 138) SCIROCCO Van (137) TOURAN (1T1, 1T2) TOURAN (1T3) | GOLF TOURAN TOURAN (5T1) | GOLF TOURAN TOURAN VAN (1T1, 1T2) TOURAN VAN (1T3) |
