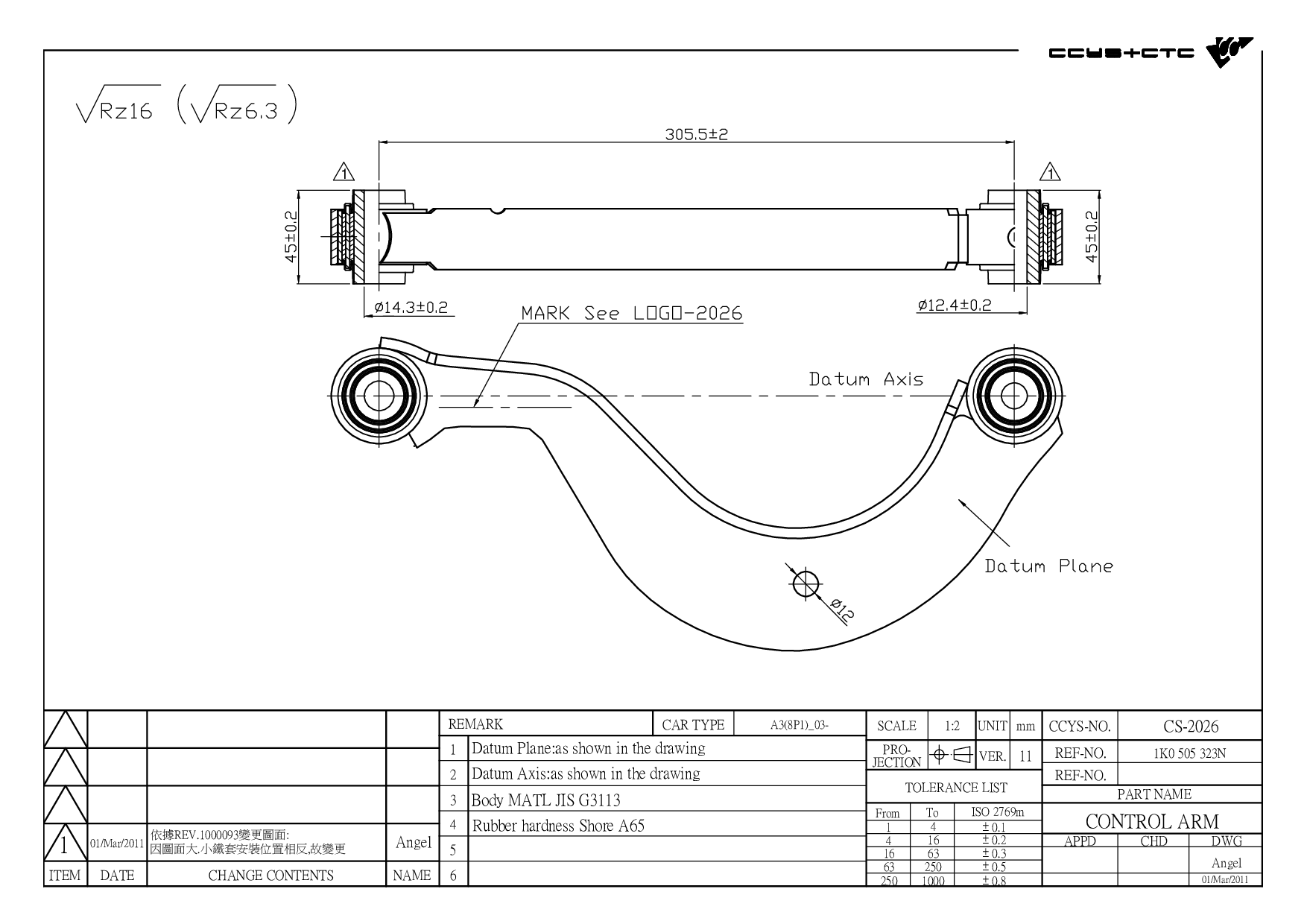

CS-2026
| Designation | Control Arm |
| Position | REAR UPPER LH/ RH |
| OE No. | 1K0 505 323D / 1K0 505 323G / 1K0 505 323H / 1K0 505 323M / 1K0 505 323N / 1K0 505 323P / 5Q0 505 323C / 5Q0 505 323D |
| Length | 352 mm |
| Width | 151 mm |
| Height | 45 mm |
| Net Weight | 1.5 kg |
VW (358) (1F7, 1F8) (5M1, 521) (365) (137, 138) (5N) Construction year to 05.2012
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19023 | REAR ARM | 1K0 505 553 1K0 505 553A 1KD 505 553 3C0 505 553 |
|
 |
CBH20017 | FRONT LOWER ARM INNER | 1K0 407 182 1K0 407 182A 1K0 407 182F 1KD 407 182 5Q0 407 182 5Q0 407 182A |
|
 |
CBH20028 | FRONT LOWER ARM REAR | 5Q0 407 182F 5Q0 407 183C 5Q0 407 183D 5Q0 407 183E 5Q0 407 183G 5Q0 407 183J 5Q0 407 183K 5Q0 407 183L 5Q0 407 183M 5Q0 407 183N |
|
 |
CBJ20007LA | FRONT LOWER LH | 35D 407 365 3C0 407 365A 3C0 407 365B 5QD 407 365 5QD 407 365A |
|
 |
CBJ20007RA | FRONT LOWER RH | 35D 407 366 3C0 407 366A 5QD 407 366 5QD 407 366A |
|
 |
CS-2026 | REAR UPPER LH/ RH | 1K0 505 323D 1K0 505 323G 1K0 505 323H 1K0 505 323M 1K0 505 323N 1K0 505 323P 5Q0 505 323C 5Q0 505 323D |
|
 |
CS-2036L | FRONT LOWER LH | 5Q0 407 151AC 5Q0 407 151J 5Q0 407 151L 5Q0 407 151M 5Q0 407 151P 5Q0 407 151R 5Q0 407 151S 81A 407 151D 81A 407 151E |
|
 |
CS-2036R | FRONT LOWER RH | 5Q0 407 152AC 5Q0 407 152J 5Q0 407 152L 5Q0 407 152M 5Q0 407 152P 5Q0 407 152R 5Q0 407 152S 81A 407 152D 81A 407 152E |
|
 |
CTE20001L | FRONT AXLE LH (C= M16X1.5) | 1K0 423 803 A 1K0 423 811A 1K0 423 811B 1K0 423 811C 1K0 423 811E 1K0 423 811F 1K0 423 811G 1K0 423 811J 1K0 423 811K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 811 3C0 423 811 B |
|
 |
CTE20001R | FRONT AXLE RH (C= M16X1.5) | 1K0 423 804 A 1K0 423 812A 1K0 423 812B 1K0 423 812C 1K0 423 812E 1K0 423 812F 1K0 423 812G 1K0 423 812J 1K0 423 812K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 812 3C0 423 812 B |
| Model (Year) |
|---|
|
A1 (8X1, 8XK) A1 Sportback (8XA, 8XF) A3 (8P1) | A3 / S3 A3 Convertible (8P7) A3 Sportback (8PA) Q3 (8UB, 8UG) TT (8J3) TT Roadster (8J9) |
| Model (Year) |
|---|
|
A3 Limousine (85S, 85M) A3 Sportback (85A, 85F) |
| Model (Year) |
|---|
|
ATECA (KH7, KHP, KBP) FORMENTOR (KM7, KMP) |
| Model (Year) |
|---|
|
ALHAMBRA (710, 711) ALTEA (5P1) ALTEA XL (5P5, 5P8) ATECA (KH7, KHP) LEON (1P1) LEON (5F1) LEON (KL1, KLG) LEON SC (5F5) LEON Sportstourer (KL8, KLD) LEON ST (5F8) TOLEDO III (5P2) |
| Model (Year) |
|---|
|
OCTAVIA II (1Z3) OCTAVIA II Combi (1Z5) |
| Model (Year) |
|---|
|
CC B7 (358) EOS (1F7, 1F8) GOLF PLUS V (5M1, 521) GOLF V (1K1) GOLF V Variant (1K5) | BORA / JETTA GOLF VI (5K1) GOLF VI Convertible (517) GOLF VI Variant (AJ5) | JETTA JETTA III (1K2) JETTA IV (162, 163, AV3, AV2) PASSAT ALLTRACK B7 (365) PASSAT B6 (3C2) | PASSAT / Magotan PASSAT B6 Variant (3C5) PASSAT B7 (362) PASSAT B7 (A32, A33) PASSAT B7 Variant (365) | MAGOTAN PASSAT CC B6 (357) SCIROCCO III (137, 138) TIGUAN (5N_) TOURAN (1T1, 1T2) TOURAN (1T3) | GOLF TOURAN |
