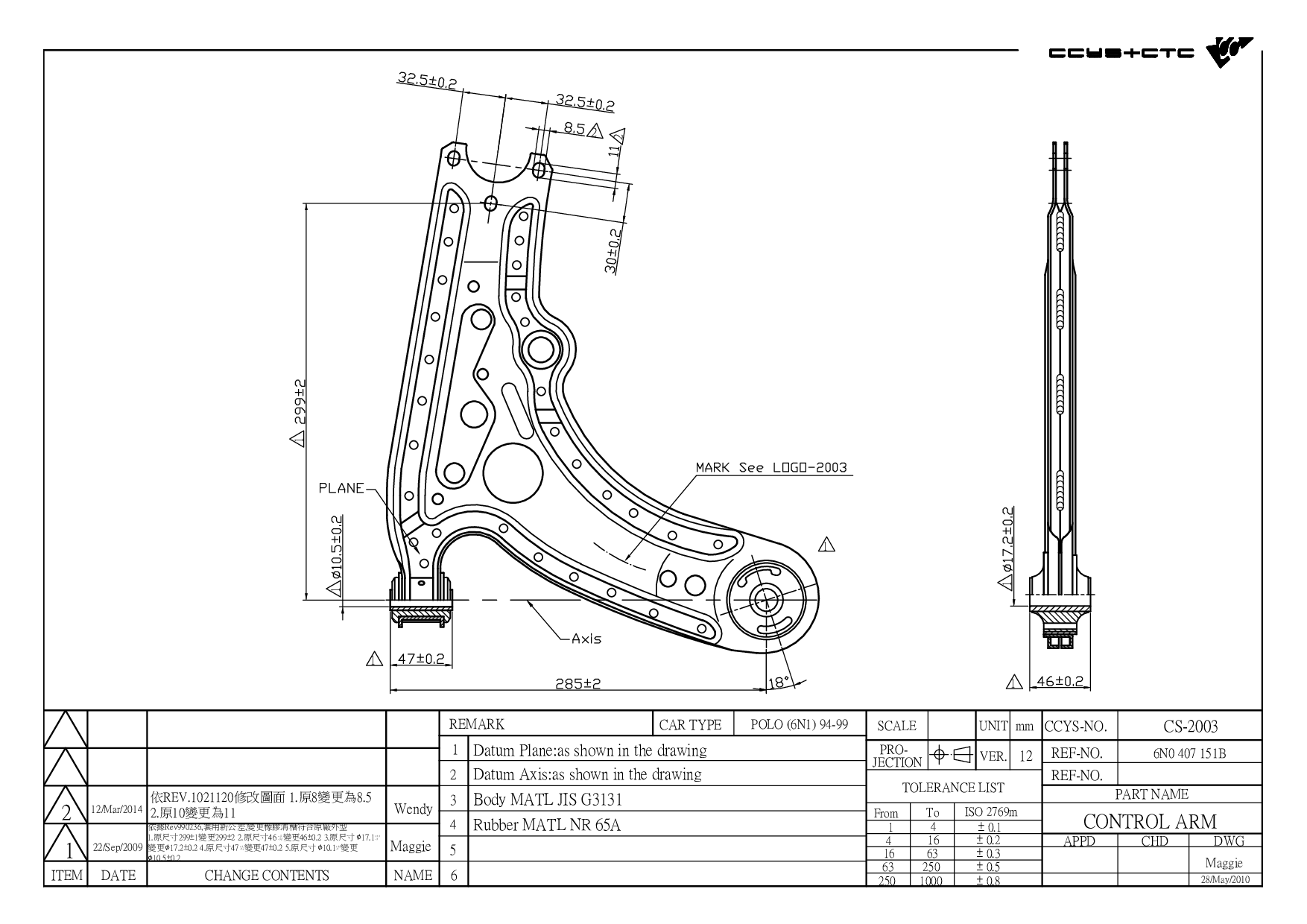

CS-2003
| Designation | Control Arm |
| Position | FRONT LOWER LH/ RH |
| OE No. | 6N0 407 151 / 6N0 407 151B |
| Length | 327.3 mm |
| Width | 383.1 mm |
| Height | 46 mm |
| Net Weight | 2.6 kg |
SEAT AROSA (6H1) 1.0 1.4 1.7 VIN to 6H-W-055 365
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH20004 | FRONT LOWER ARM REAR | 6N0 407 181 |
|
 |
CBJ19007L | FRONT LOWER LH | 6N0 407 365 |
|
 |
CBJ19007R | FRONT LOWER RH | 6N0 407 365A |
|
 |
CS-2003 | FRONT LOWER LH/ RH | 6N0 407 151 6N0 407 151B |
|
 |
CS-2019L | FRONT LOWER LH | 6N0 407 151 6N0 407 151B CS-2003+CBJ19007L |
|
 |
CS-2019R | FRONT LOWER RH | 6N0 407 151 6N0 407 151B CS-2003+CBJ19007R |
|
 |
CSL20007 | FRONT (A= 71MM) | 6N0 411 315 6N0 411 315 S1 6N0 411 315C 6N0 411 315C S1 |
| Model (Year) |
|---|
|
AROSA (6H1) |
| Model (Year) |
|---|
|
POLO III (6N1) POLO Van Hatchback Van (6N1) |
