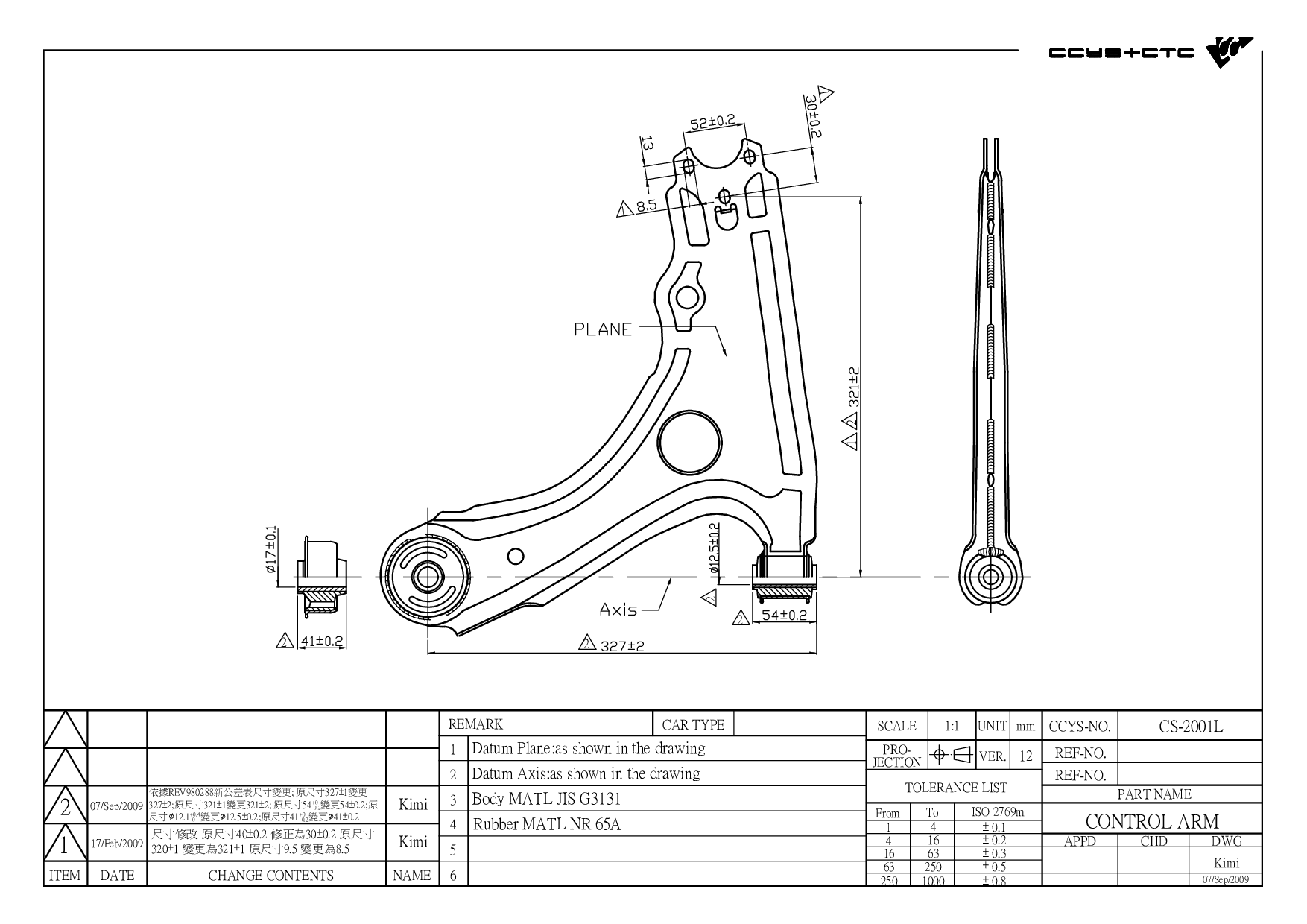

CS-2001L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 191 407 151B / 191 407 153 / 191 407 153A / 191 407 153B |
| Length | 370 mm |
| Width | 419 mm |
| Height | 53 mm |
| Net Weight | 3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH20001 | FRONT LOWER ARM REAR | 191 407 181A |
|
 |
CBH20008 | FRONT LOWER ARM INNER | 180 407 182 191 407 182 1J0 407 182 357 407 182 357 407 182F |
|
 |
CBJ20001 | FRONT LOWER LH/ RH | 191 407 365 191 407 365A 191 407 365B |
|
 |
CBJ20002 | FRONT LOWER LH/ RH | 357 407 365 357 407 365A |
|
 |
CBJ20002A | FRONT LOWER LH/ RH | 357 407 365 357 407 365A |
|
 |
CRE20004 | D= M14X1.5 , C= M14X1.5 | 191 422 803 |
|
 |
CS-2001L | FRONT LOWER LH | 191 407 151B 191 407 153 191 407 153A 191 407 153B |
|
 |
CS-2001R | FRONT LOWER RH | ||
 |
CS-2017L | FRONT LOWER LH | 191 407 151A 191 407 151B 191 407 153A 191 407 365B CS-2001L+CBJ20001 SE02215702A |
|
 |
CS-2017R | FRONT LOWER RH | 191 407 365B CS-2001R+CBJ20001 SE02215710A |
|
 |
CS-2018L | FRONT LOWER LH | 191 407 151B 191 407 151B S1 191 407 153 191 407 153A 191 407 153A S3 191 407 153S XN 357 407 365A CS-2001L+CBJ20002A |
|
 |
CS-2018R | FRONT LOWER RH | 191 407 151B 191 407 151B S1 357 407 365A CS-2001R+CBJ20002A |
|
 |
CS-2028L | FRONT LOWER LH | 191 407 153A |
|
 |
CS-2028R | FRONT LOWER RH | 191 407 151B |
|
 |
CSL20001 | FRONT (A= 74.5MM) | 191 411 315B |
|
 |
CSL20002 | FRONT (A= 79MM) | 191 411 315 |
| Model (Year) |
|---|
|
CADDY II Box Body/MPV (9K9A) | PANEL CADDY II MPV (9K9B) CORRADO (53I) GOLF II (19E, 1G1) JETTA II (19E, 1G2, 165) POLO III (6N1) POLO III CLASSIC (6V2) | FLIGHT POLO Variant (6V5) |
