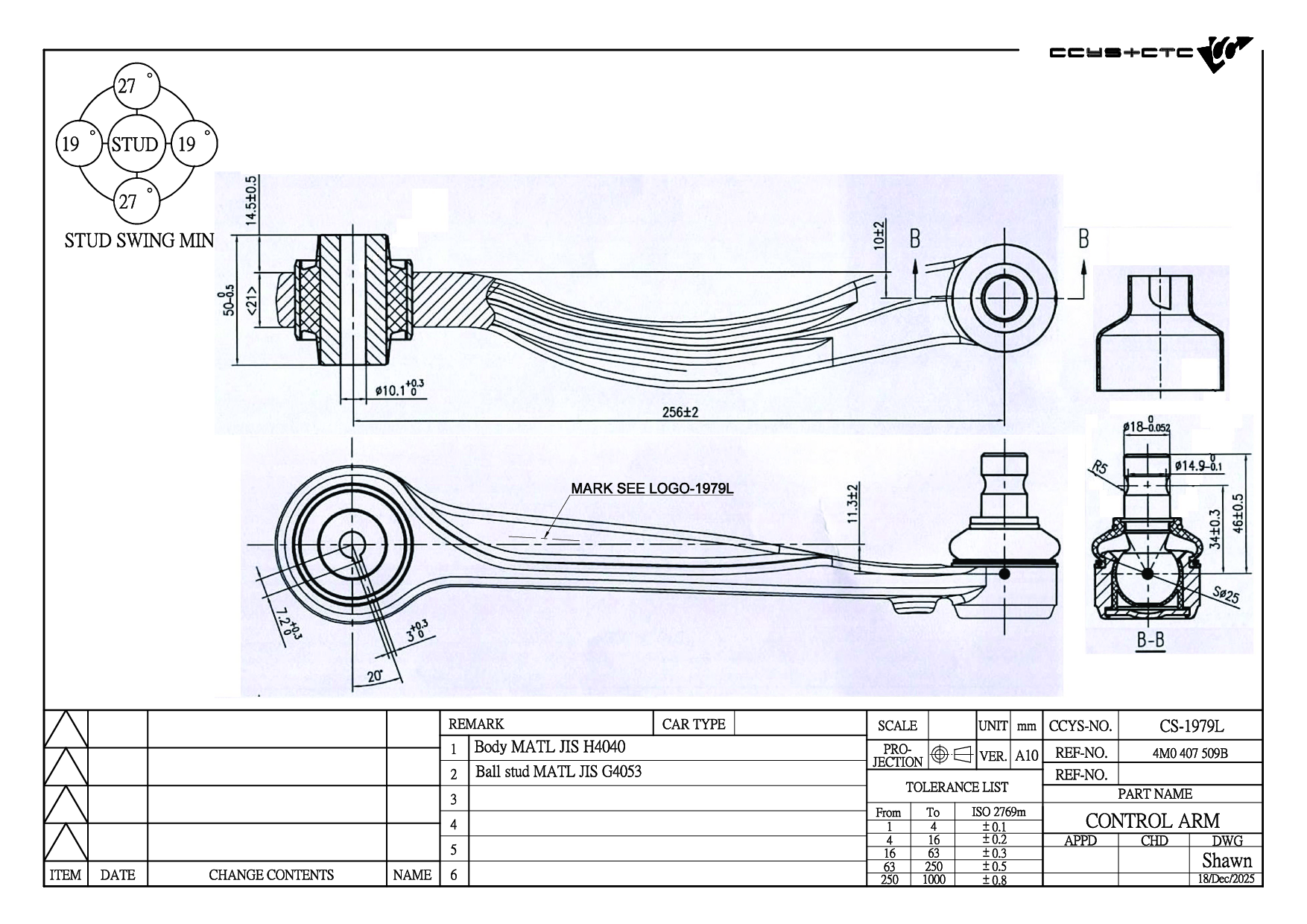

CS-1979L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 4M0 407 509B / 4M0 407 509C / 4N0 407 509 / 80A 407 509 / 80A 407 509A / 80D 407 509 / 80D 407 509A / 958 407 509B / 958 407 509C |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19041 | FRONT UPPER ARM INNER | ||
 |
CS-1978L | FRONT UPPER LH | 4M0 407 505B 4M0 407 505C 4N0 407 505 80A 407 505 80A 407 505A 80D 407 505 80D 407 505A 958 407 505B 958 407 505C |
|
 |
CS-1978R | FRONT UPPER RH | 4M0 407 506B 4M0 407 506C 4N0 407 506 80A 407 506 80A 407 506A 80D 407 506 80D 407 506A 958 407 506B 958 407 506C |
|
 |
CS-1979L | FRONT UPPER LH | 4M0 407 509B 4M0 407 509C 4N0 407 509 80A 407 509 80A 407 509A 80D 407 509 80D 407 509A 958 407 509B 958 407 509C |
|
 |
CS-1979R | FRONT UPPER RH | 4M0 407 510B 4M0 407 510C 4N0 407 510 80A 407 510 80A 407 510A 80D 407 510 80D 407 510A 958 407 510B 958 407 510C |
|
|
CS-1981L | FRONT LOWER LH | 4P0 407 693 80A 407 693B 80A 407 693C 80A 407 693D 80A 407 693E 80A 407 693G 80D 407 693 80D 407 693B 8B3 407 693 |
|
|
CS-1981R | FRONT LOWER RH | 4P0 407 694 80A 407 694B 80A 407 694C 80A 407 694D 80A 407 694E 80A 407 694G 80D 407 694 80D 407 694B 8B3 407 694 |
|
 |
CSL19018 | FRONT (A= 170MM) | 4G0 411 317A 4H0 411 317A 4H0 411 317C 4M0 411 317 4M0 411 317D 4M0 411 317J 4M0 411 317L 8K0 411 317A 8K0 411 317C 8K0 411 317D 8K0 411 317D S1 8K0 411 317E 8K0 411 318E 8KD 407 317E |
| Model (Year) |
|---|
|
A6 Allroad C8 (4AH) A6 C8 (4A2) A6 C8 Avant (4A5) A7 Sportback (4KA) A8 D5 (4N2, 4N8, 4NC, 4NL) | A8L E-TRON (GEN) E-TRON Sportback (GEA) Q5 (FYB, FYG) Q5 Sportback (FYT) Q7 (4MB, 4MG) Q7 (4MB, 4MG, 4MQ) Q8 (4MN, 4MT) |
| Model (Year) |
|---|
|
A6L C8 (488) Q5L B9 (87I, 87U) Q5L Sportback (87F) |
| Model (Year) |
|---|
|
BENTAYGA (4V1) |
| Model (Year) |
|---|
|
CAYENNE (9YA) CAYENNE Coupe (9YB) |
| Model (Year) |
|---|
|
TOUAREG (CR7, RC8) |
