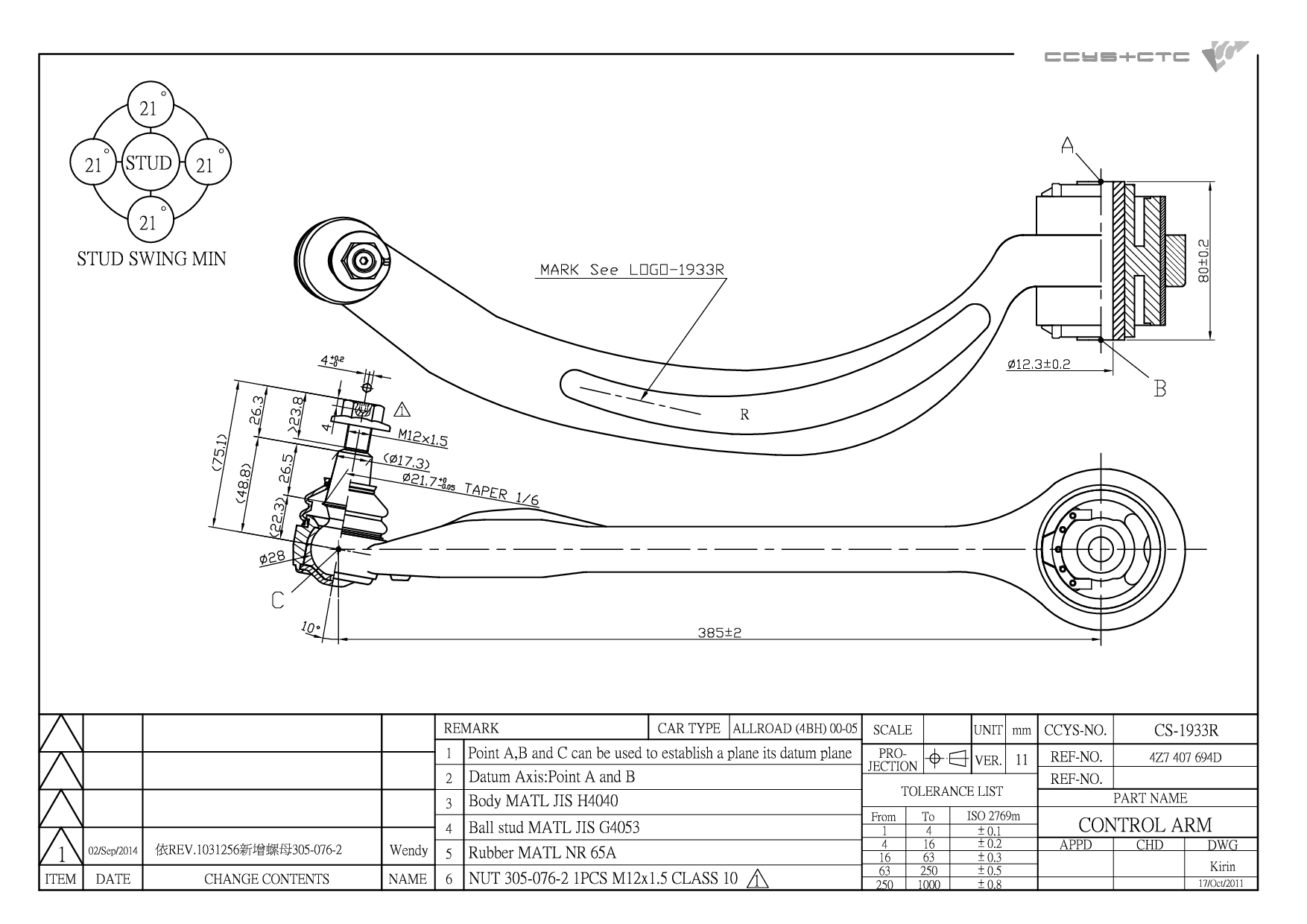

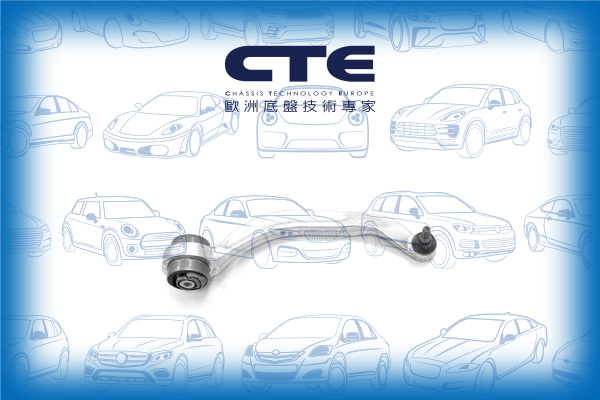

CS-1933R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 4Z7 407 694 / 4Z7 407 694C / 4Z7 407 694D |
| Length | 450 mm |
| Width | 138 mm |
| Height | 115 mm |
| Net Weight | 1.77 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19010 | FRONT LOWER ARM INNER | 4D0 407 183AA 4D0 407 183AB 4D0 407 183AC 4D0 407 183M 4D0 407 183N 4D0 407 183P 4D0 407 183Q 4E0 407 183A 4E0 407 183H 4F0 407 183C |
|
 |

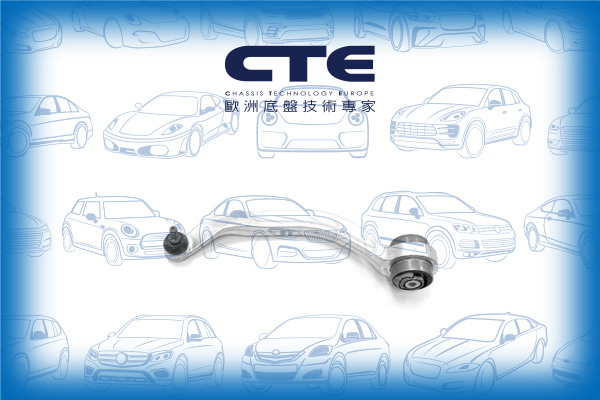

CS-1933L | FRONT LOWER LH | 4Z7 407 693 4Z7 407 693C 4Z7 407 693D |
|
 |
CS-1933R | FRONT LOWER RH | 4Z7 407 694 4Z7 407 694C 4Z7 407 694D |
|
 |
CSL19010 | FRONT (A= 90MM) | 4D0 411 317D 4D0 411 317K |
|
 |
CSL19010A | FRONT (A= 90MM) | 4D0 411 317D 4D0 411 317K |
|
 |
CTE19002 | FRONT AXLE LH/ RH (C= M14X1.5) | 4B0 419 811G 4B0 419 811Q 4D0 419 811J 4F0 419 811C 4F0 419 811D 4F0 498 811 4F0 498 811A 4F0 498 811A SK 8B0 419 811G 8E0 419 811 |
| Model (Year) |
|---|
|
ALLROAD C5 (4BH) |
