Name: CS-1921R
Brand: CTE
SKU: CS-1921R
Price: 2471.00 TWD
Availability: InStock

Control Arm/AUDI/AUDI (FAW)/SEAT/A4 B6 Convertible (8H7)/A4 B7 (8EC)/A4 B7 (8YC)/A4 B7 Avant (8ED)/A4 B7 Convertible (8HE)/EXEO (3R2)/EXEO ST (3R5)

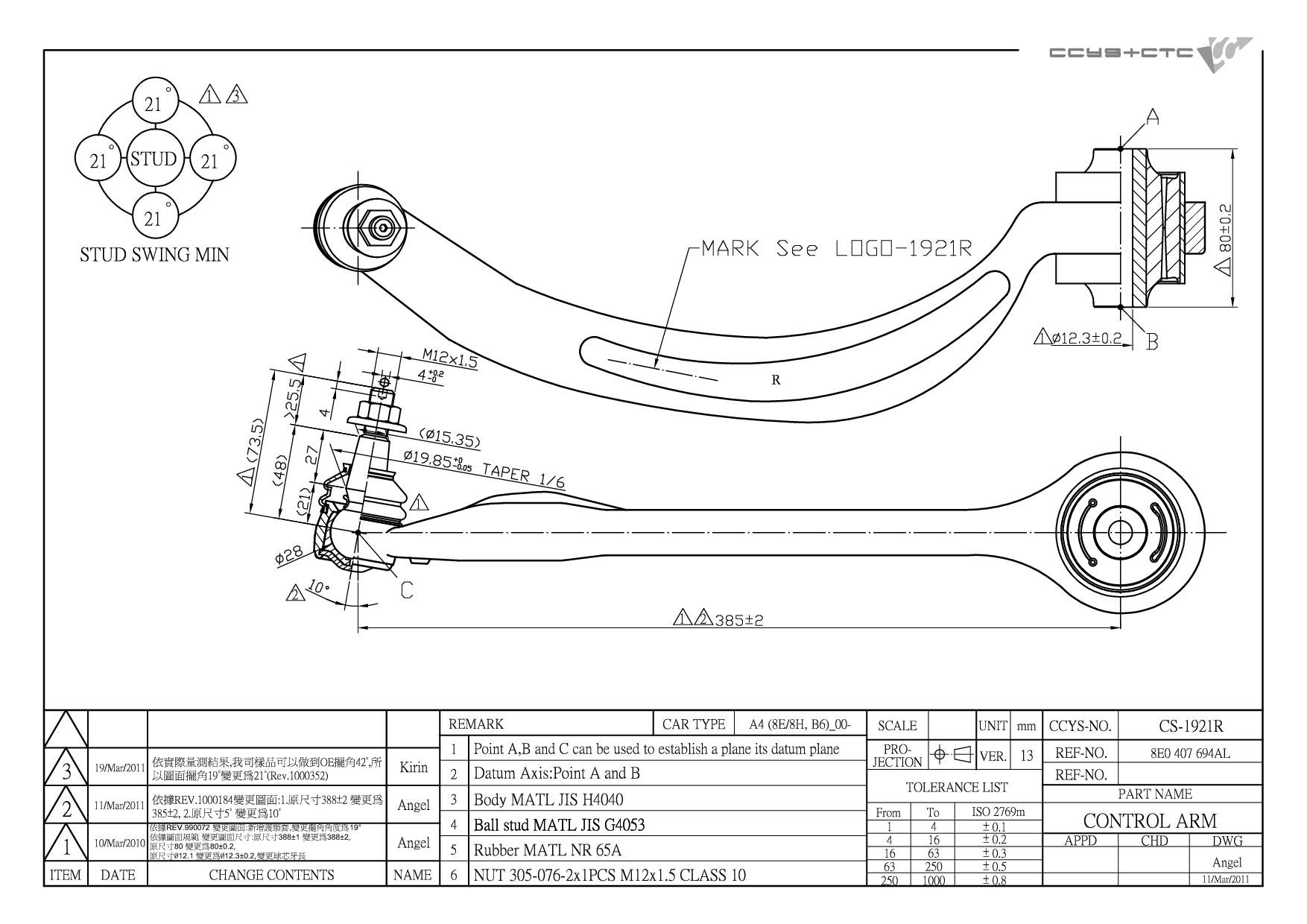

CS-1921R

Designation	Control Arm
Position	FRONT LOWER RH
OE No.	8E0 407 694AA 8E0 407 694AC 8E0 407 694AD 8E0 407 694AF 8E0 407 694AJ 8E0 407 694AK 8E0 407 694AL 8E0 407 694AM 8E0 407 694N 8E0 407 694T
Length	450 mm
Width	139 mm
Height	114 mm
Net Weight	1.63 kg

(8ED) S4 quattro Engine code BBK
(8HE) Replace in pairs only
(8HE) 3.2 FSI quattro Engine code AUK Replace in pairs only
(8HE) S4 quattro Engine code BBK Replace in pairs only

CTE No.	POSITION	OE NO.
CBH19017	FRONT LOWER ARM INNER	4F0 407 183A 4F0 407 183B 4F0 407 183C 4F0 407 183E
CS-1921L	FRONT LOWER LH	8E0 407 693AA 8E0 407 693AC 8E0 407 693AD 8E0 407 693AF 8E0 407 693AJ 8E0 407 693AK 8E0 407 693AL 8E0 407 693AM 8E0 407 693N 8E0 407 693T
CS-1921R	FRONT LOWER RH	8E0 407 694AA 8E0 407 694AC 8E0 407 694AD 8E0 407 694AF 8E0 407 694AJ 8E0 407 694AK 8E0 407 694AL 8E0 407 694AM 8E0 407 694N 8E0 407 694T
CS-1922L	FRONT UPPER LH	8D0 407 509 8D0 407 509A 8D0 407 509F 8E0 407 509C 8E0 407 509P
CS-1922R	FRONT UPPER RH	8D0 407 510 8D0 407 510A 8D0 407 510F 8E0 407 510C 8E0 407 510P
CS-1923L	FRONT UPPER LH	8D0 407 505D 8D0 407 505E 8D0 407 505L 8E0 407 505C 8E0 407 505M 8E0 407 505P
CS-1923R	FRONT UPPER RH	8D0 407 506D 8D0 407 506E 8D0 407 506L 8E0 407 506C 8E0 407 506M 8E0 407 506P
CS-1929	REAR AXLE LH/ RH	8E0 501 529F 8E0 501 529G 8E0 501 529K 8E0 501 529P
CSL19014L	FRONT LH (A= 90MM)	8E0 411 317
CSL19014LA	FRONT LH (A= 90MM)	8E0 411 317
CSL19014R	FRONT RH (A= 90MM)	8E0 411 318
CSL19014RA	FRONT RH (A= 90MM)	8E0 411 318
CTE19002	FRONT AXLE LH/ RH (C= M14X1.5)	4B0 419 811G 4B0 419 811Q 4D0 419 811J 4F0 419 811C 4F0 419 811D 4F0 498 811 4F0 498 811A 4F0 498 811A SK 8B0 419 811G 8E0 419 811
