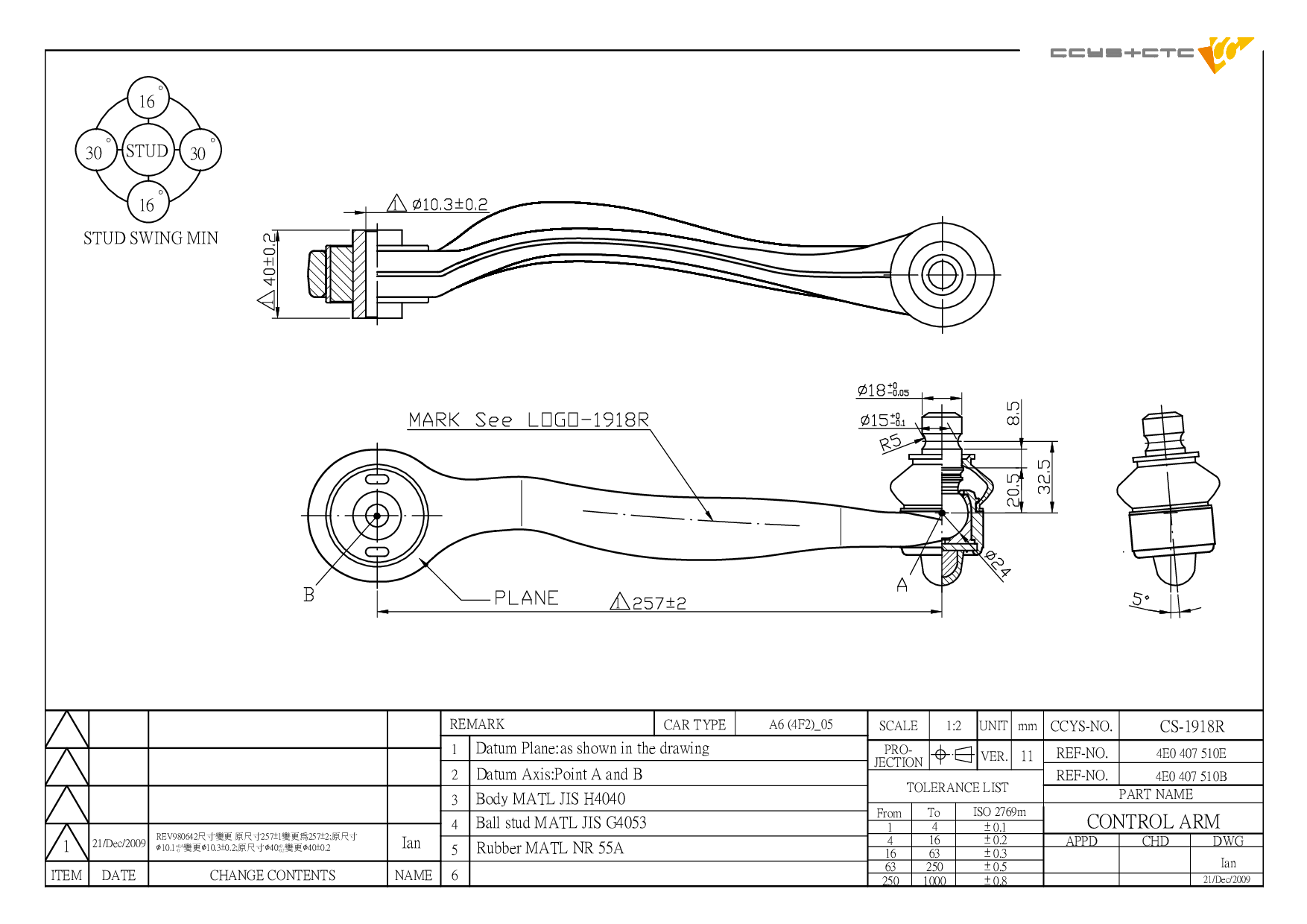

CS-1918R
| Designation | Control Arm |
| Position | FRONT UPPER RH |
| OE No. | 4E0 407 510B / 4E0 407 510E / 4E0 407 510G / 4E0 407 510K |
| Length | 311.8 mm |
| Width | 56.6 mm |
| Height | 78.6 mm |
| Net Weight | 0.63 kg |
AUDI A8 D3 (4E2, 4E8) VIN to 4E-4-012 700 or VIN from 4E-4-012-701
Engine Code BFM, BGK
Engine Code BFM, BGK
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19018 | FRONT UPPER ARM INNER | 8D0 407 151A 8D0 407 151B 8D0 407 151C 8D0 407 515A 8D0 407 515B 8D0 407 515C |
|
 |
CBH19019 | FRONT LOWER ARM INNER | 8K0 407 182A 8K0 407 182B |
|
 |
CBH19020 | FRONT LOWER ARM OUTER | 80A 407 181 |
|
 |
CS-1918L | FRONT UPPER LH | 4E0 407 509B 4E0 407 509E 4E0 407 509G 4E0 407 509K |
|
 |
CS-1918R | FRONT UPPER RH | 4E0 407 510B 4E0 407 510E 4E0 407 510G 4E0 407 510K |
|
 |
CS-1919L | FRONT UPPER LH | 4E0 407 505B 4E0 407 505D 4E0 407 505E 4E0 407 505F |
|
 |
CS-1919R | FRONT UPPER RH | 4E0 407 506B 4E0 407 506D 4E0 407 506E 4E0 407 506F |
|
 |
CSL19013 | FRONT | 4E0 411 317C 4E0 411 317D 4E0 411 317E 4E0 411 317F |
|
 |
CTE19001 | FRONT AXLE LH/ RH (C= M14X1.5) | 4D0 419 811A |
| Model (Year) |
|---|
|
A6 Allroad C6 (4FH) A6 C6 (4F2) | A6 / S6 A6 C6 Avant (4F5) A8 D3 (4E2, 4E8) | A8 / S8 | A8L |
| Model (Year) |
|---|
|
A6L C6 (4Z8) |
| Model (Year) |
|---|
|
PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) |
